DynoDrive 24v DC MRAT 90° diverter module for mid-heavy loads – Itoh Denki

Features, Benefits & Uses

Features & Benefits

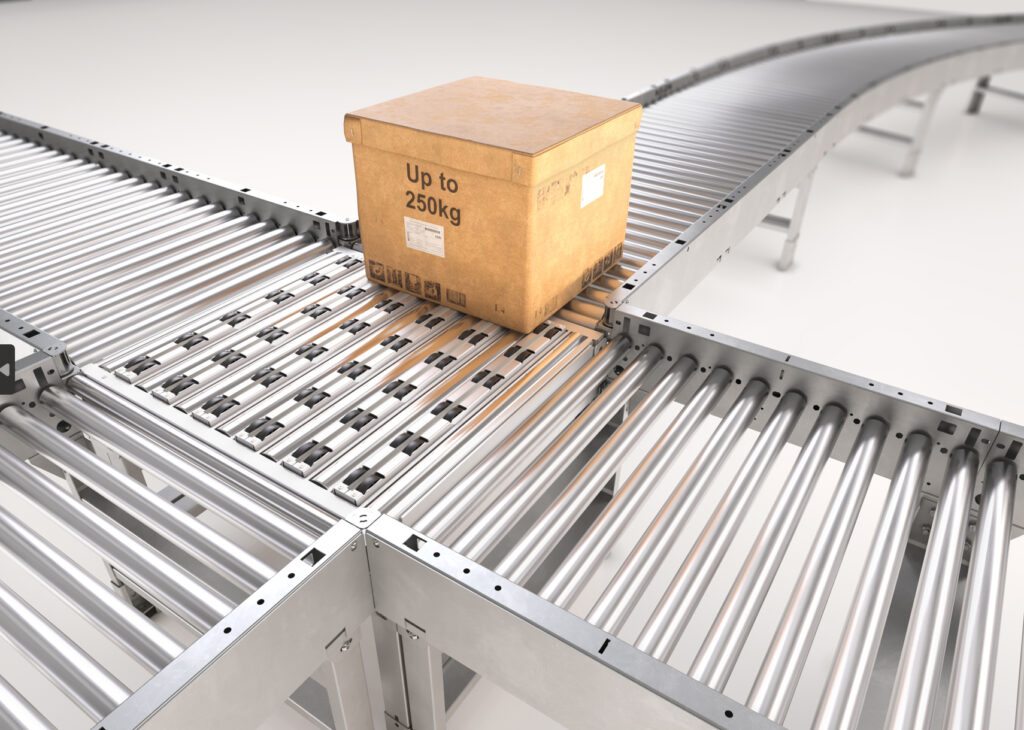

• High Capacity Diverting Designed to smoothly divert unit loads up to 250 kg. This allows for the smooth diverting of heavy products and out of range items in assembly lines and logistic processes.

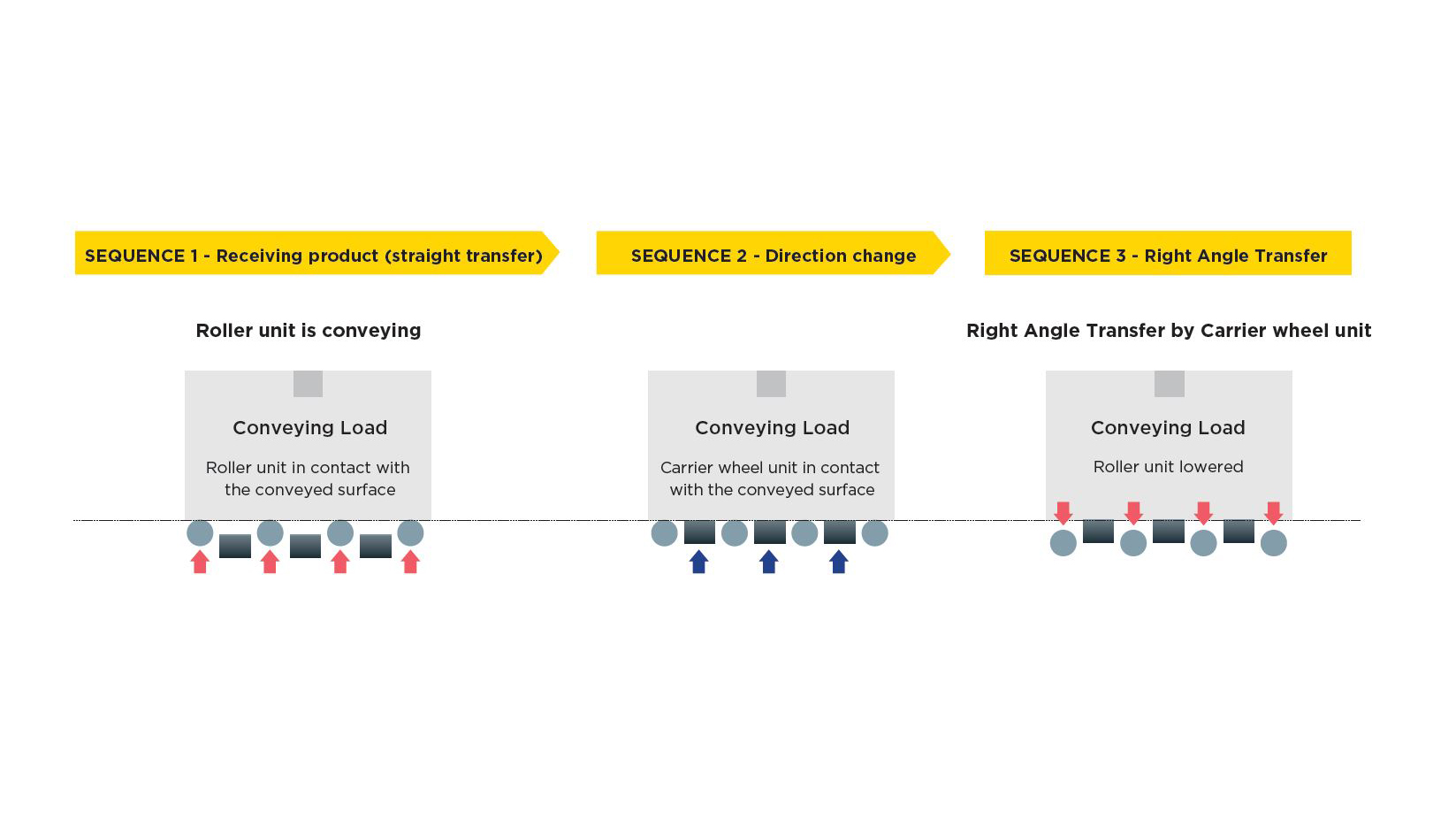

• Flat Transfer Technology Utilises a multidirectional flat transfer sequence that ensures a smooth and secure transfer with no lifting and no vibrations.
• Versatile Routing Offers up to four reversible entries and exits all on the same level, with the possibility of quick reassignments. It can serve up to three exits.

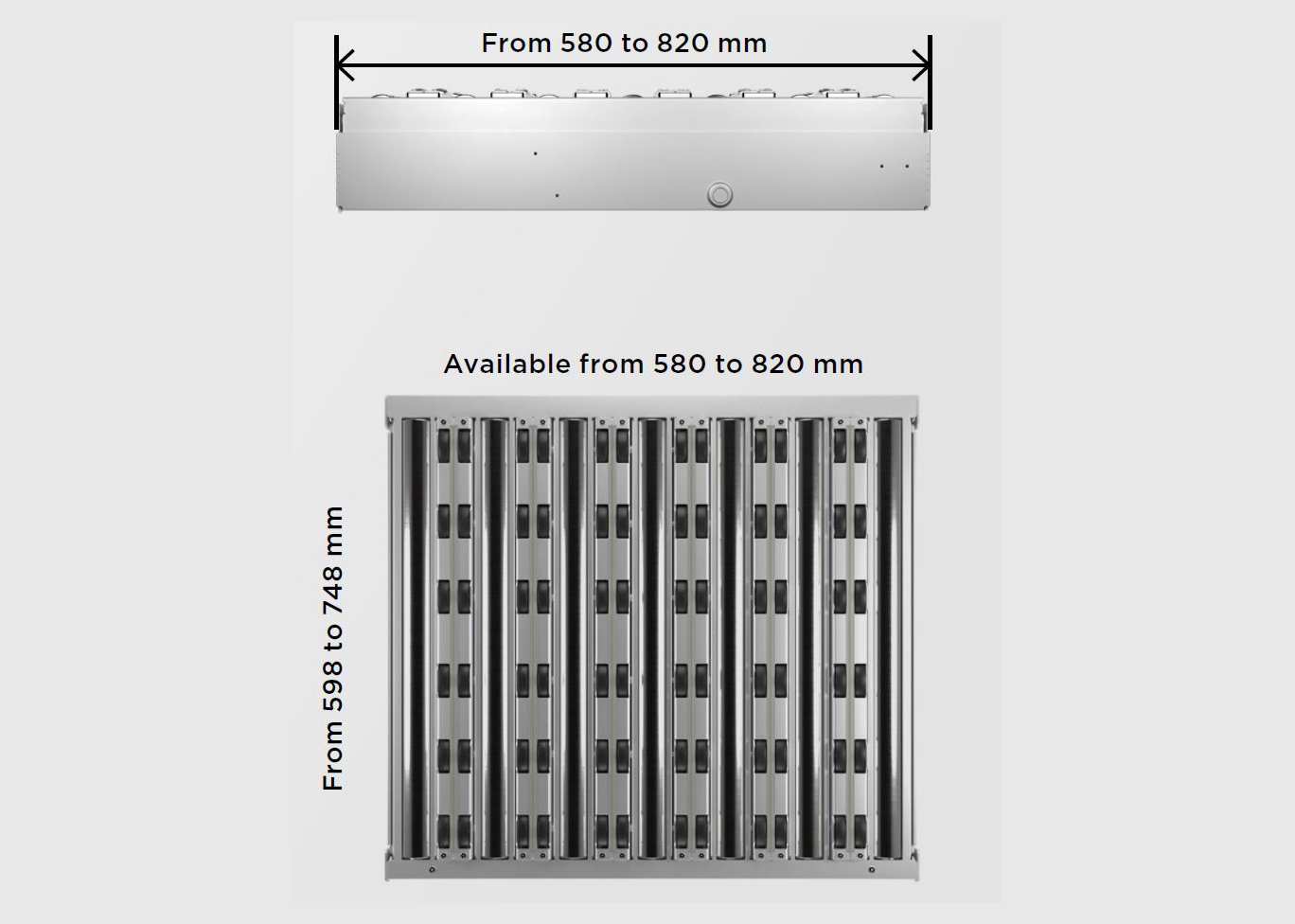

• Compact Design The compact cassette structure allows simple integration into any type of new or repurposed conveyor, even in multi-level layout.
• Intelligent and Safe Operation
  • Fully powered by 24V DC, eliminating the need for pneumatics. This results in low energy consumption.
  • User safety is enhanced as spacing between moving parts on the surface is lower than 5 mm, drastically reducing risks of injury for operators.
  • Can be controlled by Profinet and Ethernet/IP, in addition to conventional PLC control.
• Suitable for Cold Environments Operates in low temperatures, down to -30°C (depending on load specification).

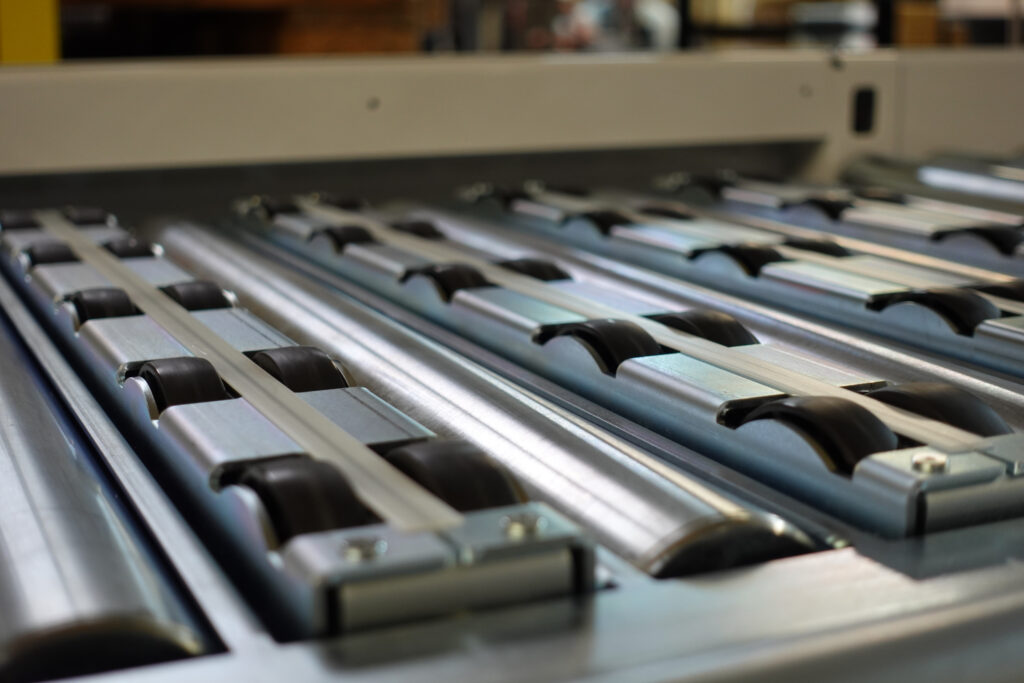

• Easy Maintenance Features a durable structure with full metal rollers and enduring PU wheels. Key components like wheel caster cassettes, rollers, and belts offer quick replacement.

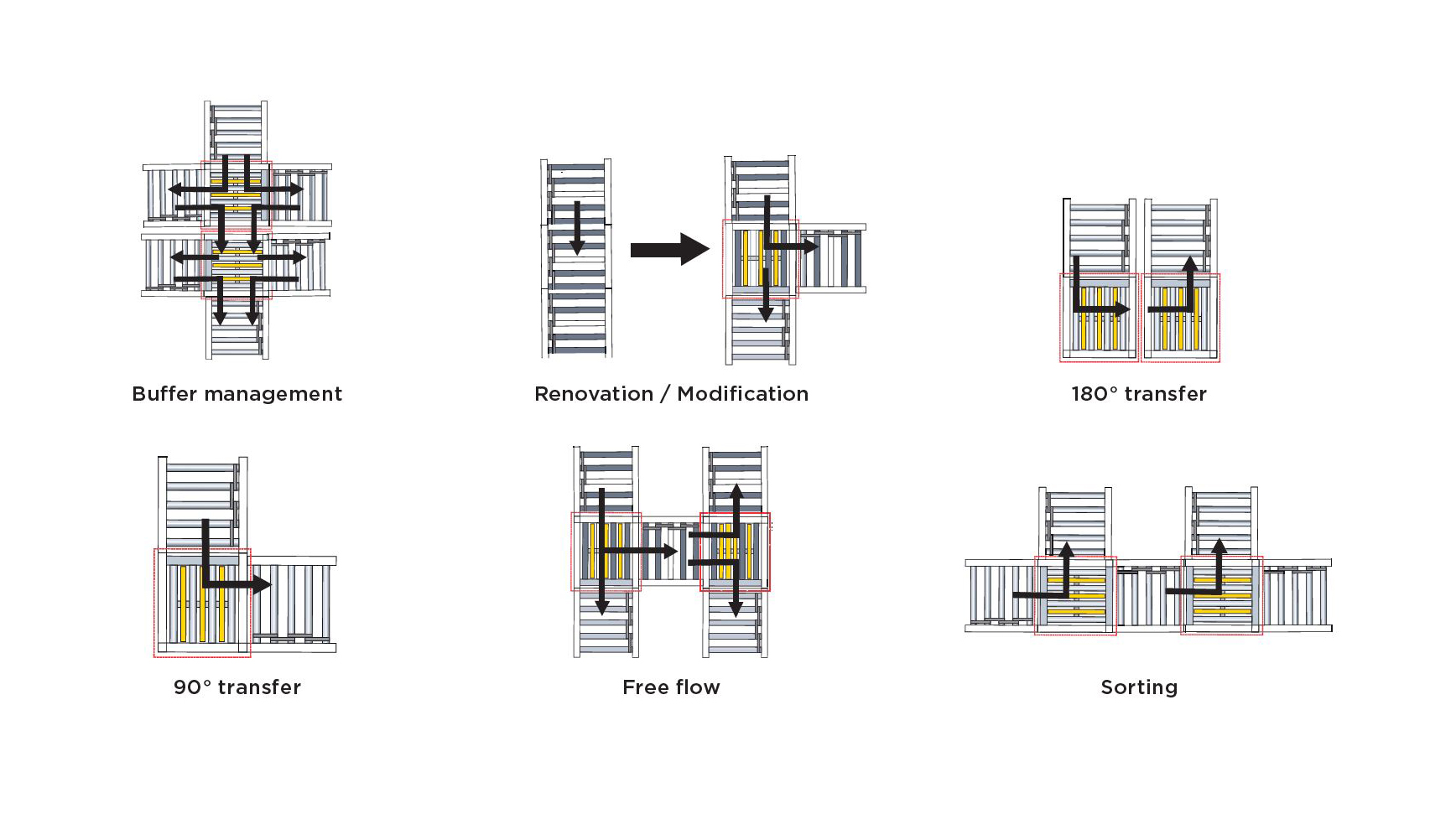

Uses

• Sorting.
• Buffer management.
• 90° transfer.
• 180° transfer (by combining several MRAT units for advanced sorting or sequencing systems).
• Free flow applications.
• Renovation / Modification of existing conveyor lines.
• Smooth diverting of heavy totes, parcels, and manufacturing parts.
