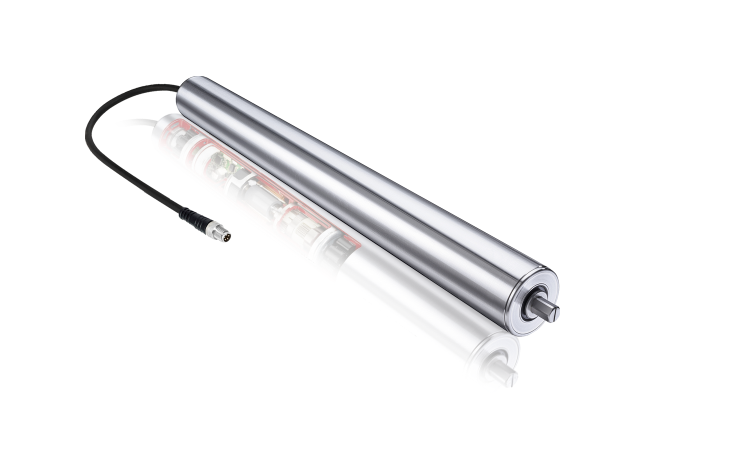

60.5mm PM605XP 24VDC Motor Driven Roller with internal controller

The PM605XP series is designed for conveying light and medium loads (up to 500kg for the conveyor), making it ideal for order preparation, distribution, and assembly lines. It is specifically engineered to provide very high starting power, a critical requirement for automatic shops utilising shuttles and trolleys. The circuit board is integrated within the roller body, allowing for simple installation, easy wiring thanks to the M8 connector, and better protection of both the roller and the controller. This makes the PM605XP an ideal solution for difficult work environments involving dust or liquids. It can be easily controlled with a PLC, AS-i Bus via Bihl & Wiedemann modules, or logic sensors with integrated ZPA from Wenglor.

✓ High Starting Power. Designed to deliver the substantial torque needed to start heavy loads, shuttles, and transfer cars from a standstill.

✓ Integrated Intelligence. The internal controller eliminates the need for external drive cards, saving cabinet space and simplifying the electrical layout.

✓ Environmental Robustness. The enclosed 60.5mm design offers superior protection against dust and liquid ingress (IP54 standard, IP65 available), ensuring reliability in harsh conditions.

Dyno Conveyors is a proud partner and exclusive distributor of Itoh Denki, the Japanese world-leading specialist in motorised drive roller (MDR) based material handling technologies.
