MarketSafe™ Sanitising Tunnel

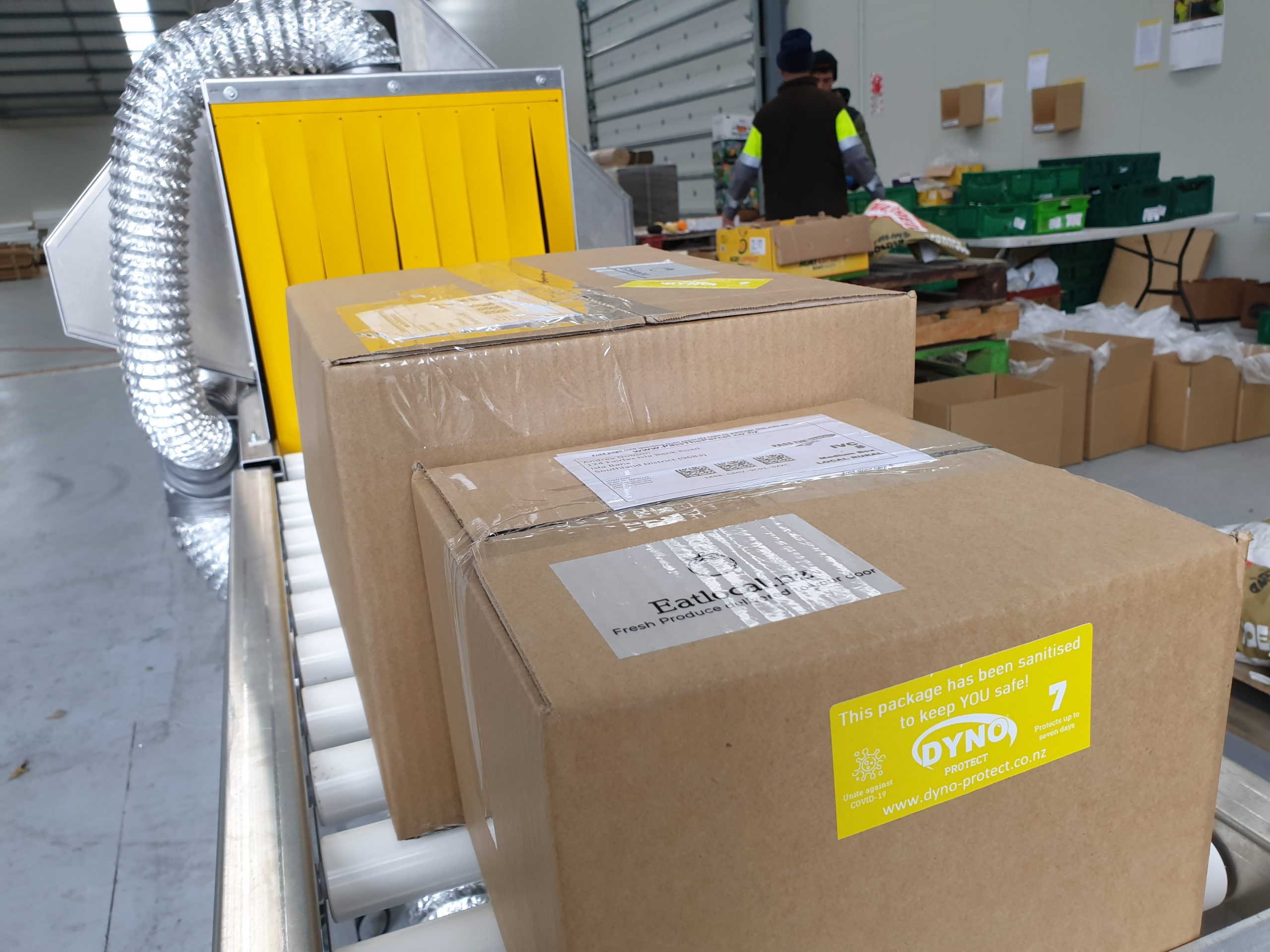

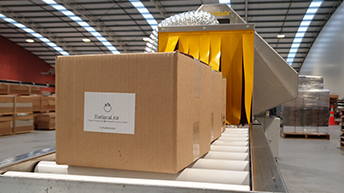

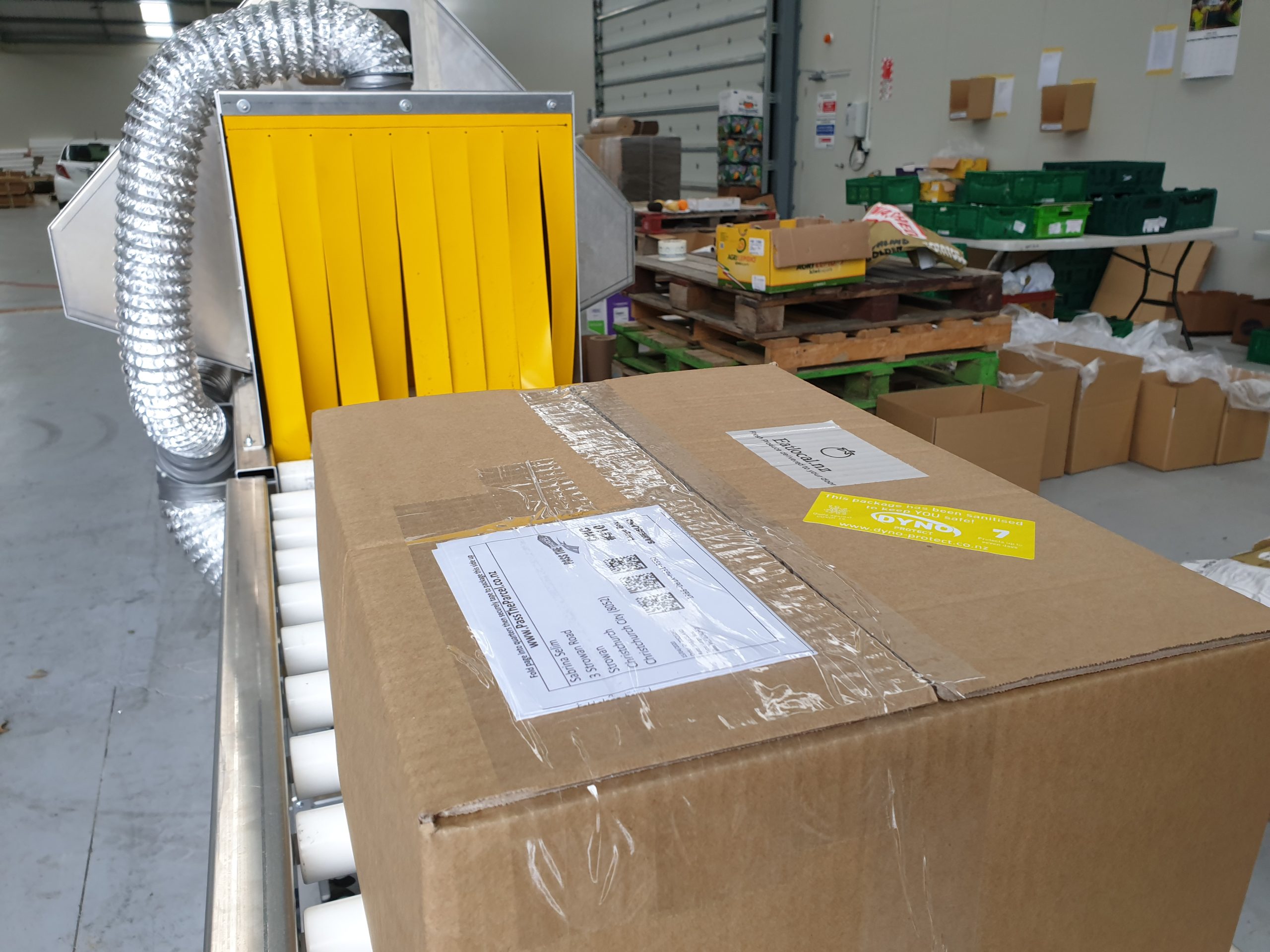

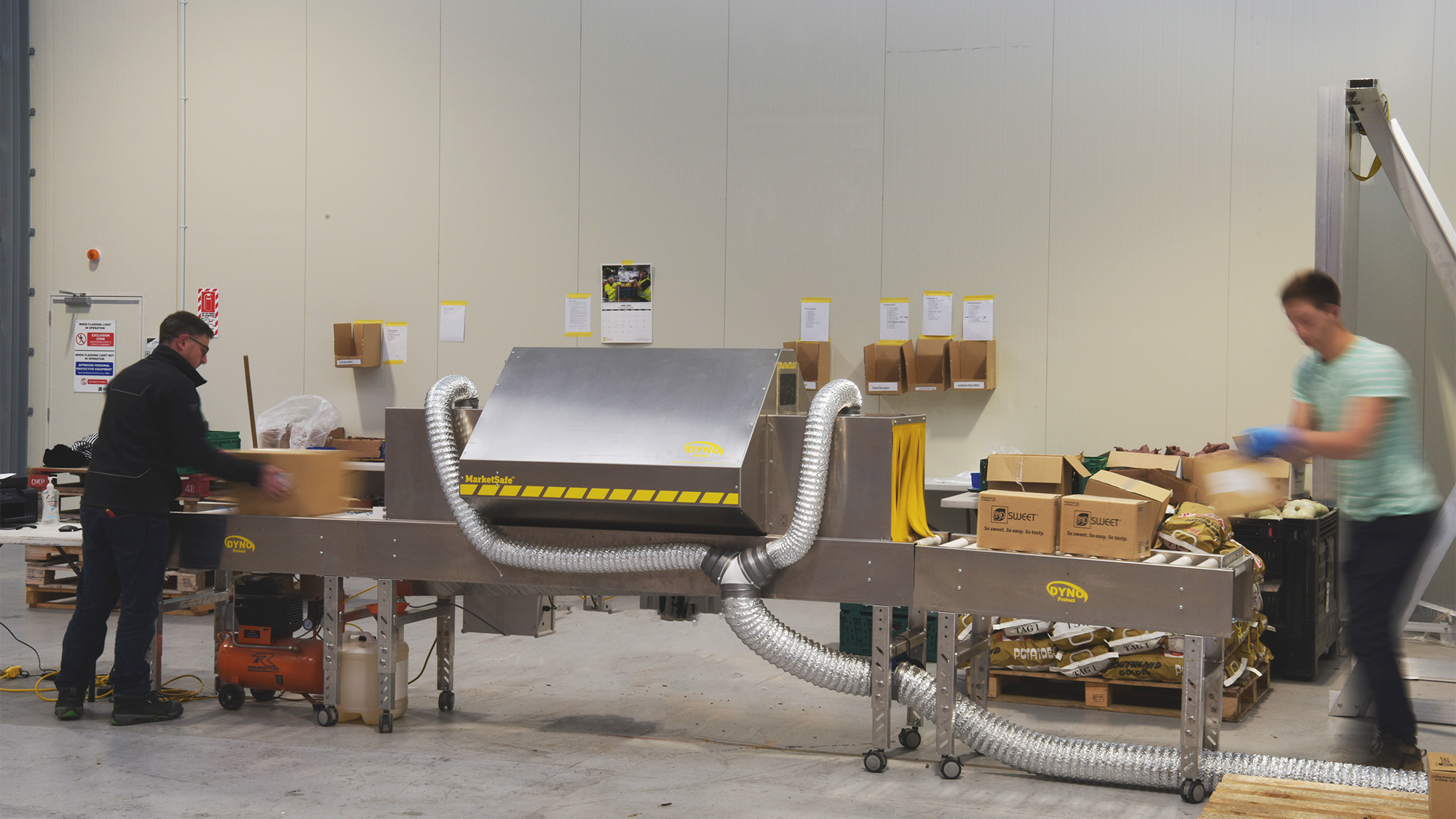

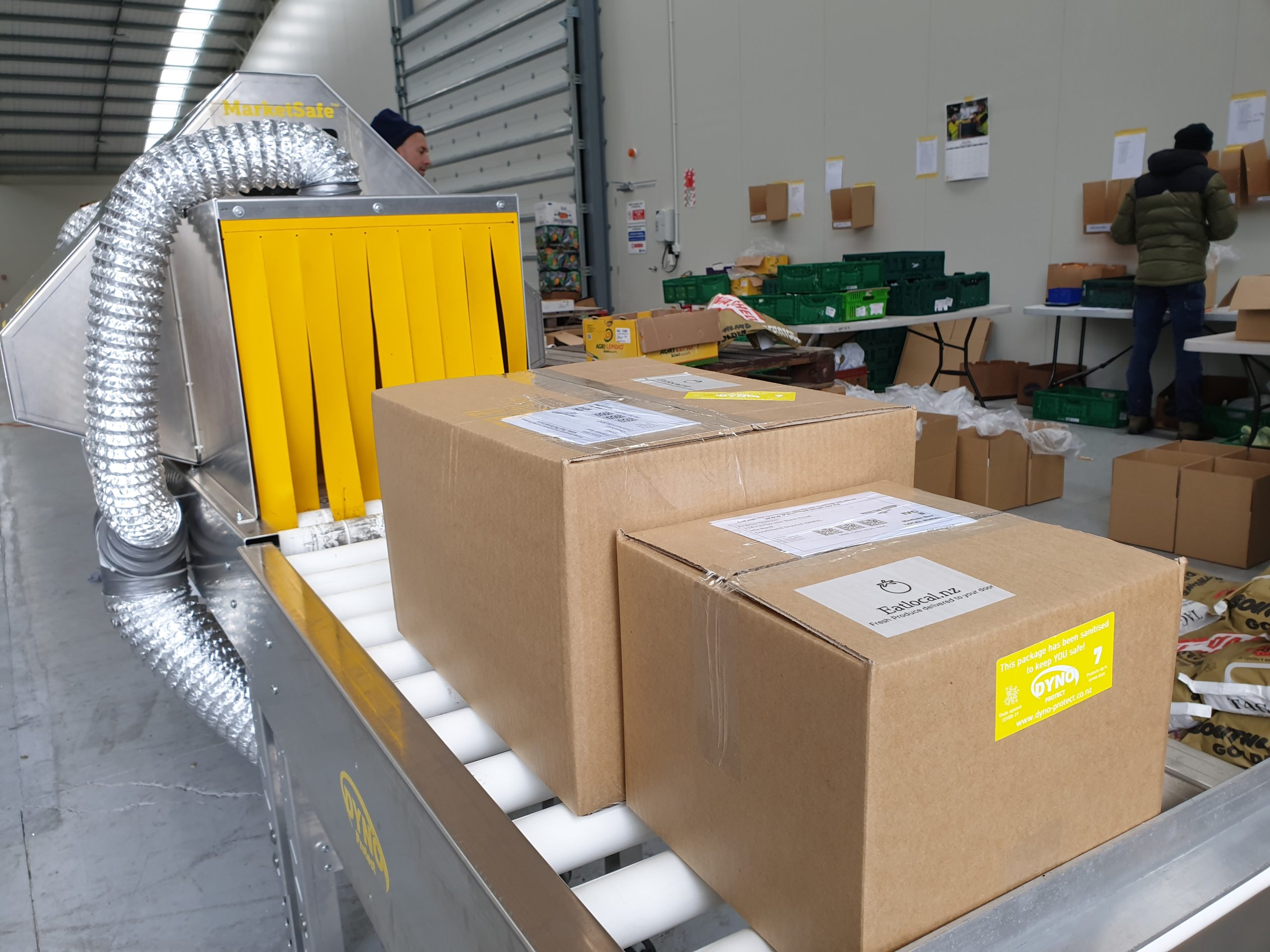

Remove the risk and fear of deliveries to you and your customers and further protect with the MarketSafe™ Sanitiser Tunnel. An innovative design, as a direct response to the COVID-19 crisis, the tunnel will continuously disinfect cartons before they are dispatched or stored. Providing safer work environments and further protecting fellow New Zealanders.

Request a Quote

"*" indicates required fields

Comments

This field is for validation purposes and should be left unchanged.

First name*

Last name*

Email*

Phone*

Company name*

Job title*

Country*

City*

Industry*

Products

Product

Quantity

Notes

Message

Images (if applicable)

Drop files here or

Accepted file types: png, jpg, jpeg, heic, Max. file size: 25 MB, Max. files: 3.

CAPTCHA

Brand: Dyno

Features, Benefits & Uses

Features & Benefits

• Safe To Operate – easily operate with push button controls and contained sanitisation.
• Maintain Product Integrity – special application process ensures no damage to cartons or product.
• Versatile – mobile system that can be added to any existing conveyor systems or hand fed.
• Residual Action – sanitiser continues to kill viruses and bugs up to 7 days after application which means it will still work during transport and supply chain touch points.
• Fast – can continuously sanitise up to 60 cartons per minute.
• Proven – sanitiser used is hospital grade and approved for use against COVID-19*. It is also commonly used in NZ in the Food Industry, and more recently with the NZ Police to sanitise their vehicles.
• Quick Set-up – single phase plug and play simplicity.

*https://www.epa.gov/pesticide-registration/list-n-disinfectants-use-against-sars-cov-2

Specifications

Tunnel Dimensions
2.4m long x 1.1m wide x 1.5m high
Conveyor height adjustable from 850mm top of roller.

Product Dimensions
Width: up to 460mm
Height: 20mm to 460mm
Length: from 300mm

Capacity
Adjustable up to 60 cartons per minute at 600mm long

Electrical Supply
Single Phase 240 V – 10 Amp

Compressed Air Supply Required
Depending on product column (approx.)
100 per hour = 4L/min
500 per hour = 18L/min
1000-1500 per hour = 40L/min
2500-3000 per hour = 70L/min

Extraction Fan
Single Phase
150mm Diameter
Needs to be ducted to outside building

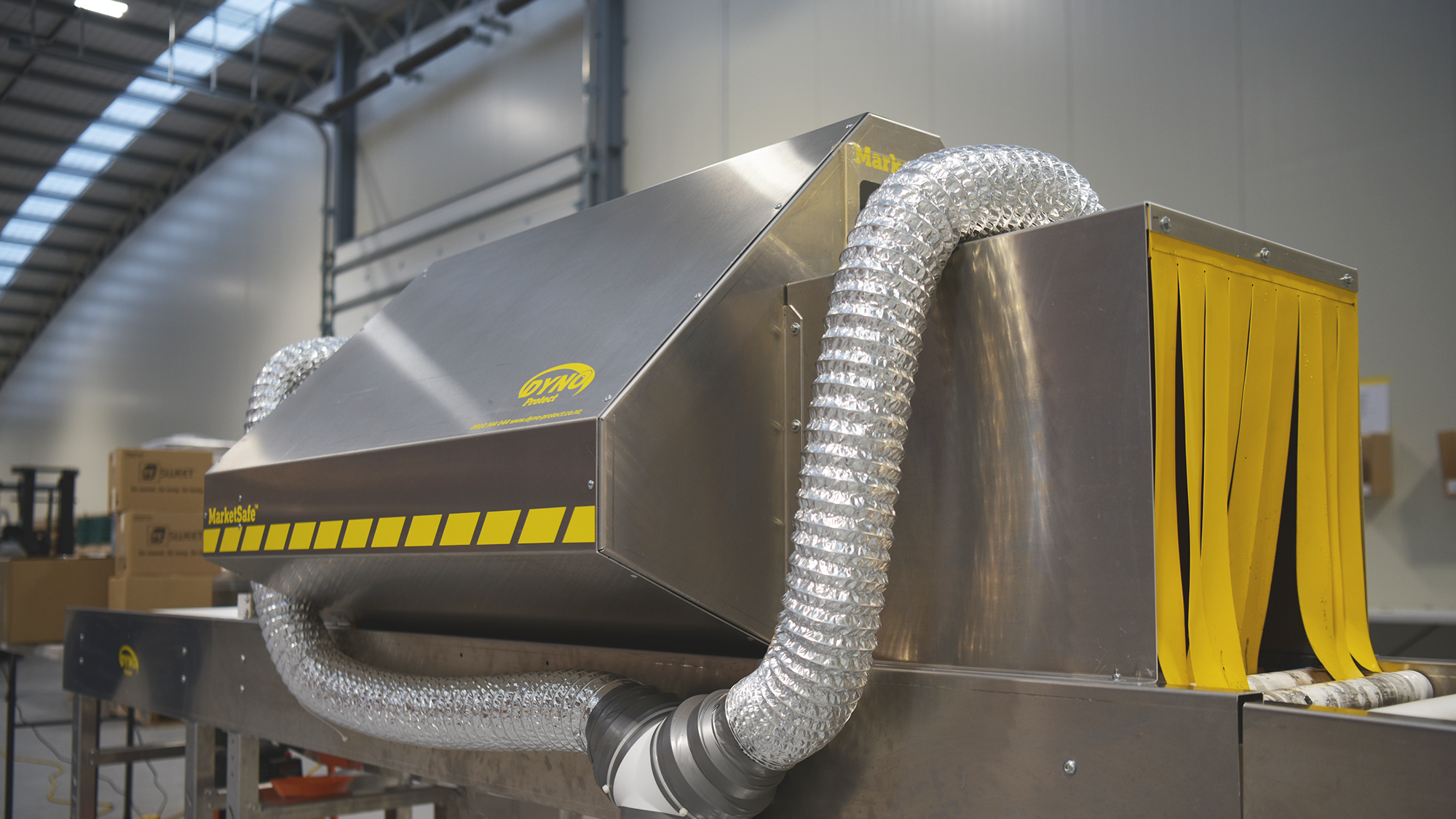

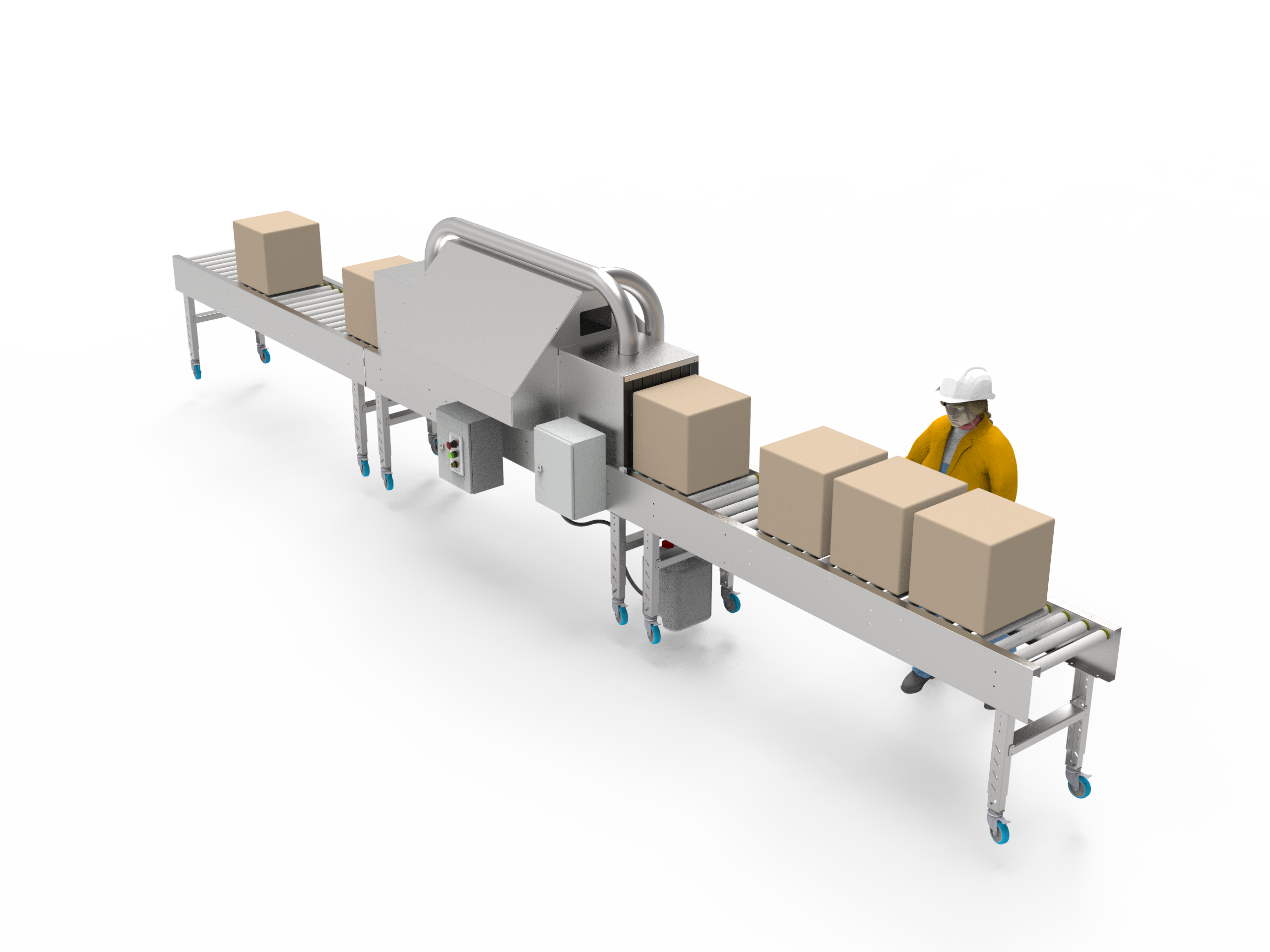

Standard Tunnel
• Aluminum Construction
• Two 24v DynoDrives
• 60mm Lockable Castor Wheels
• PVC Rollers with combination of S/S precision and acetal race bearings
• Single Phase Extraction Fan with 12m of 150mm duct (extra available to suit site requirements)

Recommended Extras
• 1.2m DynoDrive Powered Roller Infeed
• 1.2m Gravity Roller Outfeed

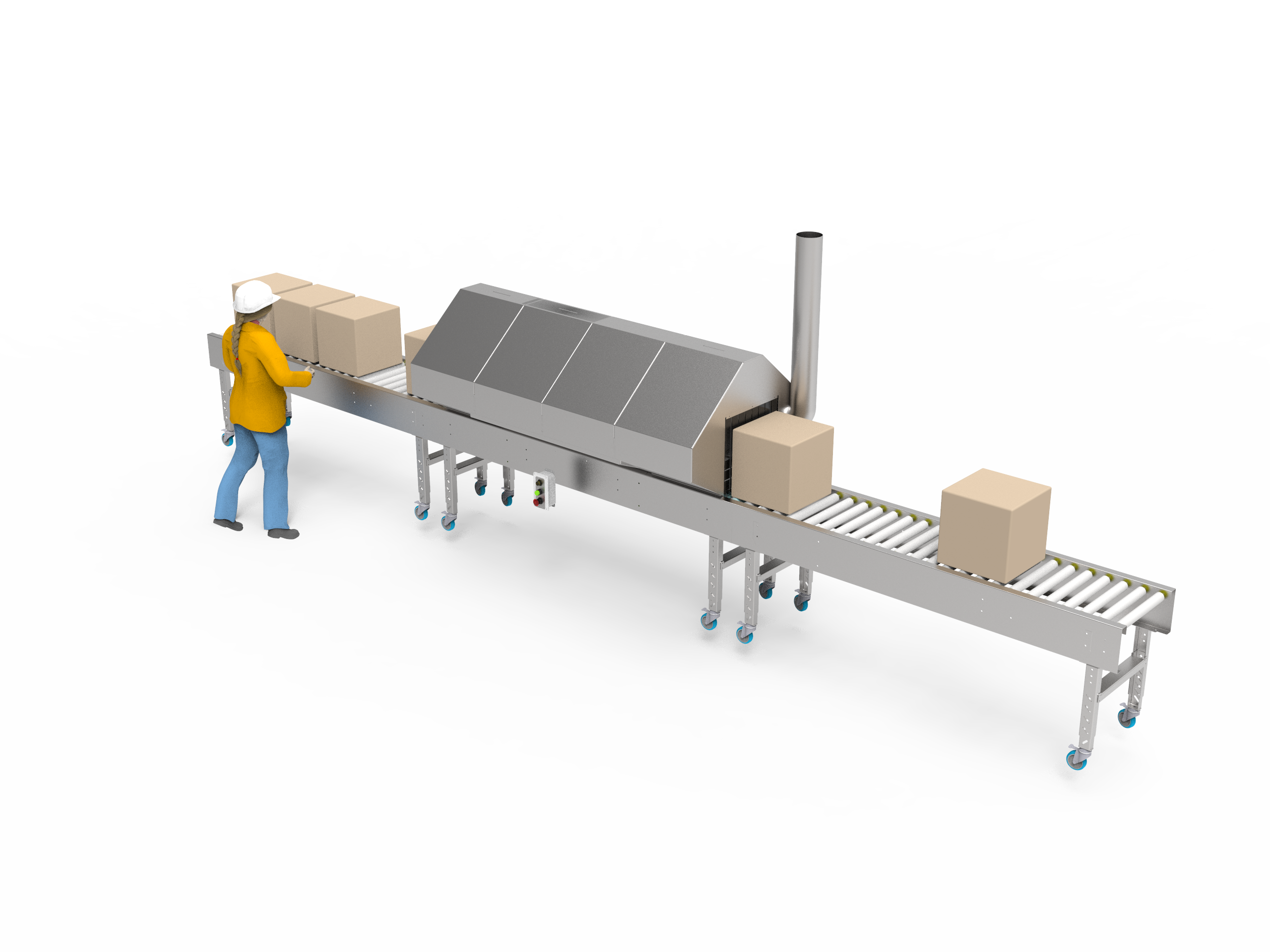

Premium Tunnel
• Robust design for high throughput and industrial applications
• Stainless Steel Construction
• Three Waterproof 24v DynoDrive
• 100mm Lockable Castor Wheels
• PVC Rollers with S/S Precision Bearings
• Single Phase Extraction Fan with 12m of 150mm duct (extra available to suit site requirements)

Recommended Extras
• 2.4m Tranzband Variable Speed Accumulating Powered Roller Conveyor.
• 2.4m Gravity Roller Conveyor Outfeed with driven section at start to pull product from tunnel.
