ZoneLogix Connector Controls for DynoDrive One 24v Brushless External Motor

The DynoDrive ZoneLogix® series offers a comprehensive range of intelligent control modules designed specifically to command the DynoDrive 24V External Motor (pancake-style). From simple, cost-effective Zero Pressure Accumulation (ZPA) logic to fully networked EtherNet/IP systems, this modular control platform ensures your conveyor operates with maximum efficiency and minimal programming. Whether you require a standalone "plug-and-play" solution or high-level integration with PLCs and Warehouse Management Systems, the ZoneLogix range provides the precise level of intelligence your facility demands.

✓ Intelligent Control: Built-in logic for Zero Pressure Accumulation (ZPA), Slug, and ZIP modes ensures smooth product flow without complex external programming.

✓ Scalable Architecture: Options range from the cost-effective ZoneLogix M-1 for lighter loads to the ZoneLogix PRO 2.0 for full network visibility and control.

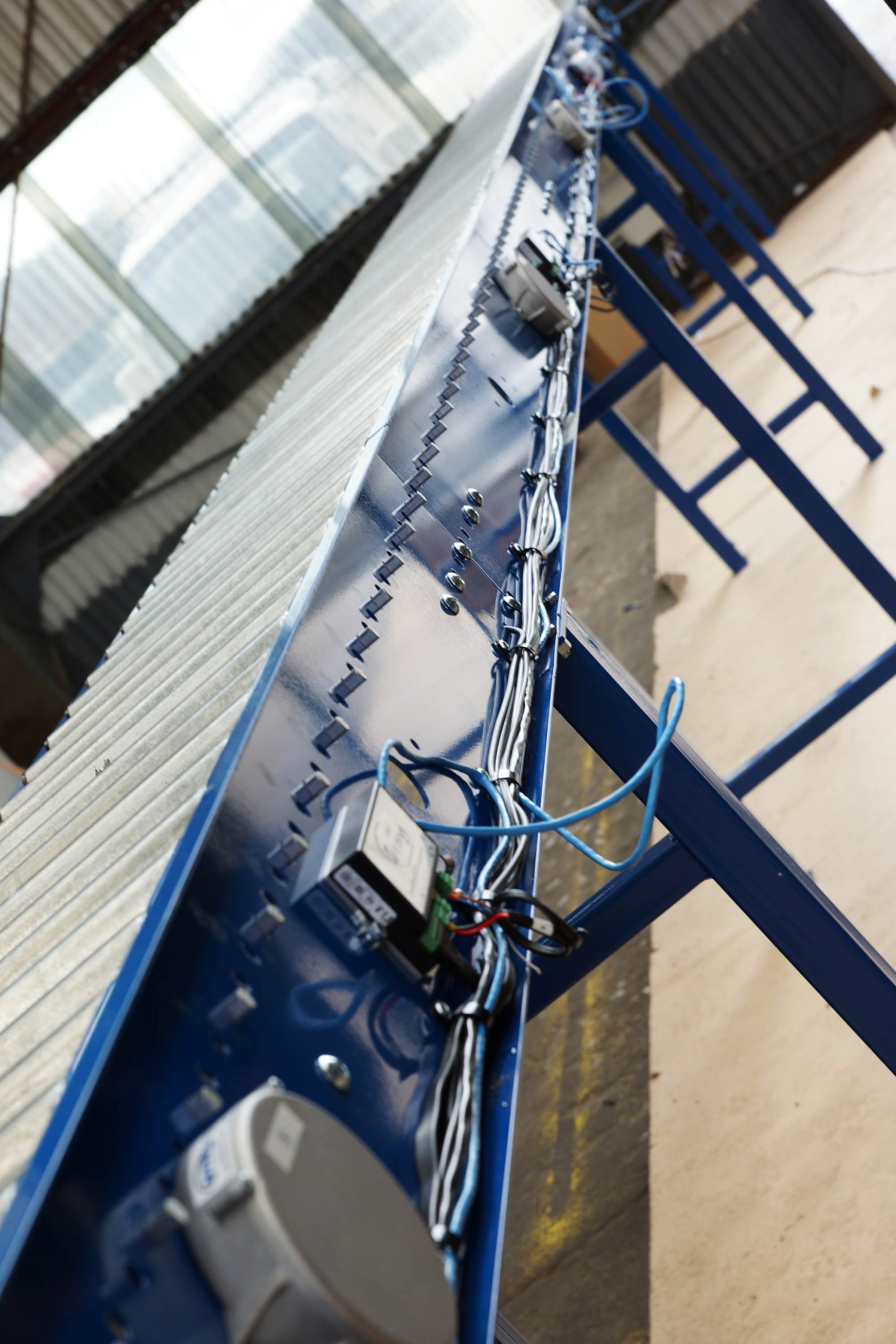

✓ Plug-and-Play: Designed for flush-fit mounting in most side rails with simplified two-screw installation.

Connector Controls available (plug style):

DynoDrive ZoneLogix® PRO 2.0 - Network Controller
DynoDrive ZoneLogix® PRO Monitor Gateway - Ethernet IP
DynoDrive ZoneLogix® Plus
DynoDrive ZoneLogix®
DynoDrive ZoneLogix® UL
DynoDrive ZoneLogix® M-1

Check the DynoDrive One 24v Brushless External Motor product page for more information about the motor.

Request a Quote

"*" indicates required fields

Name

This field is for validation purposes and should be left unchanged.

First name*

Last name*

Email*

Phone*

Company name*

Job title*

Country*

City*

Industry*

Products

Product

Quantity

Notes

Message

Images (if applicable)

Drop files here or

Accepted file types: png, jpg, jpeg, heic, Max. file size: 25 MB, Max. files: 3.

CAPTCHA

Brand: Dyno

Features, Benefits & Uses

Features & Benefits

Versatile Operating Modes: Most units feature multiple handling modes including ZPA (no-impact), ZIP (small gap for high throughput), and Slug accumulation.
Network Connectivity: The ZoneLogix PRO 2.0 combines motor control with a networked intelligent zone controller, offering a PLC interface via fieldbus.
High Power Capability: The ZoneLogix Plus is perfectly matched for higher power requirements, supporting 48W, 60W, 80W, and 100W output models, making it ideal for pallet handling or industrial applications.
Advanced Diagnostics: When paired with the Branch Monitor, users gain access to advanced configuration, fault detection, and package tracking capabilities.
UL Certified Safety: The ZoneLogix UL offers the same robust ZPA logic with the assurance of UL Listing for compliant facilities.
Simple Speed Control: Many units offer analogue input for external speed control.

Uses

Automated warehousing and distribution centres.
High-throughput e-commerce sorting lines.
Heavy-duty pallet handling (using ZoneLogix Plus).
Workstations requiring foot-switch control or hold functions.

Specifications

The DynoDrive ZoneLogix controllers are robust smart devices operating on a nominal 24V DC power supply (PELV required).

Protection: Over-voltage, under-voltage, stalled motor, and over-temperature protection
Mounting: Flush-fit in most side rails
Logic: Zero Pressure Accumulation (ZPA) standard on all drive controllers

Model (Plug Style)	Primary Function & Ideal Load	Max Motor Output (Approx.)	Network Integration
ZoneLogix® PRO 2.0	All-in-one Network Controller (Full PLC Interface)	Up to 120W	EtherNet/IP or Profinet Fieldbus ready (Advanced Mode)
ZoneLogix® PRO Monitor Gateway	System Configuration & Network Visibility Hub	N/A (Interface Unit)	EtherNet/IP, Provides Monitoring and Configuration Access
ZoneLogix® Plus	High-Capacity Control (Supports heavy industrial loads/PowerCube)	Up to 100W	Basic Mode (Discrete I/O)
ZoneLogix® UL	Standard Smart Control (UL Listed)	Up to 60W	Basic Mode (Discrete I/O)
ZoneLogix®	Cost-Effective ZPA Control (Standard UniDrive)	Up to 60W	Basic Mode (Discrete I/O)
ZoneLogix® M-1	Compact Control (Lighter Duty)	Up to 30W	Basic Mode (Discrete I/O)
