Chain Sprocket Roller ZMW14D Double Row (weld in)

Sprockets available:
- SP6 Acetal
- SP10
- Z11S
- Z14S
- Z14D
- MZ14D

Adaptors:
- AD60
- AD89

DR-F/L Drive Rings

Request a Quote

"*" indicates required fields

First name*

Last name*

Email*

Phone

Company name*

Job title*

Country*

City*

Industry*

Products

Product

Quantity

Notes

Message

Images (if applicable)

Drop files here or

Accepted file types: png, jpg, jpeg, heic, Max. file size: 25 MB, Max. files: 3.

Phone

This field is for validation purposes and should be left unchanged.

Features, Benefits & Uses

Specifications

ZMW14D Double Row (weld in)

ZMW14D 50mm Sprocket
Weld in
14 Hardened Teeth
Double Row
1/2” Pitch
Zinc plated steel body. 6202Z bearing
Tube Sizes Ø50 x 1.5mm Galvanised Steel Tube
Bore Diameters
Ø8mm
Ø10mm
Ali Q/D
11mm Hex
Ø12mm
Part Numbers 107-ZMW14D-50
Options Stainless Steel Precision Bearing (SS)

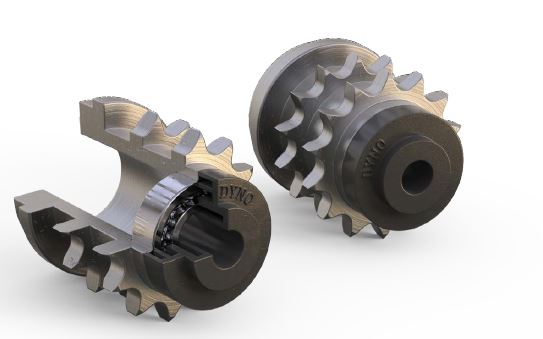

ZMW14D 60mm Sprocket
Weld in
14 Hardened Teeth
Double Row
1/2” Pitch
Materials Zinc plated steel body. 6202Z bearing
Tube Sizes Ø60 x 2.3mm Galvanised Steel Tube
Bore Diameters
Ø8mm
Ø10mm
Ali Q/D
11mm Hex
Ø12mm
Part Numbers 107-ZMW14D-60
Options Stainless Steel Precision Bearing (SS)

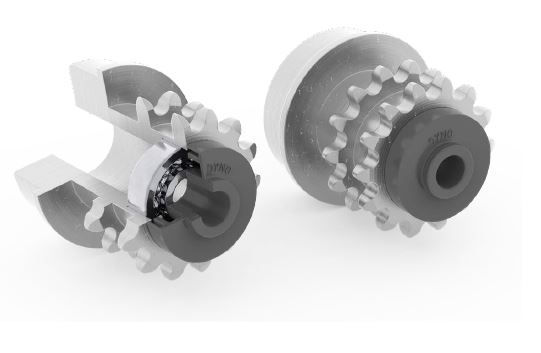

ZHMW14D 89mm Sprocket
Weld in
14 Hardened Teeth
Double Row
5/8” Pitch
Materials Zinc plated steel body. 6204RS bearing
Tube Sizes Ø89 x 3.2mm Galvanised Steel Tube
Bore Diameters
Ø12mm
Ø16mm
Ø20mm
Part Numbers SP28
Options Stainless Steel Precision Bearing (SS)

DR-F/L Drive Ring Details

• Fixed (F) black nylon.
• Loose (L) black acetal. (For Accumulation)
• Suits;
– 50 x 2.8 Dynopipe
– 50 x 1.6 tube – Galv. steel
– Aluminium
– 50.8 x 1.85 – Galv. steel
– 50.8 x 2 – S/S
– 60mm adaptors
– 89mm adaptors

	Fixed 2.8	Loose 2.8	Fixed 1.5	Loose 1.5
A	44.7mm	44.6mm	47.25mm	47.2mm
B	39.3mm	40.6mm	39.4mm	40.6mm
C	42.5mm	44.6mm	42.6mm	44.6mm
D	50mm	49.7mm	50mm	50mm
E	25.2mm	25.2mm	25.2mm	25.2mm
F	5mm	5mm	5mm	5mm
