Telescopic & Expandable Conveyors

Xpandaroll | Telescopic & Expandable Conveyors

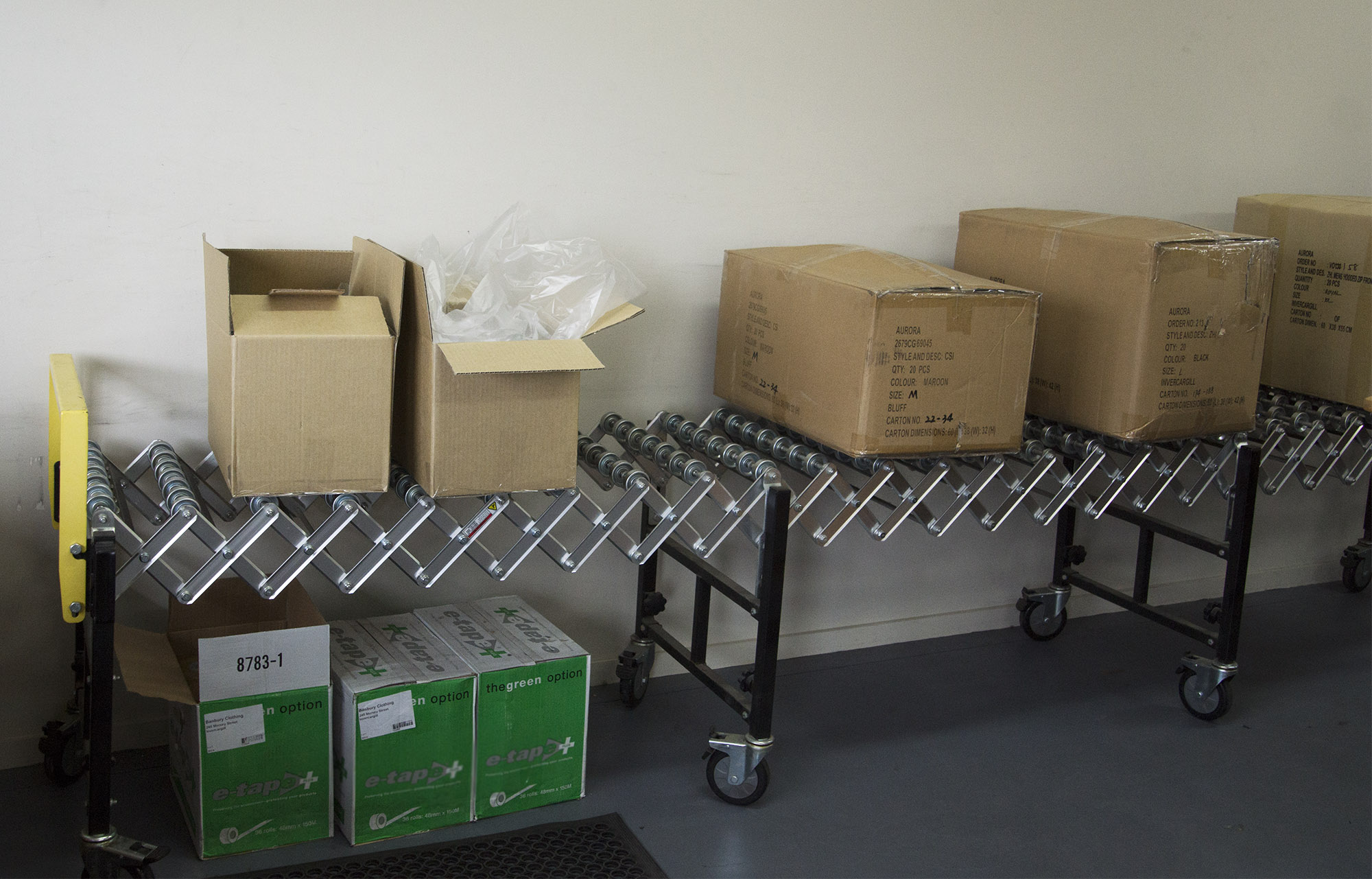

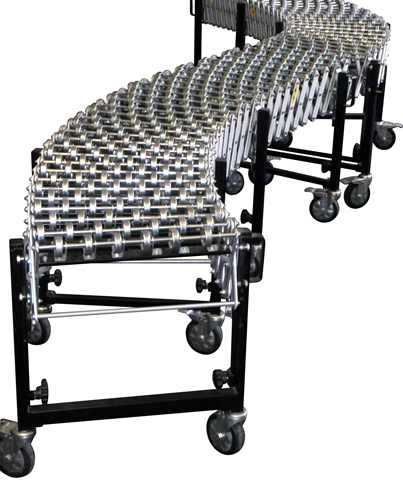

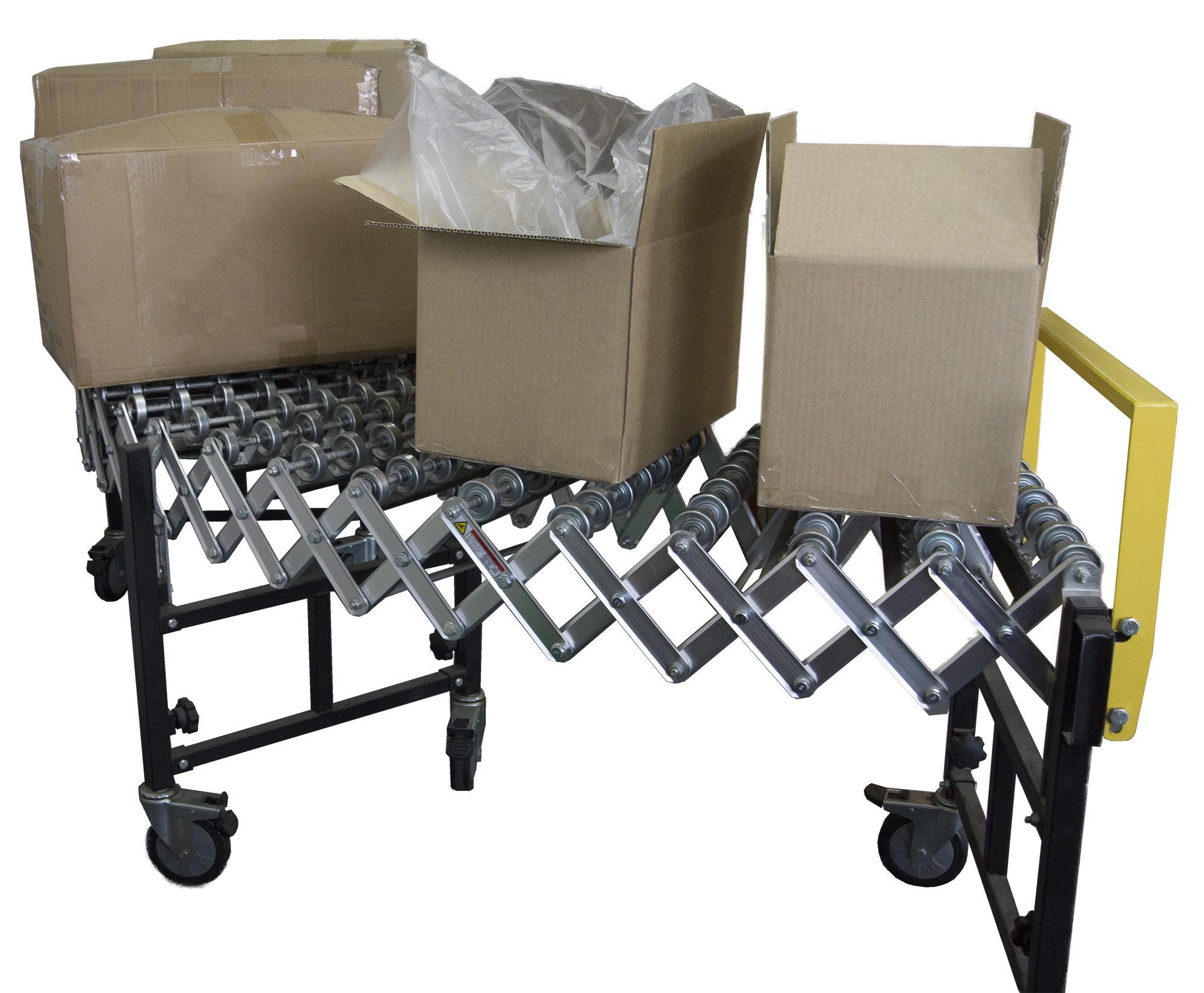

Achieve more with much less - stretch and bend your height-adjustable Xpandaroll Conveyor to take your products wherever you need them. Cartons simply follow the twist and turns of the conveyor path without the need for side rails or engineered curves. Ideal for changeable product runs in dispatch and trailer loading and devanning, this conveyor can easily be pulled out when needed then folded away for storage.

Currently available ex. stock



Enquire now
Brand:

Features, Benefits & Uses

Features & Benefits

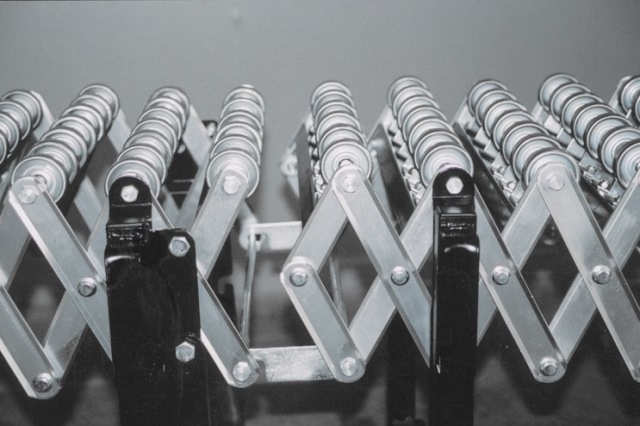

  • Robust construction with high tensile ribbed aluminium side plates and channel spanning entire conveyor width for added strength.

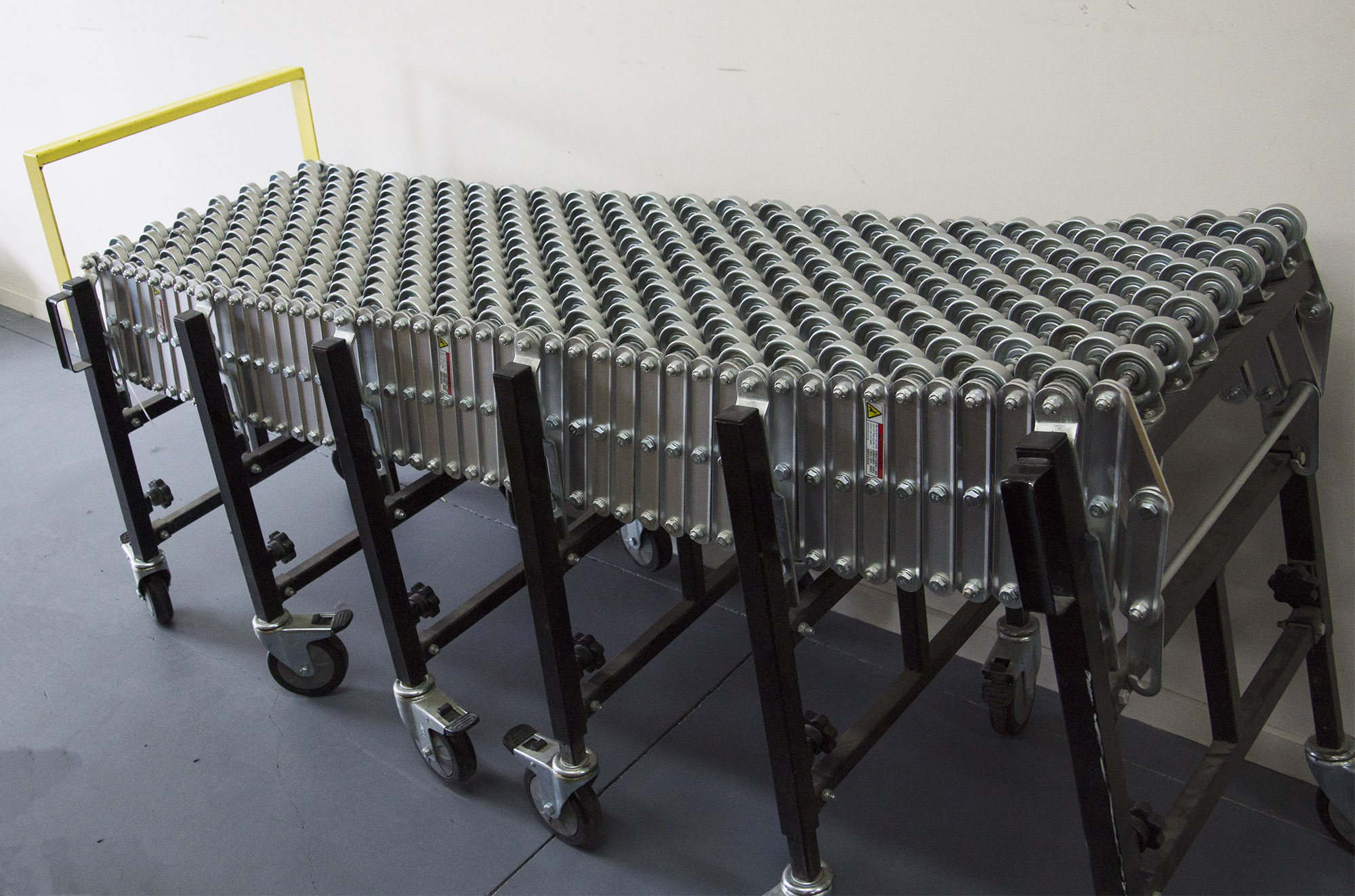

  • Save valuable floor space when not in use, conveyor folds down to 1.6m.
  • Build to any required length with easy clip-on connecting brackets.
  • Product self-tracks with free running skate wheels guiding product.
  • Adjustable height, simply turn the locking knob to raise or lower the conveyor bed height.
  • Easily move conveyor around with fully lockable castor wheels.
  • Quick set-up with no installation or assembly required.

Uses

  • Dispatch areas
  • Courier parcel handling

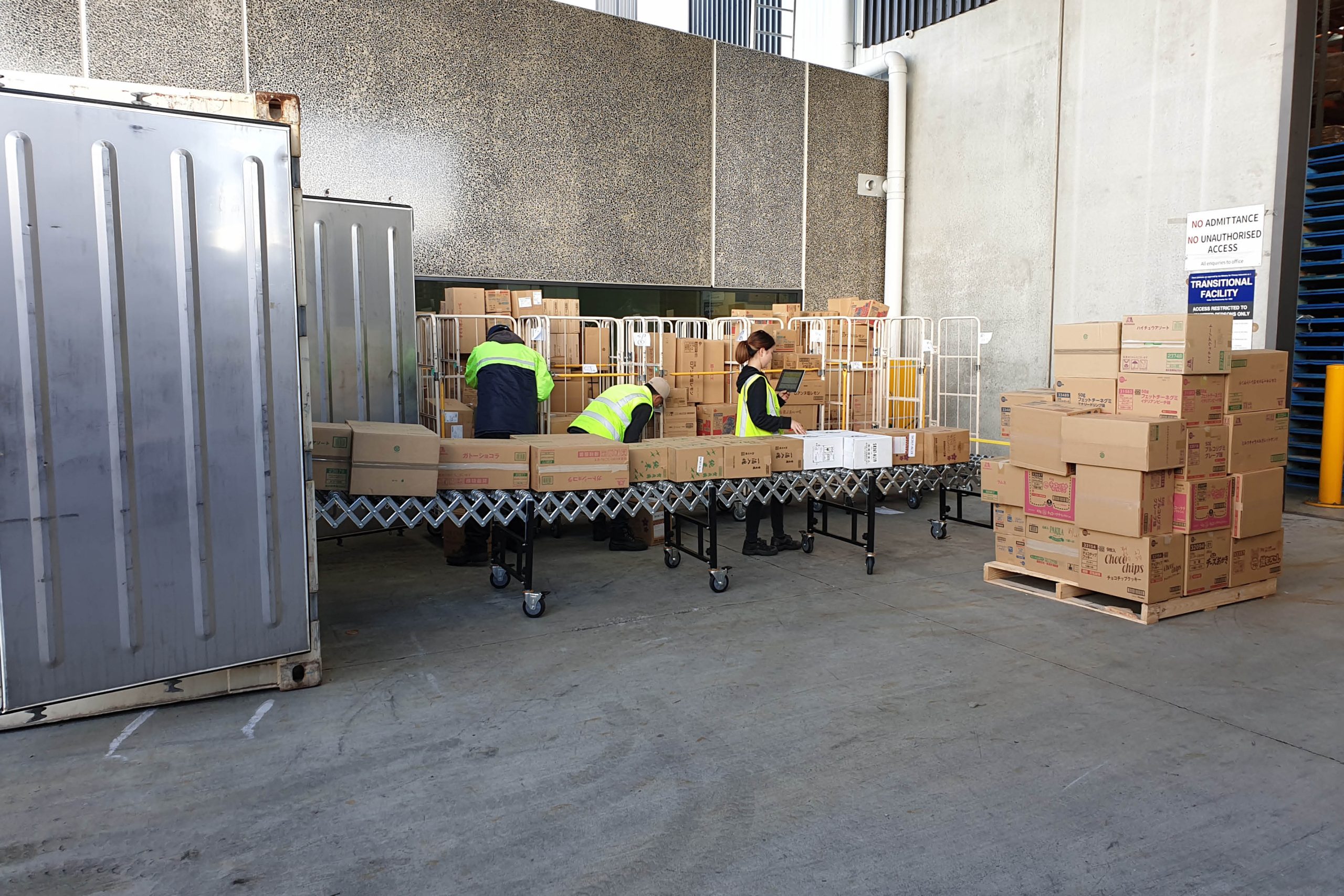

  • Truck loading/unloading
  • Distribution centers
  • Mobile assembly lines
  • Shipping and receiving

Specifications

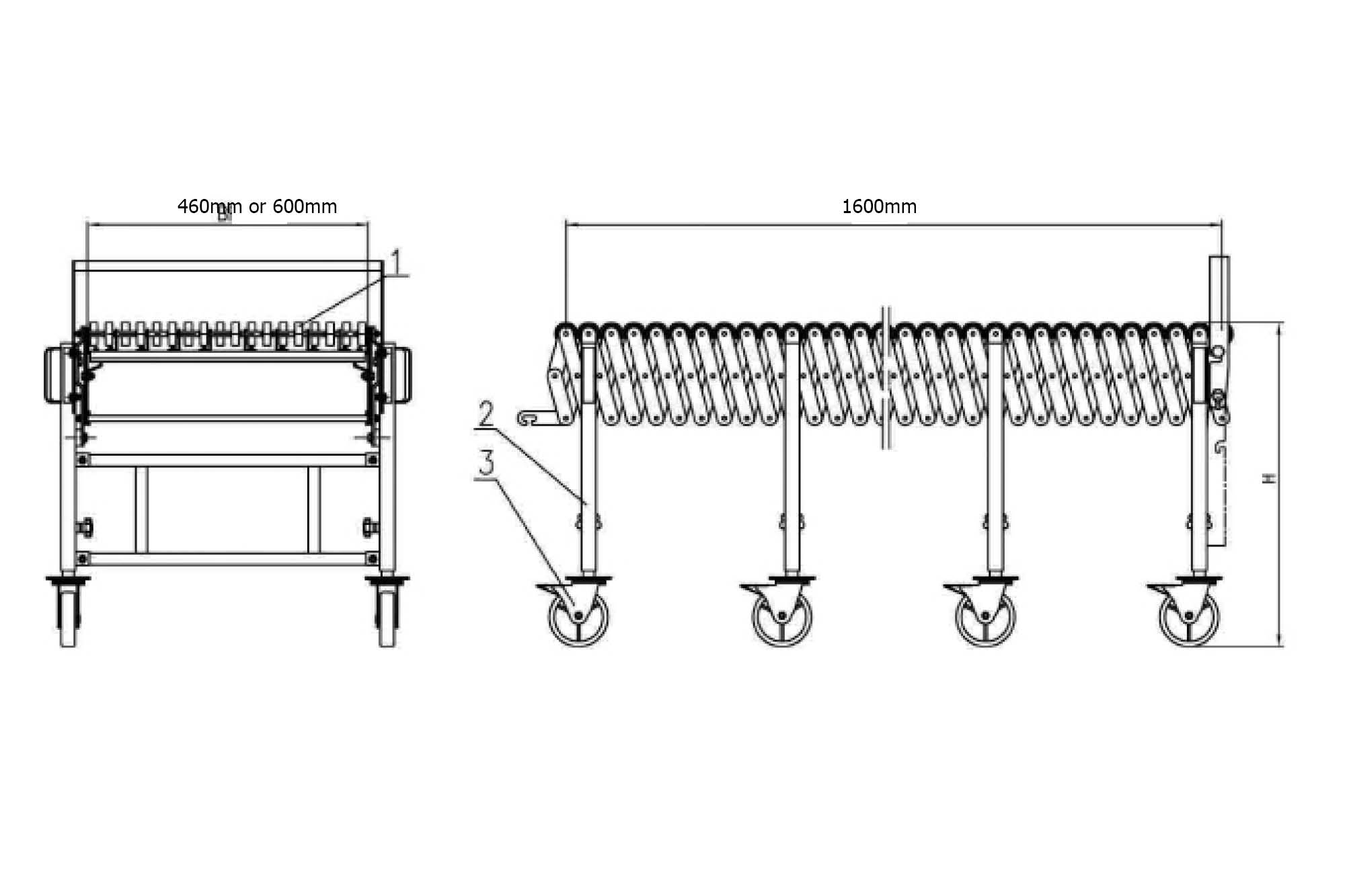

Dimensions

  • Overall Length Expanded: 6,000mm
  • Overall Length Compacted: 1,600mm
  • Working Width: 610mm
  • Overall Width: 640mm
  • Height Adjustable: 690mm – 1,000mm

Construction

  • Frame Construction: High Tensile Ribbed Aluminium Side Plates
  • Stand Construction: Powder Coated (Black) Steel

Skate Wheels

  • 50mm Free running Skate Wheels, zinc-plated

Load

  • Max load rating, 250kg/m

Other

  • Fully Lockable Castor Wheels
  • Connecting Brackets
  • End Stop
