Tranzband Lineshaft Powered Roller Conveyor | Powered Roller Conveyor

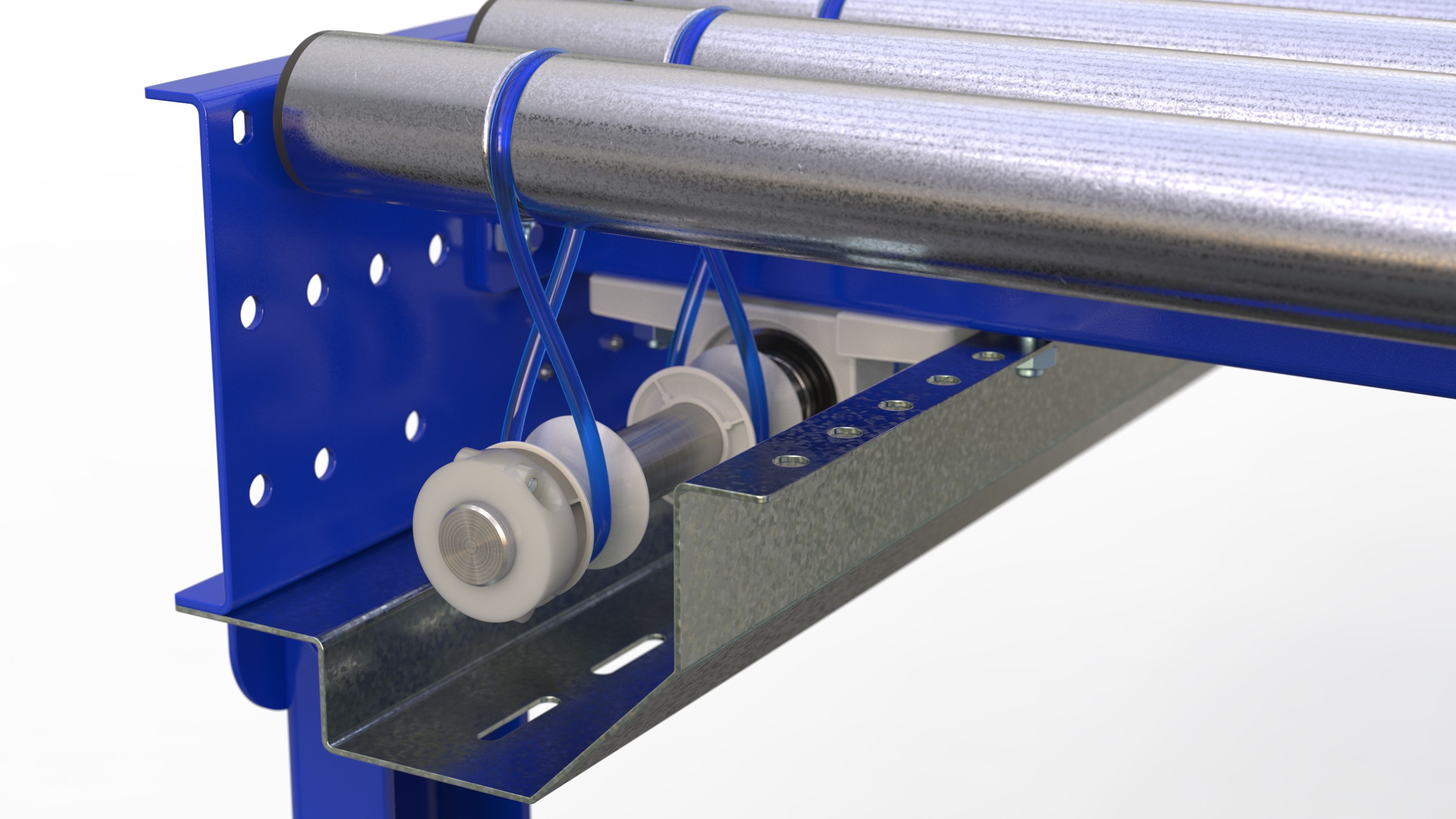

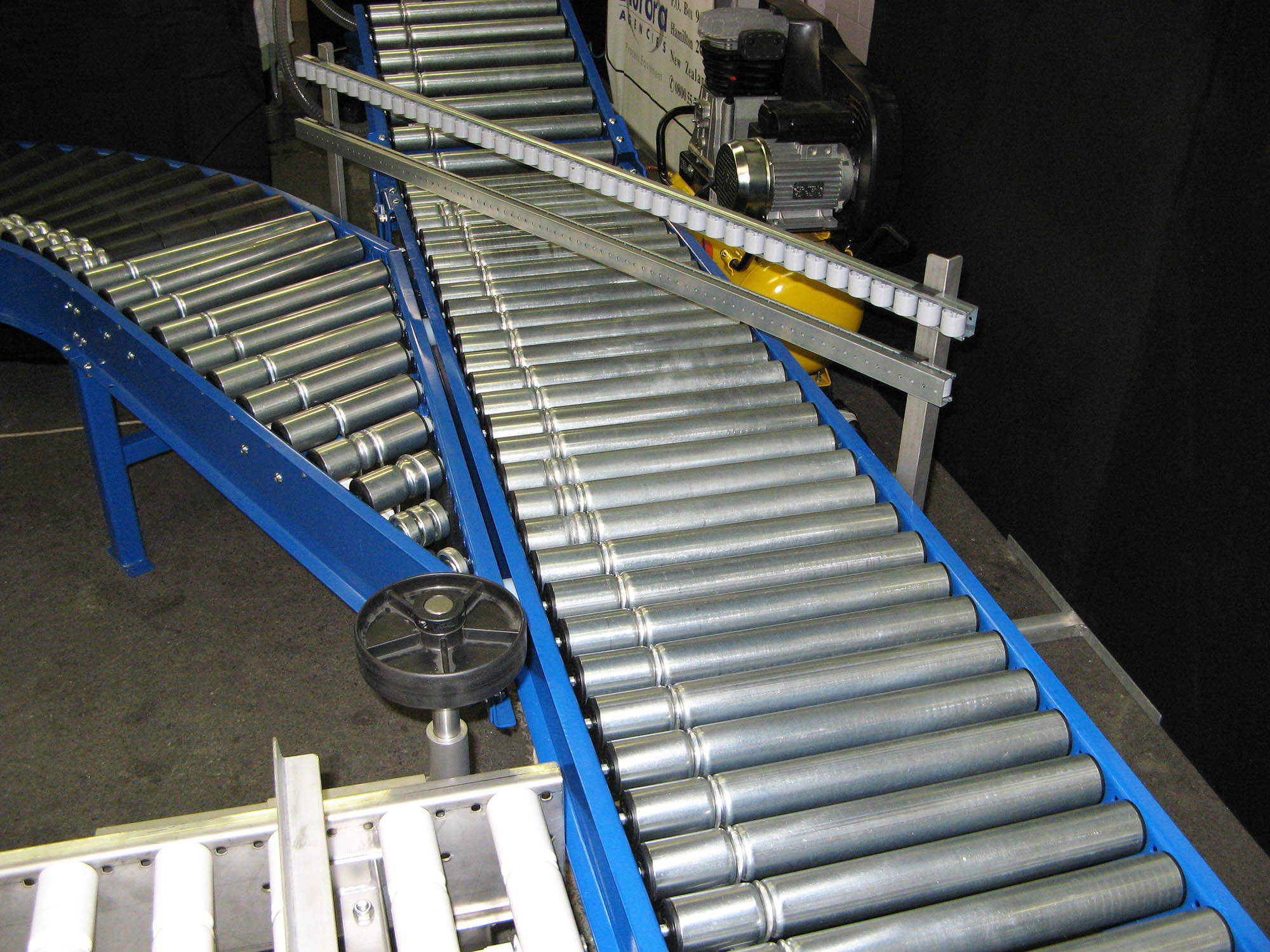

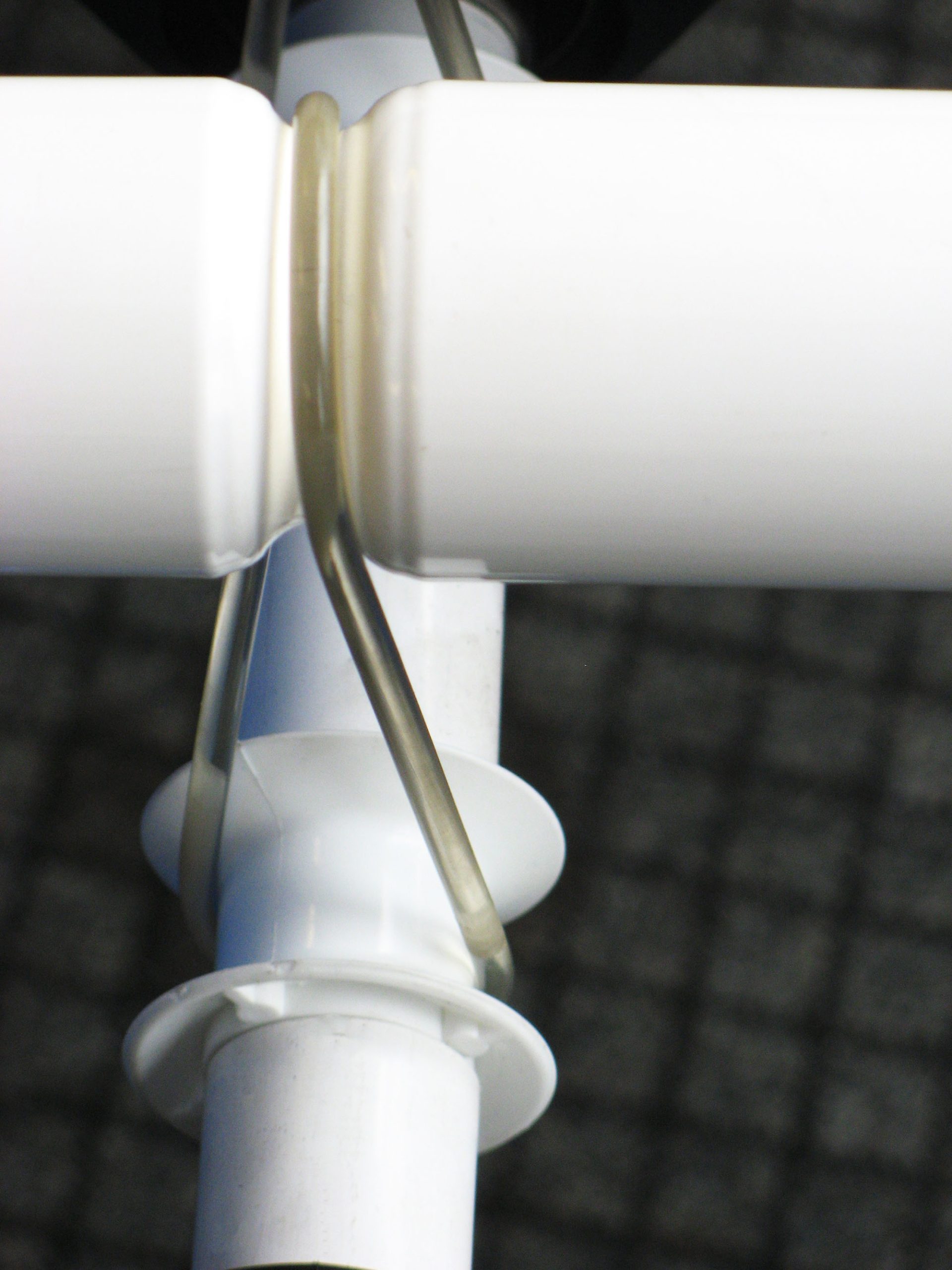

An inbuilt accumulation system and innovative safety features makes this lineshaft conveyor the conveyor of choice in many industries. Easily transfer product, accumulate, move around bends or through gates with this modular design. The basis of the system is a touch polyurethane belt which enables each grooved roller to be independently driven from a common lineshaft.

✔ Safe - with full underguarding, shaft spacers and smooth safety edges to minimise pinch points.

✔ Flexibility - modular design can easily be modified or adapted to, adapting to your needs as you continue to grow.

✔ Accumulation - rollers will stop running, stopping the product from moving when it comes up against a physical stop.

Brand:

Features, Benefits & Uses

Features & Benefits

  • Modular design for quick installation, which also means they can be modified or added to easily

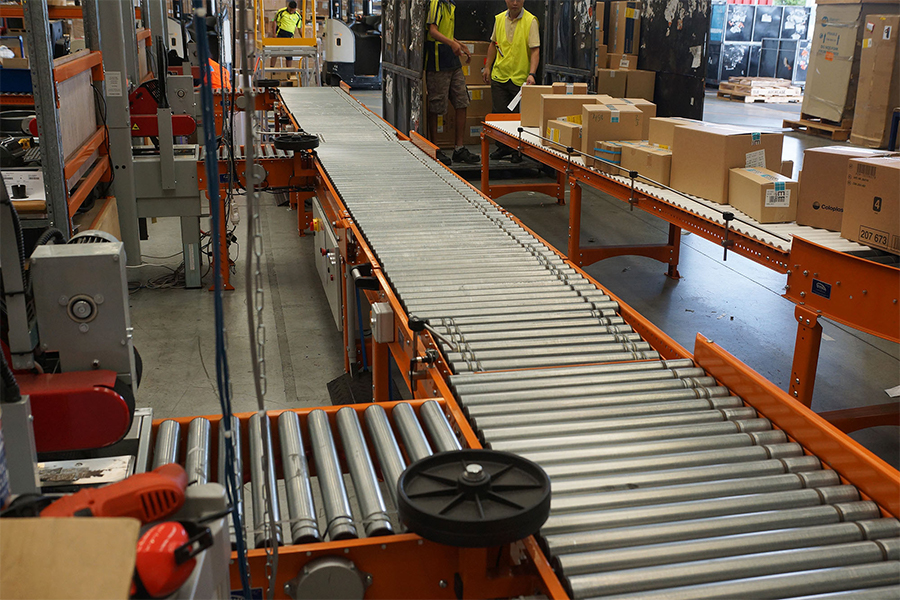

  • Built in accumulation allows rollers under product to stop when it comes up against a physical stop
  • Accumulation pressure is adjustable

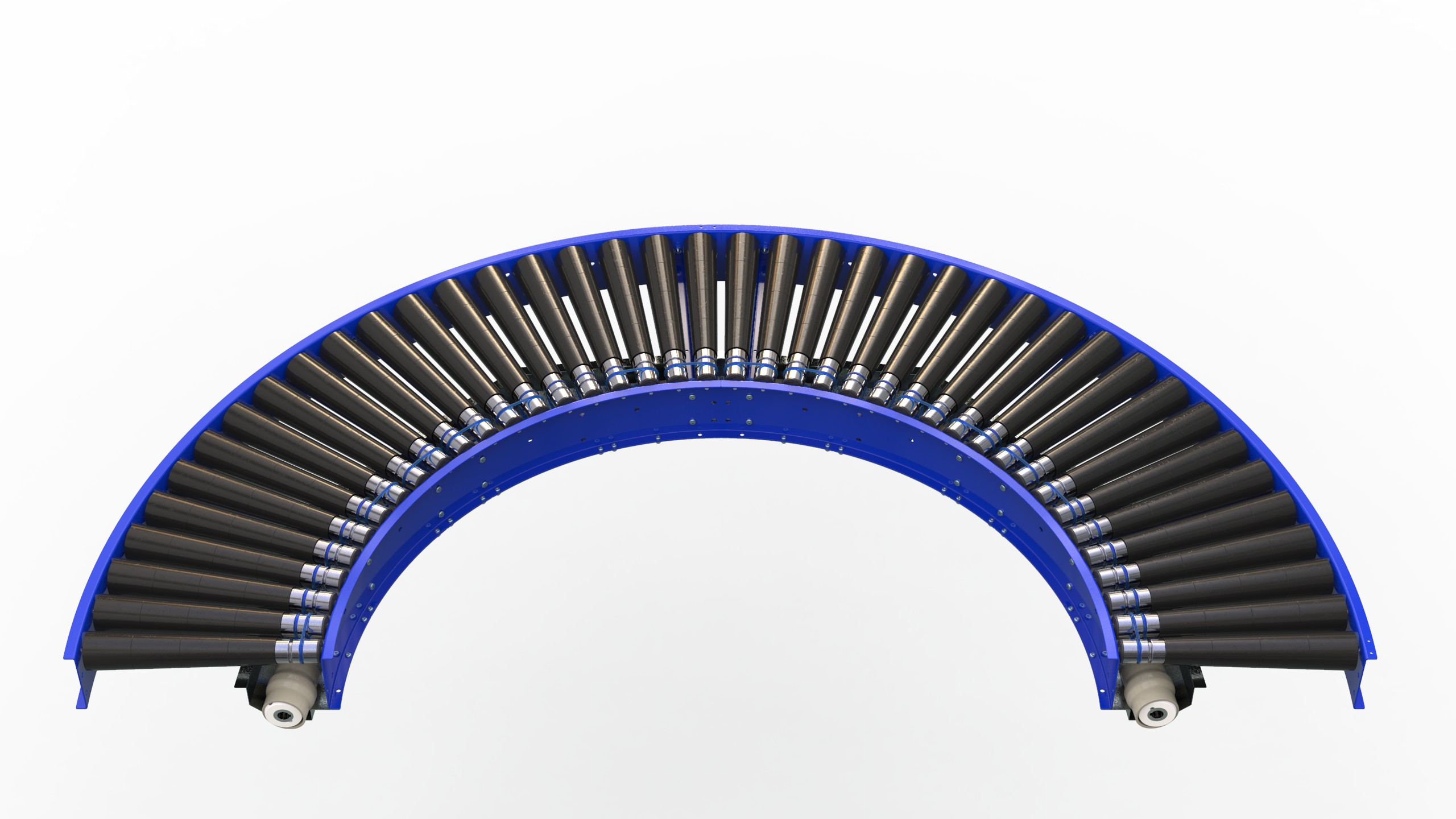

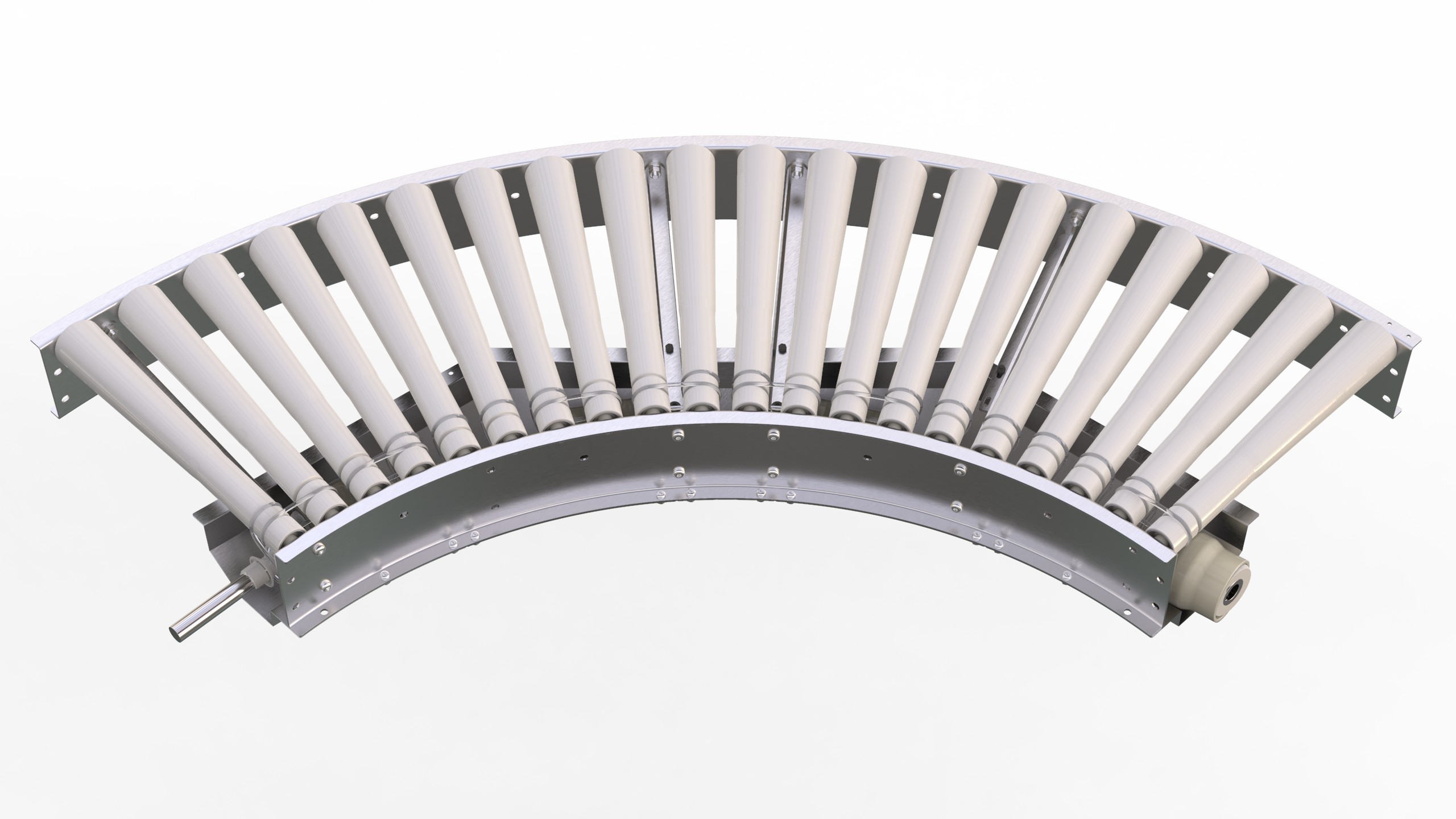

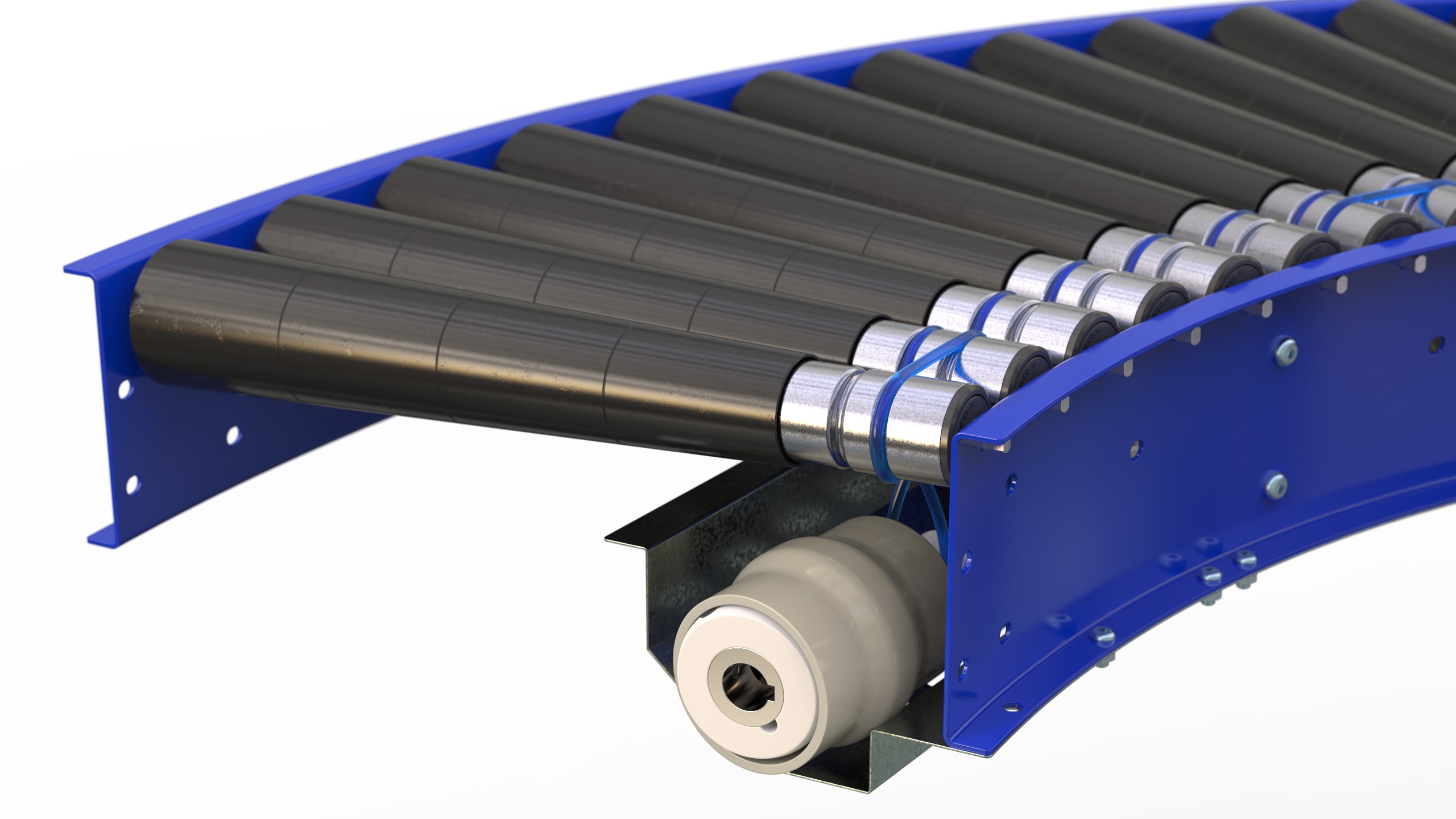

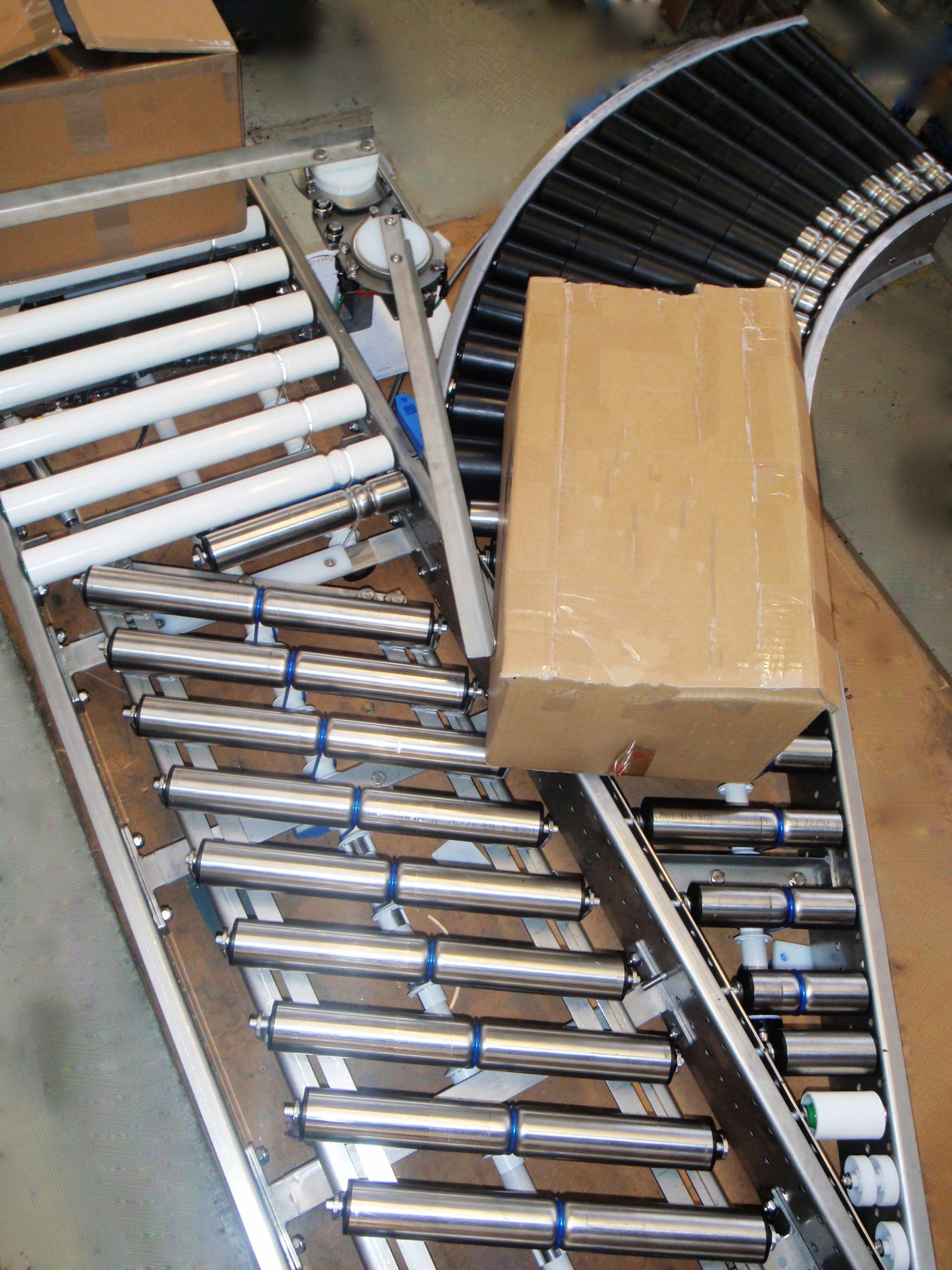

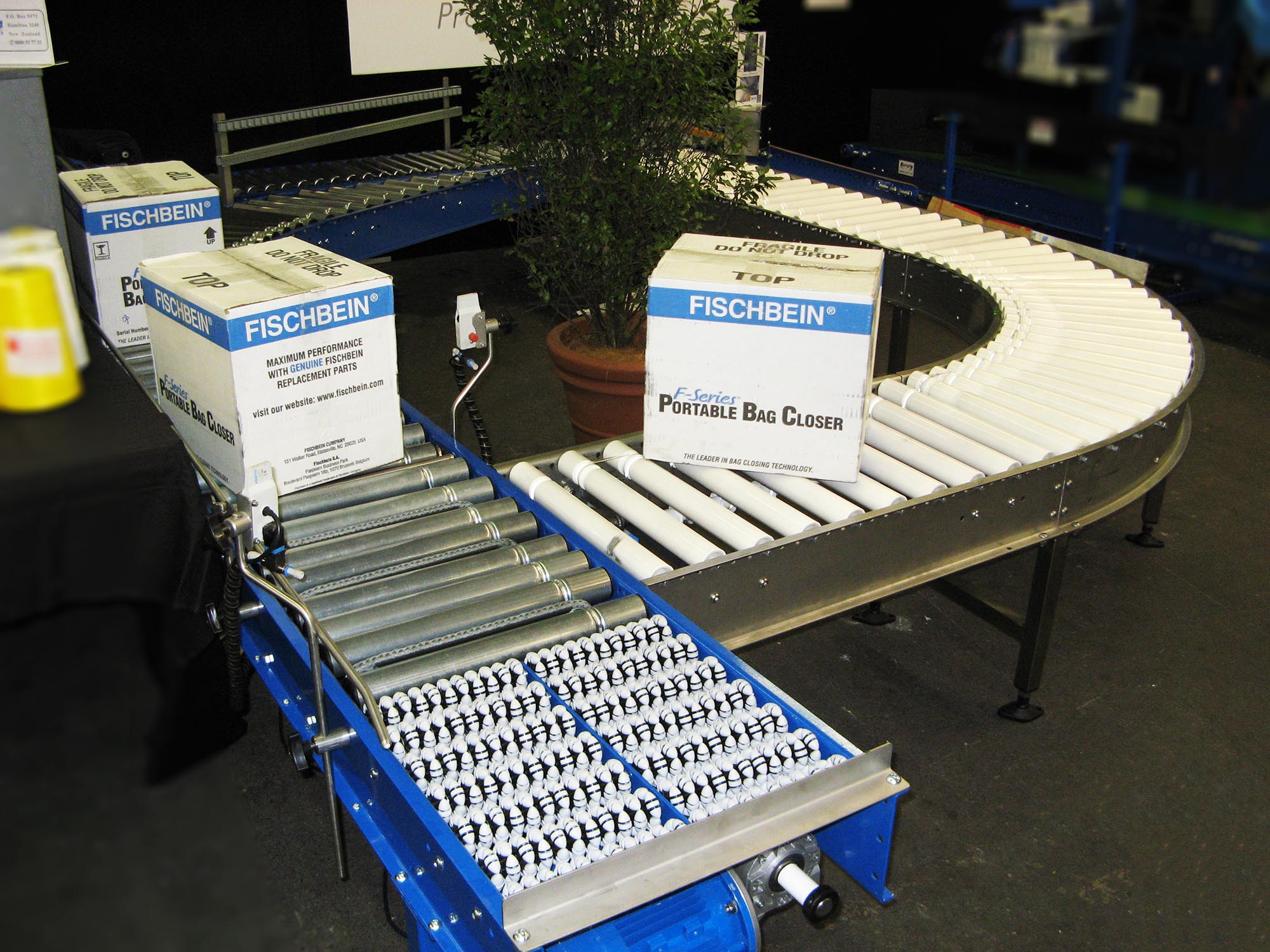

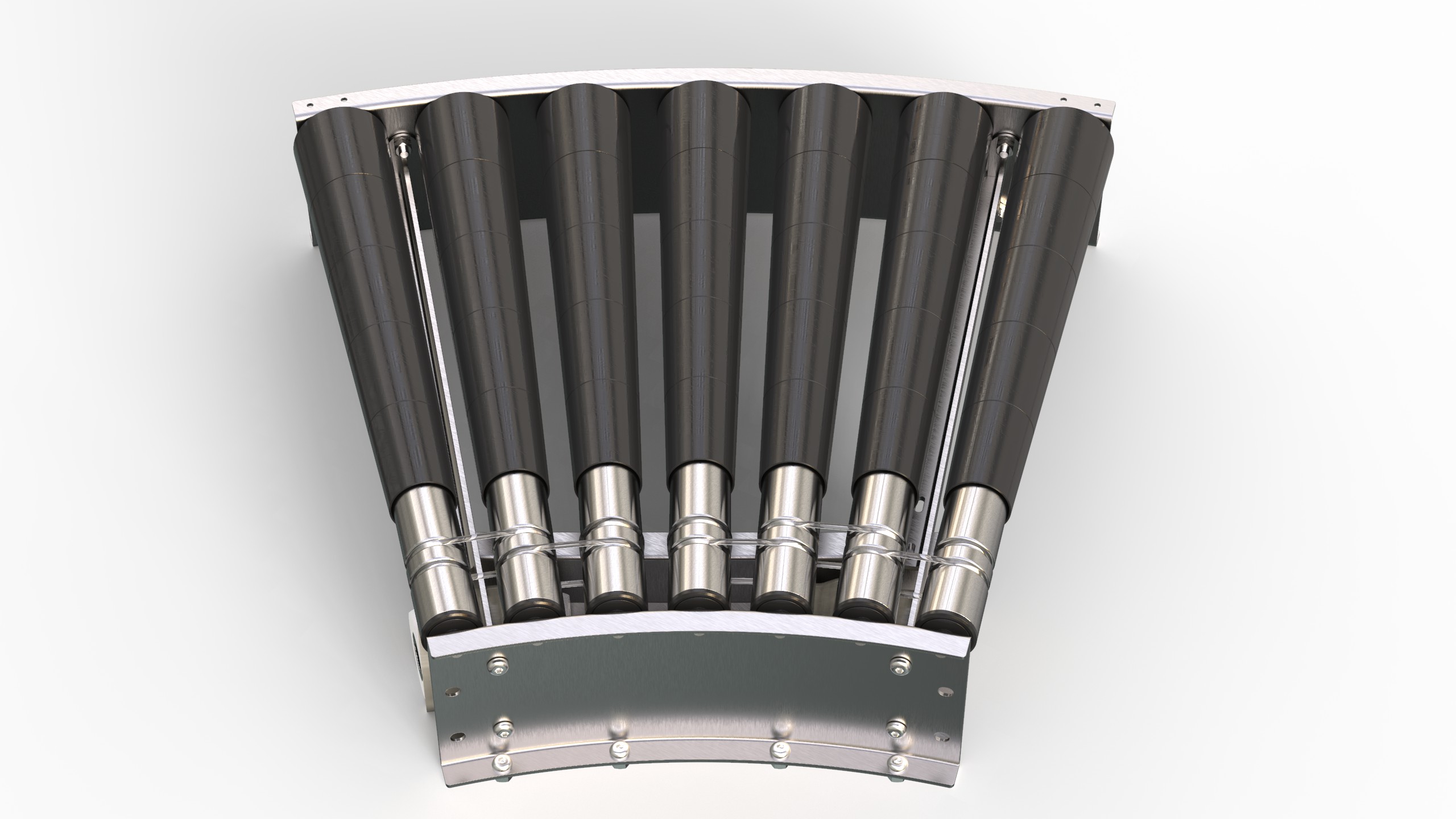

  • Tapered rollers give accurate powered transfer around bends
  • Shaft is mounted so it can be lifted straight out the top of the conveyor – this means any replacement or maintenance work is quick and easy to do.
  • Joiner flanges are built into the frame design meaning no joiner plates are needed
  • Safe – Spacers between drive spools, no pinch points or chains and fully guarded underneath

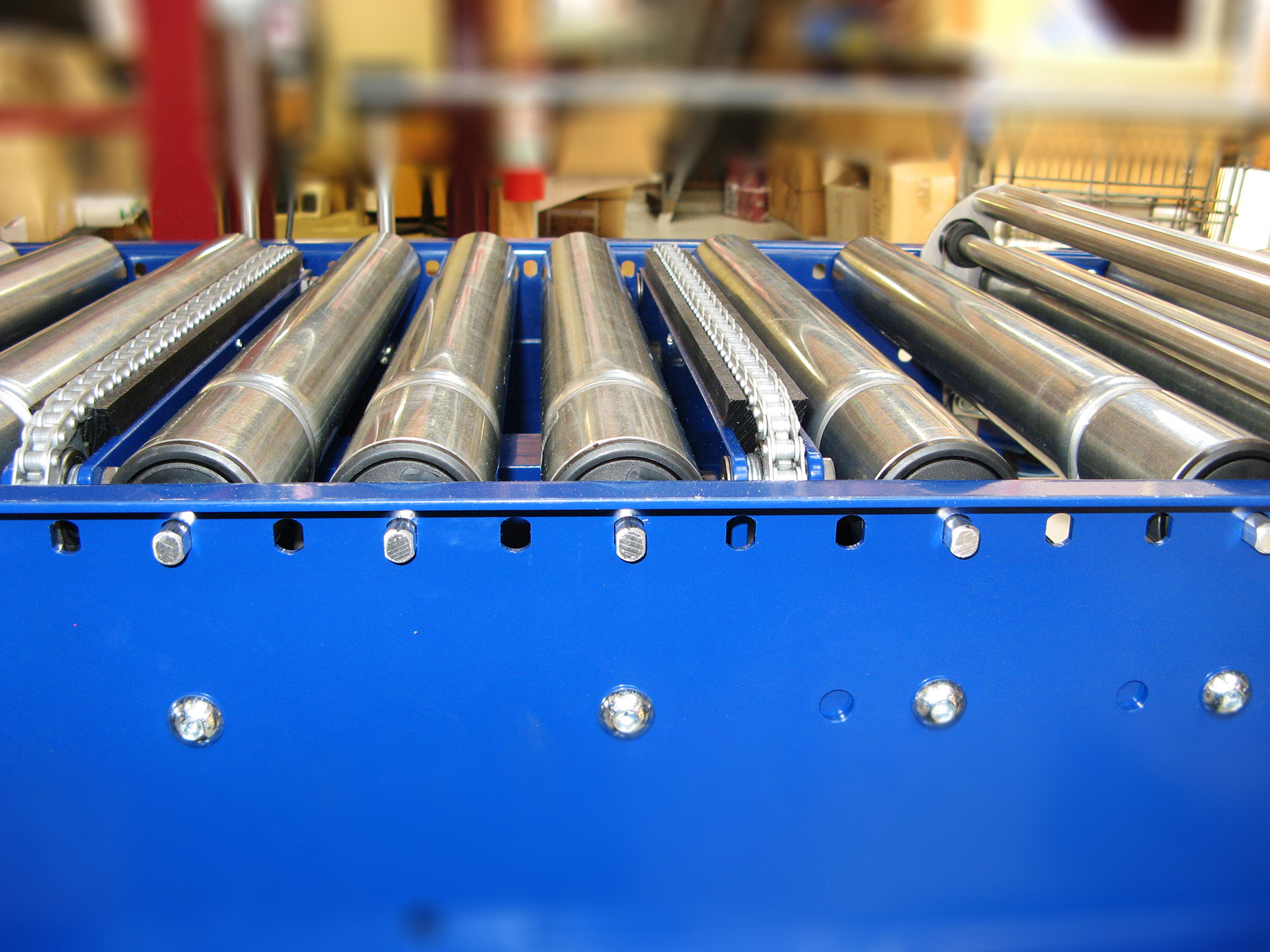

  • Safety edges on straight sections and smooth frame on bends means there is no risk of staff injuring themselves on protruding roller shafts.

Uses

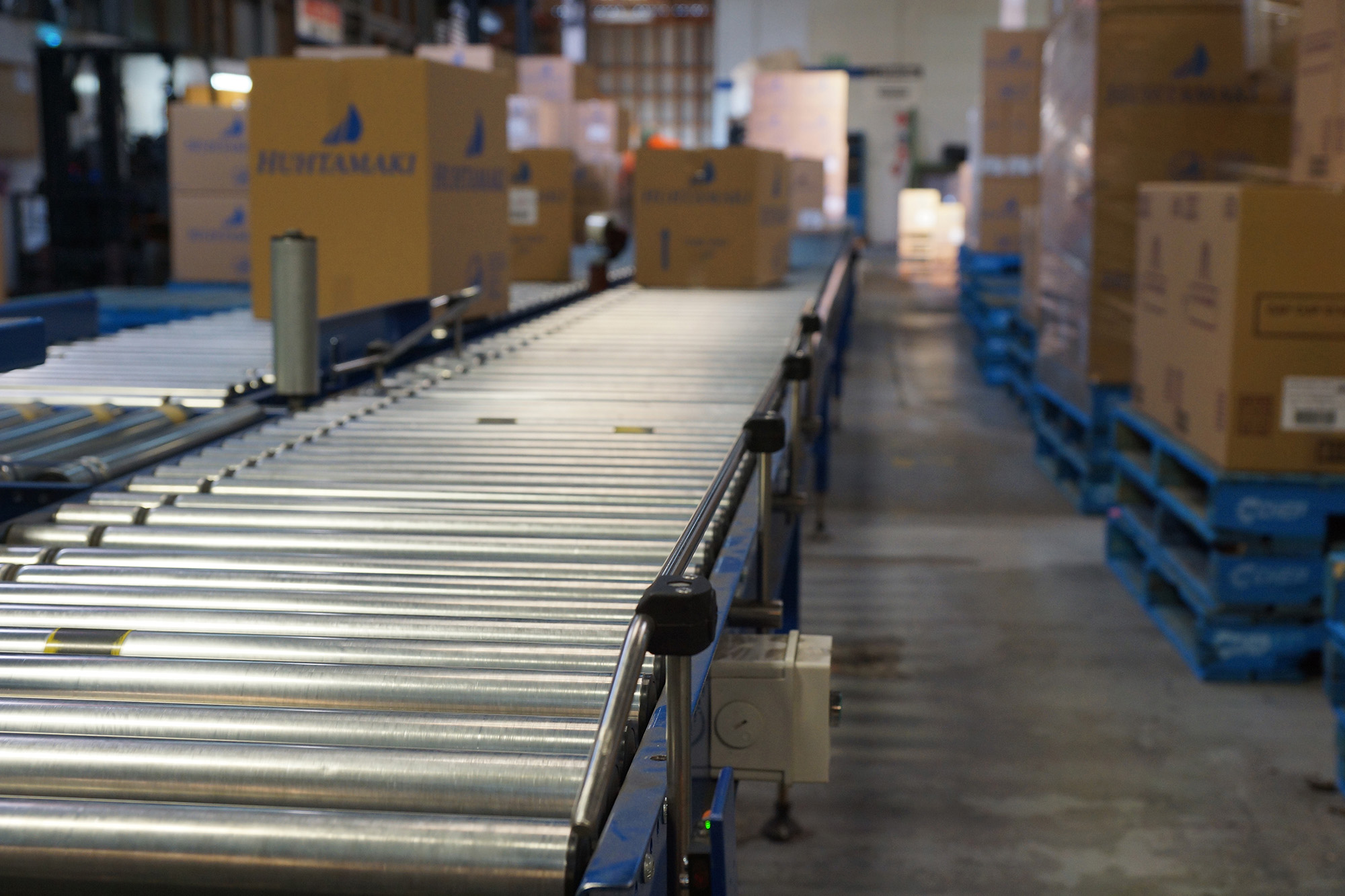

  • Warehousing and Distribution

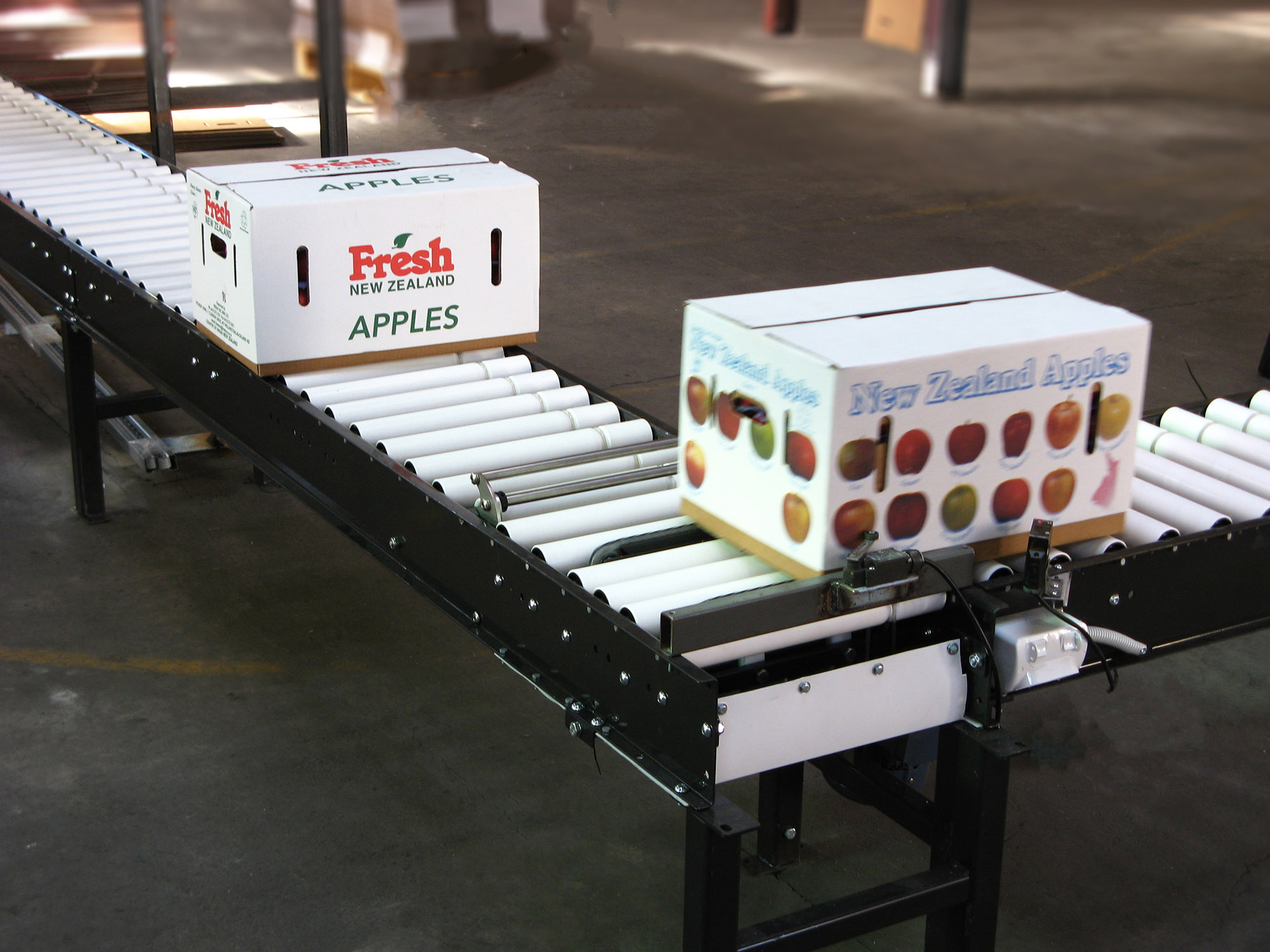

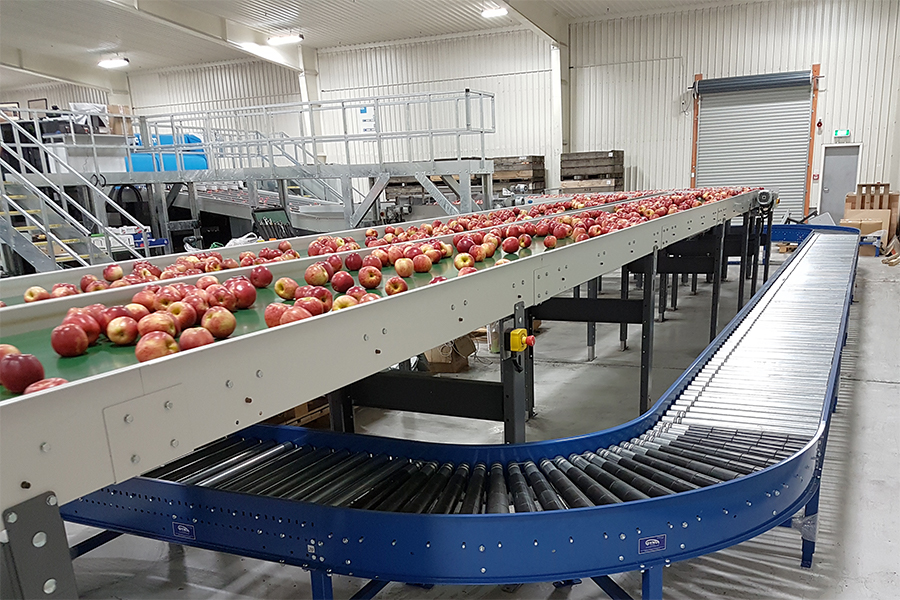

  • Fruit/Vegetable carton and crate packing
  • Meat – carton handling
  • Product Manufacturing
  • Logistics and baggage handling

Specifications

Dimensions

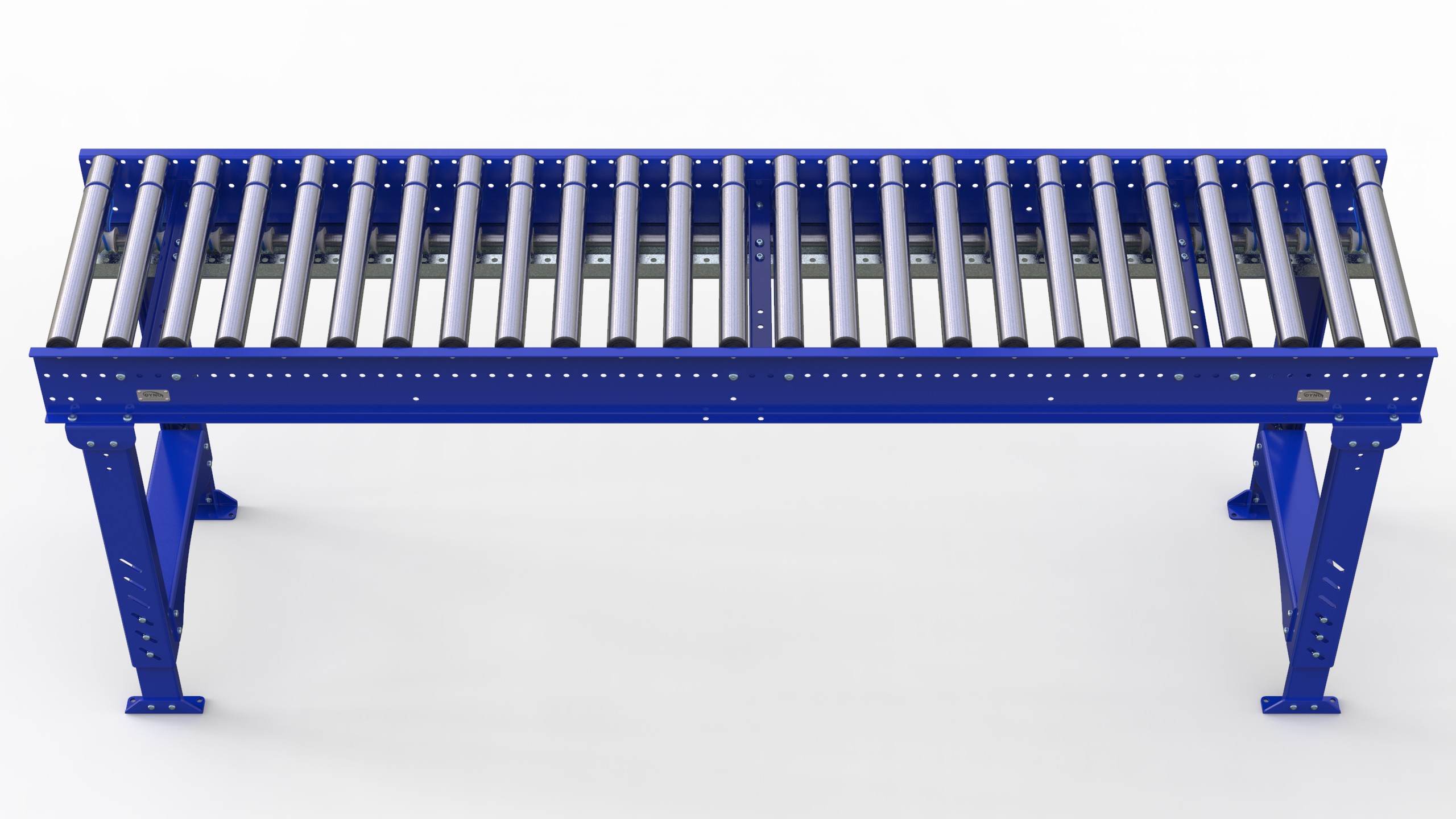

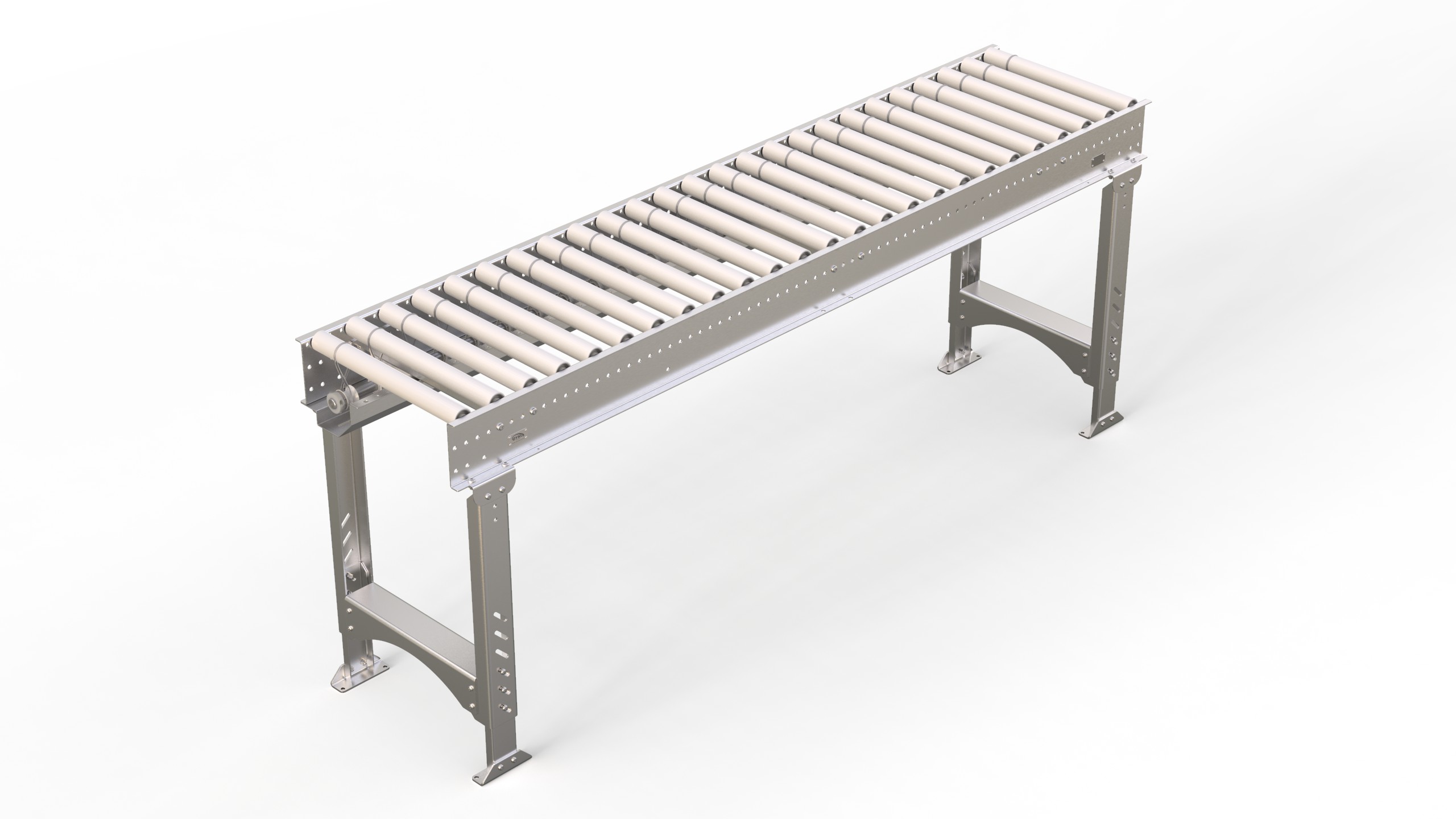

Standard straights: 2.4m and 1.2m – customised lengths available on request
Width: optional

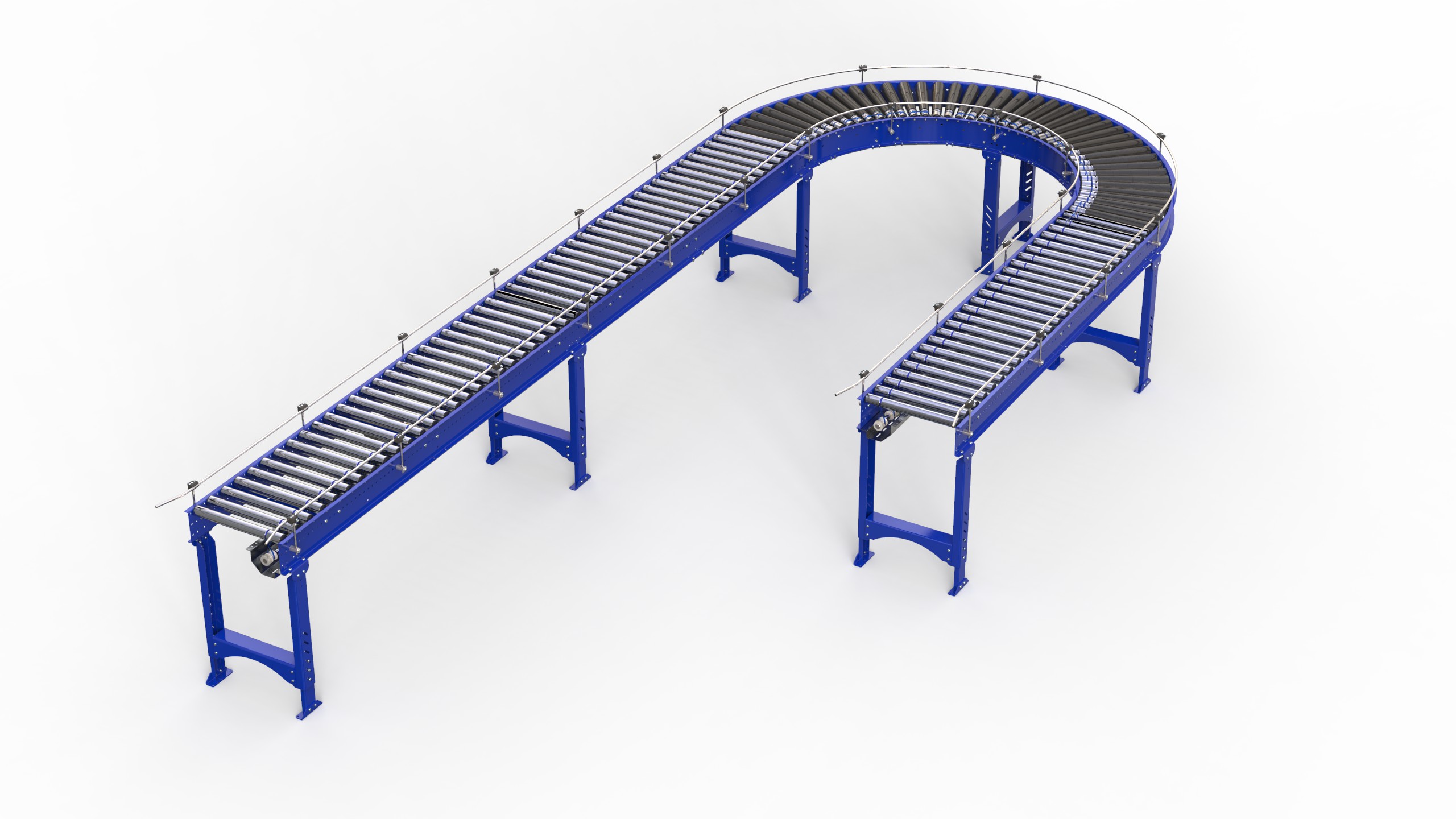

Standard bends: 90° and 45° – other angles available on request
800mm inside radius
163 x 25 x 3mm channel

Frame Construction

Powder-coated mild steel, Colour; Pommel Blue (standard)
Custom colours available on request
304 Stainless Steel option

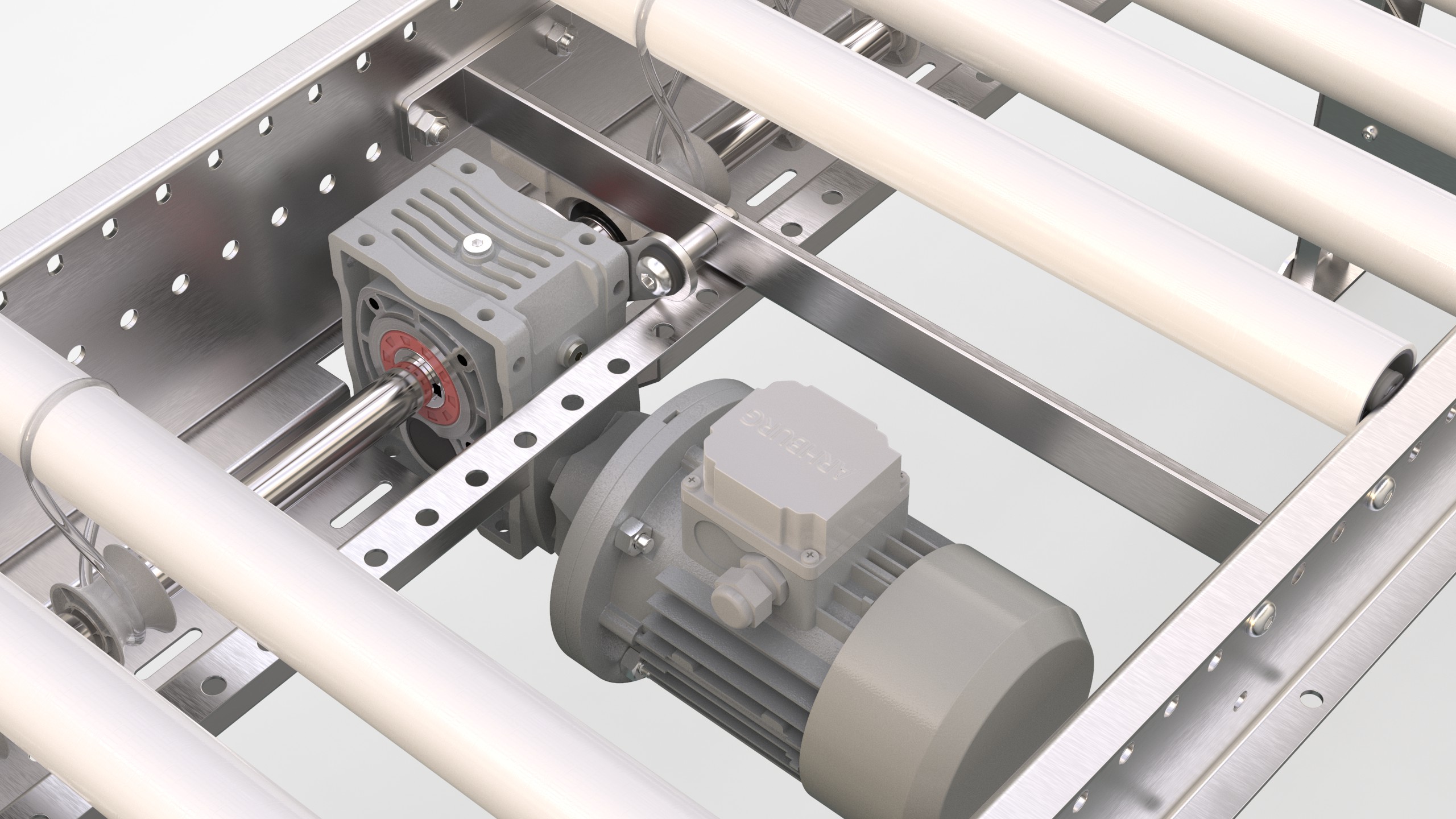

Drive Motor

Geared drive motor, 3 phase, IP55 (other IP rated motors available for special application)
Single phase optional
Variable speed available
Shaft mounted gear boxes

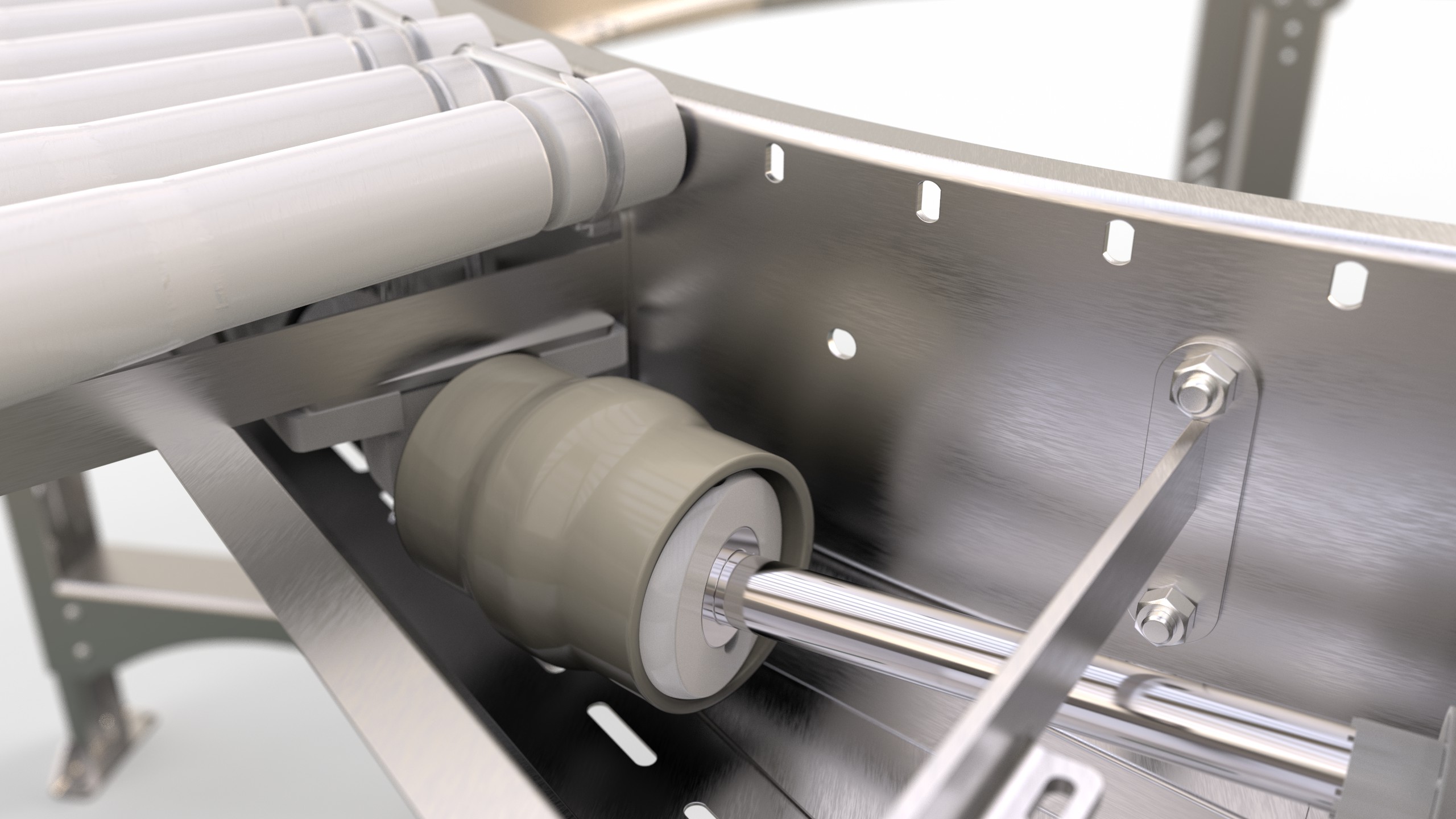

Drive Shaft

25mm Ø
304 stainless steel or mild steel
Sealed precision bearings in cast iron housings on mild steel systems
Plastic block bushed bearings for wash down on stainless systems

Rollers

Galvanised – Galvanised steel tube with sealed precision bearings, aluminium shaft
Dynopipe – PVC tube, aluminium Q shaft, plastic bearing housing with stainless steel or carbon steel balls

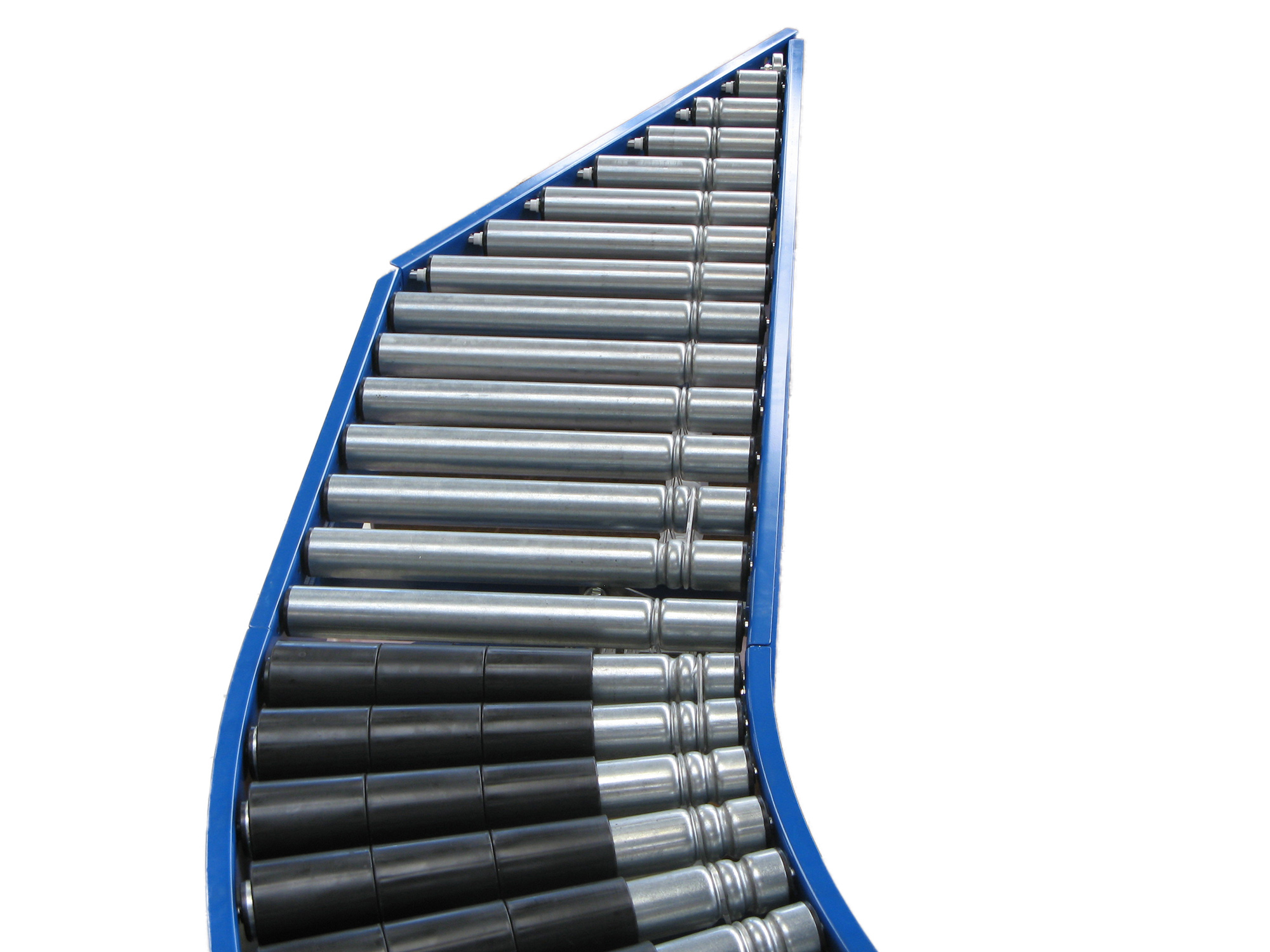

Tapered – Rollers for bend sections
Stainless Steel – 304 and 316 stainless steel rollers also available 64, 96, 128 or 160mm pitch

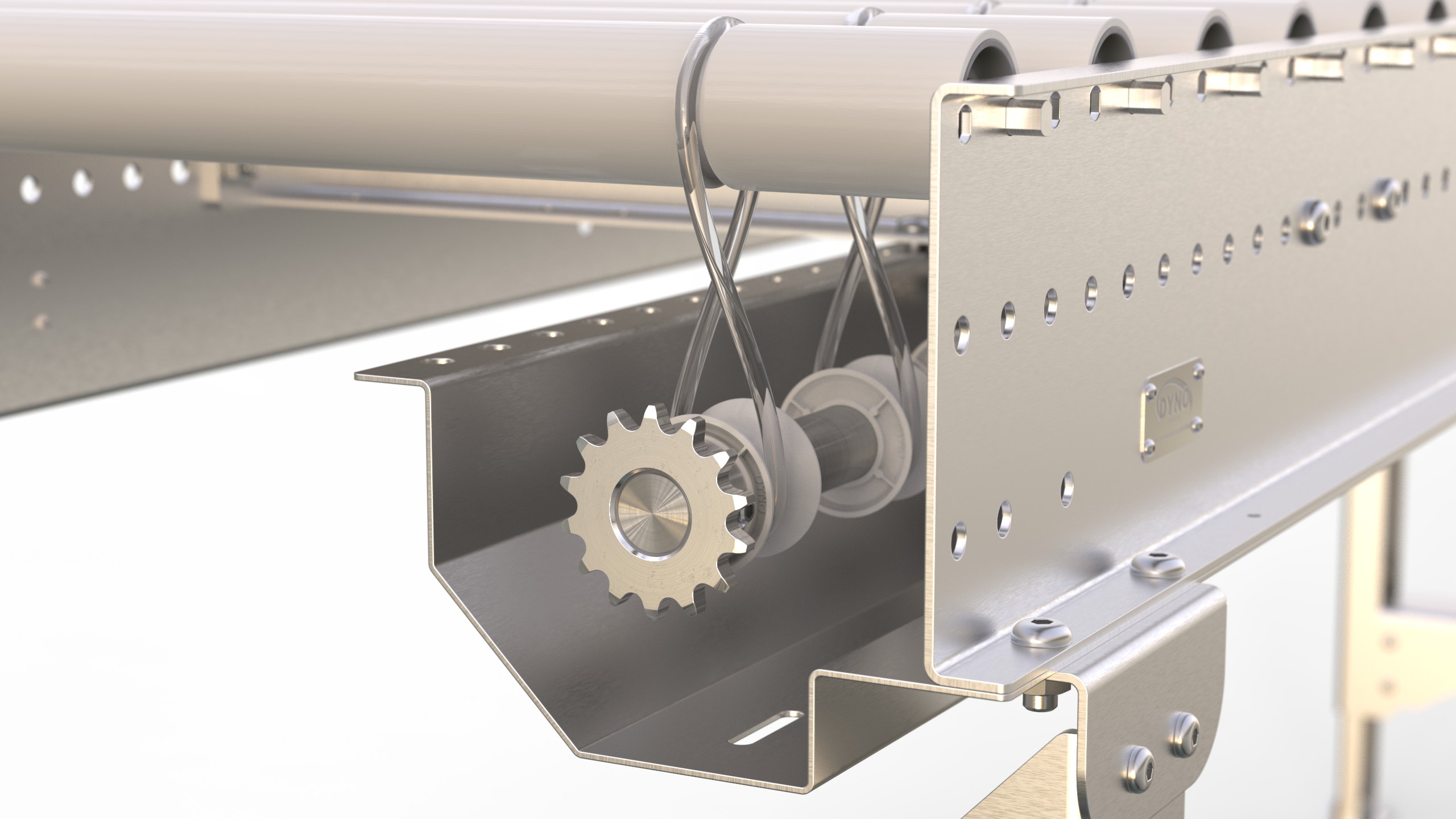

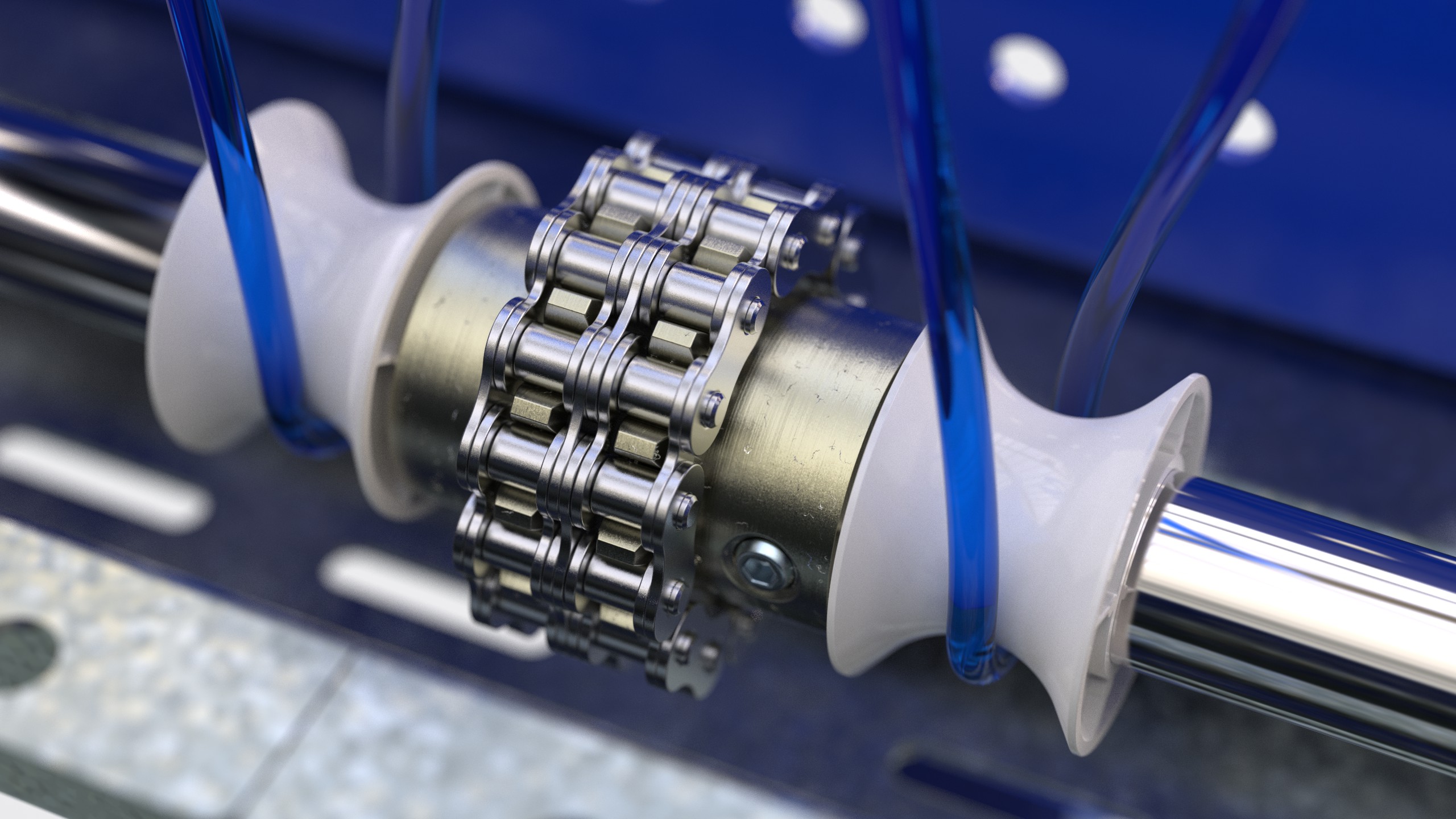

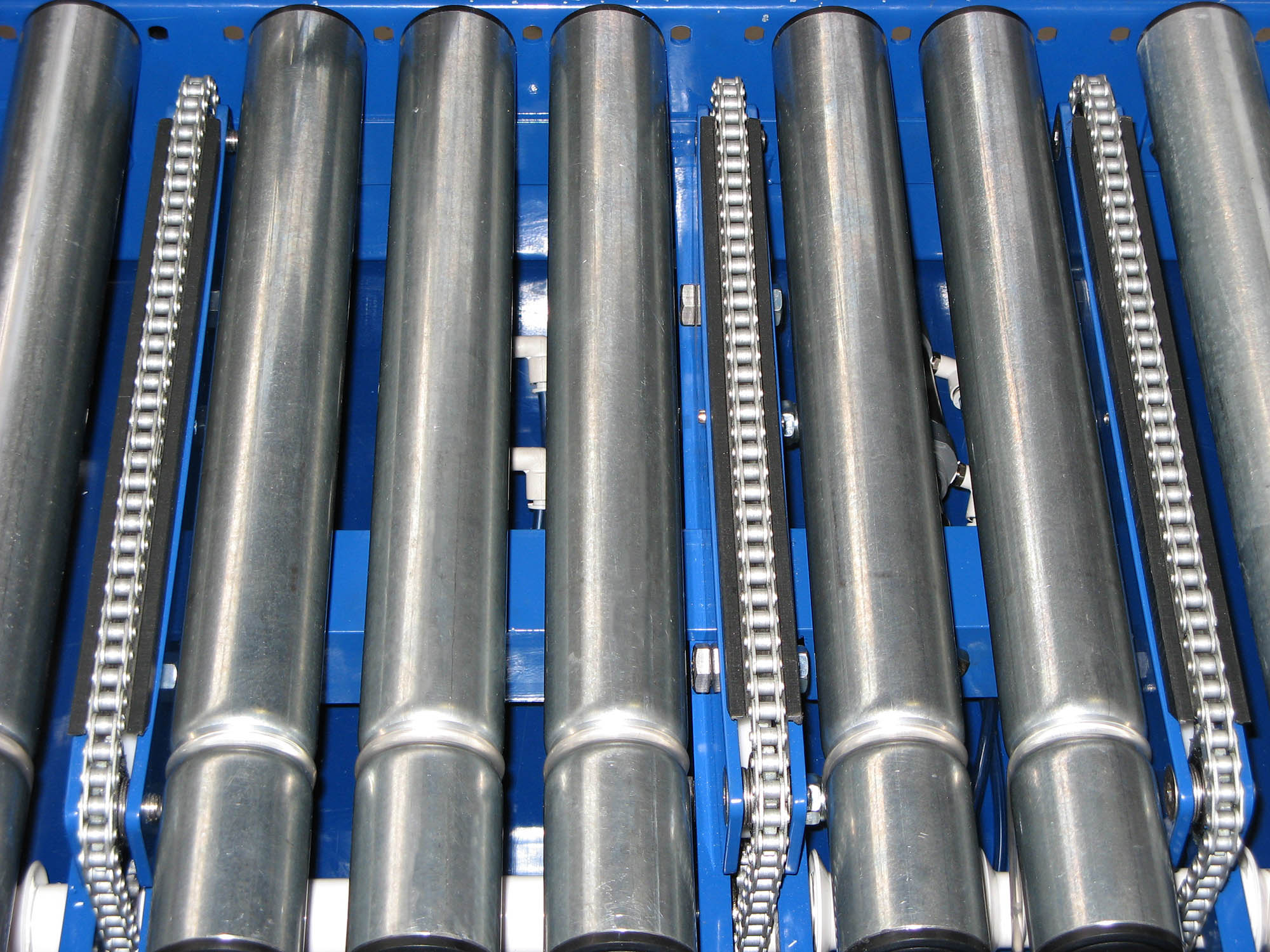

Sprocketed Couplings

Stainless steel or zinc plated
Safe and clean plastic couple chain

Stands

Adjustable height 600-900 TOR. Free standing or provision for bolt down. Other heights available on request
