Vertical Conveyors

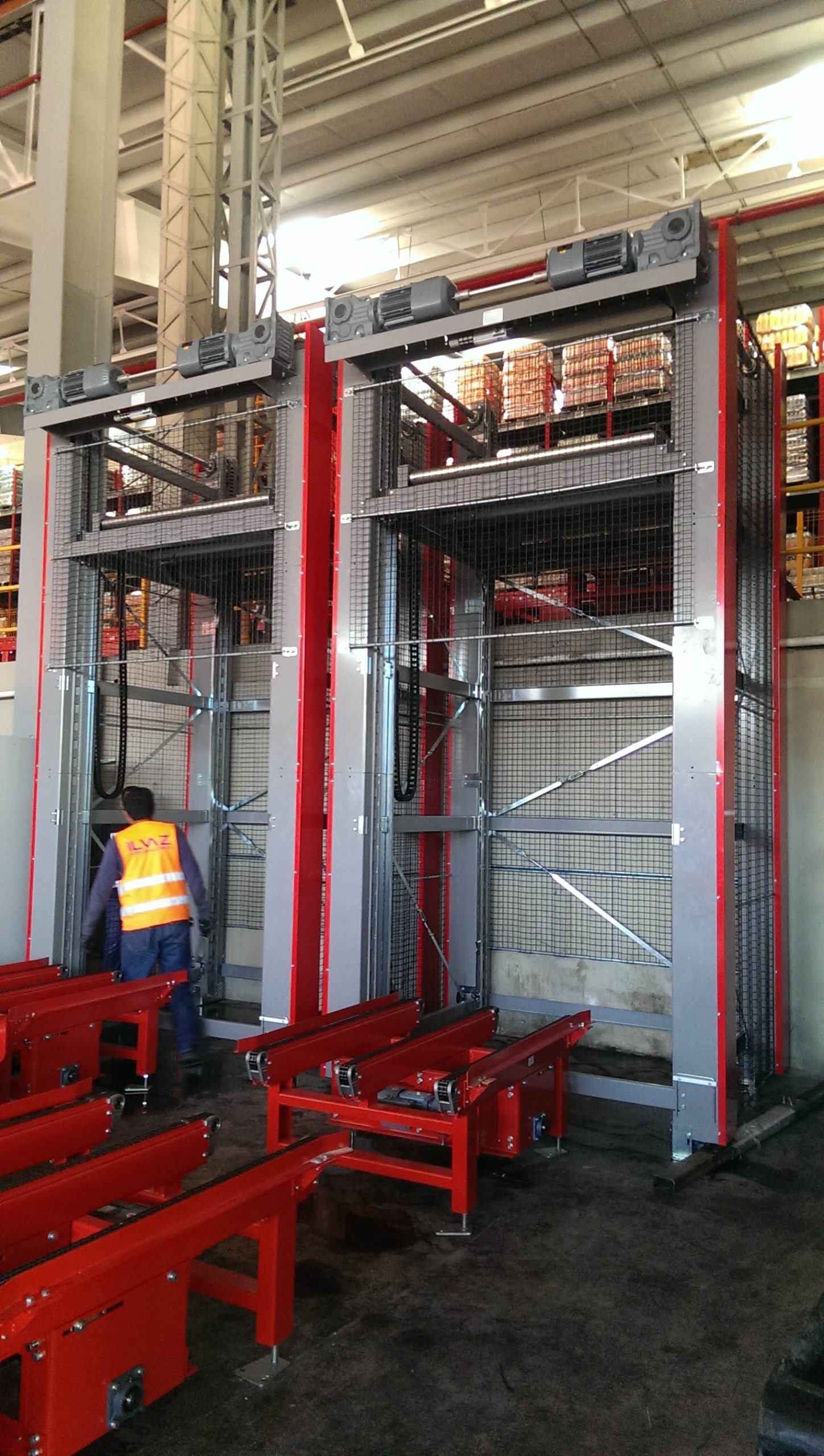

Prorunner® Mk10 | Vertical Conveyor

This rugged vertical pallet conveyor will lift and lower up to 60 pallets per hour. A small footprint means this lift fits into virtually any layout and is easily integrated into your transport system - with your choice of a roller of chain conveyor. A clever design and reliable components, means the conveyor almost looks after itself. Manufactured by Qimarox, world renowned in vertical conveying.

Fits into almost any layout with minimum footprint and compact design

Drop down protection included

Robust, solid construction with very low maintenance

Enquire now   Watch videos
Brand:

Features, Benefits & Uses

Features & Benefits

  • Minimal footprint
  • Infeed / discharge to all sides
  • Suitable for vertical sorting (multiple floors)
  • Pallets, racks, etc. up to 2000 kg
  • Sturdy, low maintenance machine
  • Quiet
  • Solid steel construction
  • Standard equiped with drop-down safety

Uses

The Pallet lift Prorunner Mk10 is a robust solution for automating pallet transport, specifically designed for handling significantly heavier loads than its predecessors, while maintaining a compact footprint and high throughput. It is ideal for industries that manage very heavy palletised goods and require seamless integration into their material handling systems.

Industries:

  • Heavy Manufacturing: Essential for production lines moving substantial components, machinery, or finished products on pallets (up to 2,000 kg).
  • Metalworking and Automotive: Transporting heavy raw materials, sub-assemblies, or finished parts, such as engine blocks or large stampings, on pallets.
  • Building Materials: Used in facilities manufacturing or distributing dense items like bricks, tiles, bags of cement, or aggregates on pallets.
  • Chemical and Pharmaceutical (Heavy Goods): For vertical transport of large drums, tanks, or bulk containers of materials on pallets.
  • General Warehousing and Distribution (Heavy Duty): Operations specialising in the storage and movement of exceptionally heavy or dense palletised inventory.
  • Logistics and Freight Handling: Facilitating the efficient, automated vertical movement of heavy palletised cargo in large-scale operations.

Specifications

  • Lowest infeed/outfeed position of the mk10: 400 mm / 16 inch
  • Highest infeed/outfeed position of the mk10: 24,900 mm / 981 inch
  • Max. column height: 25,000 mm / 82 feet
  • Max. pallet weight: 2000 kg / 4410 lbs
  • Max. pallet size: 1,650 x 1,400 mm / 65 x 55 inch
  • Max. throughput: 100 pallets p/hour
