Powered Xpandaroll | Telescopic & Expandable Conveyors

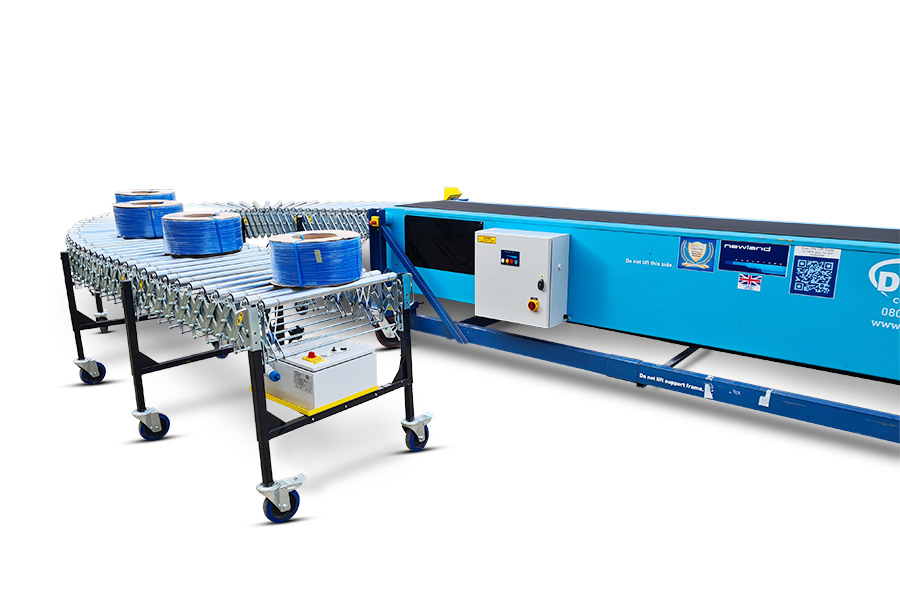

Stretch and bend your height adjustable powered roller conveyor to take your products wherever you need them. Cartons simply follow the twist and turn of the conveyor path without the need for side rails or engineered curves. Ideal for changeable product runs in dispatch, trailer or container loading / unloading, general warehousing and distribution centres.

Expand and compact the conveyor to suit your requirements - folds down to 2.62m and expands out to 7.5m

Ribbed steel side plate and welded braces on support legs for maximum strength and durability

Safely and easily move the conveyor with the large steel handle providing a positive grip point and lockable castor wheels on the stands.

Adjustable height - simply turn the locking knob to raise or lower conveyor bed height

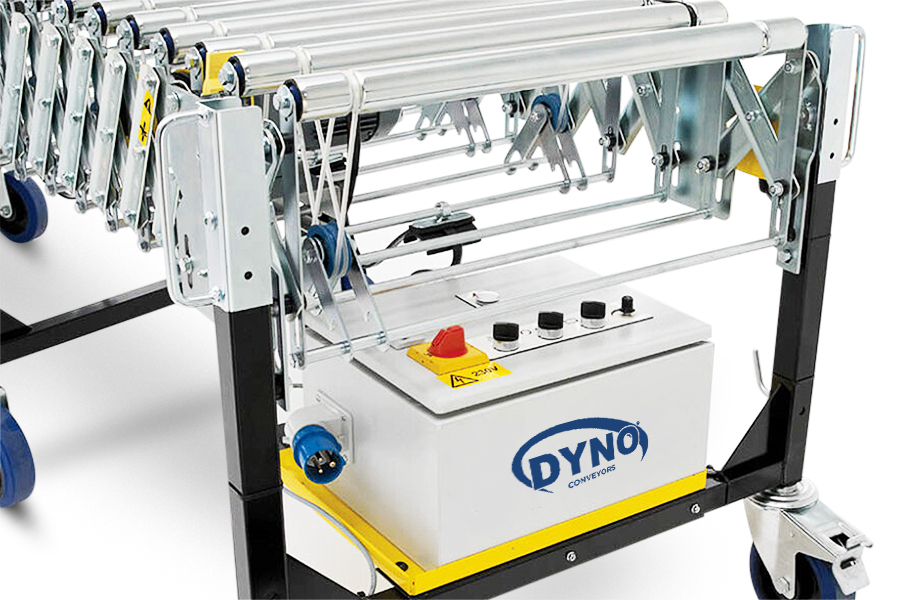

✔ Motor overload protection - all drive motors have individual overload protection and LED warning to clearly indicate trip out.

Brand:

Features, Benefits & Uses

Features & Benefits

  • Flexible & Compact: Expands to 7.5m, compacts to 2.62m, and bends to suit various paths.
  • Strong & Durable: Ribbed steel side plates and welded braces ensure maximum strength.
  • Easy to Move: Features a large steel handle and lockable castors for safe, simple repositioning.
  • Adjustable Height: Quickly alter conveyor bed height with a locking knob.
  • Product Protection: Optional zero-pressure accumulation prevents product damage.

Uses

  • Dispatch areas
  • Distribution centres
  • Mobile assembly lines
  • Truck/Container loading and unloading

Specifications

Dimensions

  • Width: 600mm
  • Total Length Expanded: 7,500mm
  • Total Length Compacted: 2,620mm

Construction

  • High quality bright zinc plated steel side frames withpowder coated yellow steel handles and welded braces on
    stands.
  • Fully bolted design

Rollers

  • Ø40mm Zinc Plated Steel with Precision Bearings. Located with tag washers to ensure roller tension.
  • Roller Pitch: 125mm (when conveyor is fully expanded)

Stands

  • Support Legs: 7
  • Working Height: Adjustable from 790mm – 1120mm
  • Castors: Ø160mm lockable heavy duty castors

Motors

  • SEW Eurodrive AC Motors 0.09kW for 230V 3 Phase 50HZ supply with motor overload protection. All steel electrical
    control cabinets sealed to IP55 standard.
  • Transport Speed: 10 – 40m/min

Load Requirements

  • 150kg per lineal meter
