Miniroll | Gravity Roller Conveyor

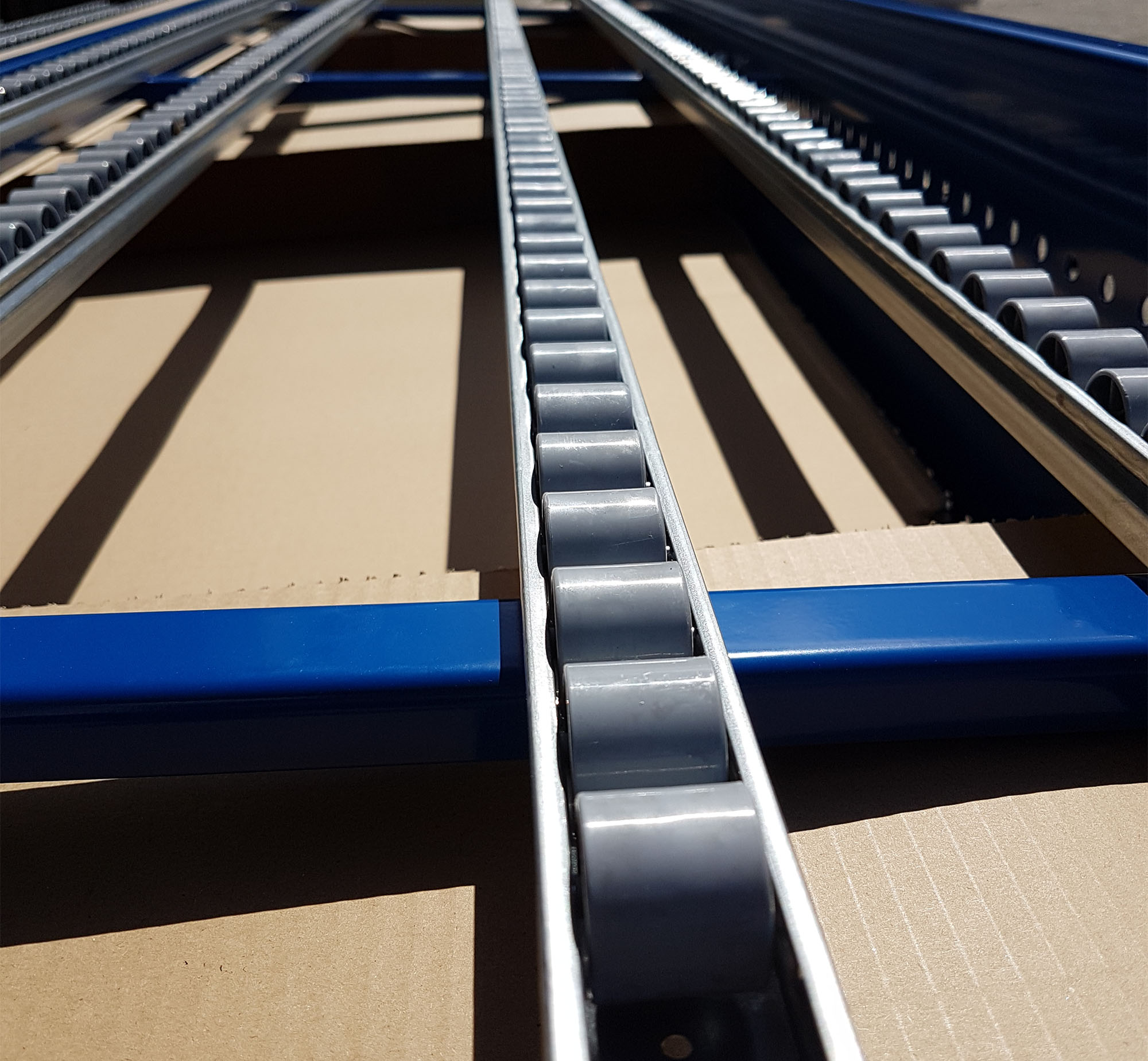

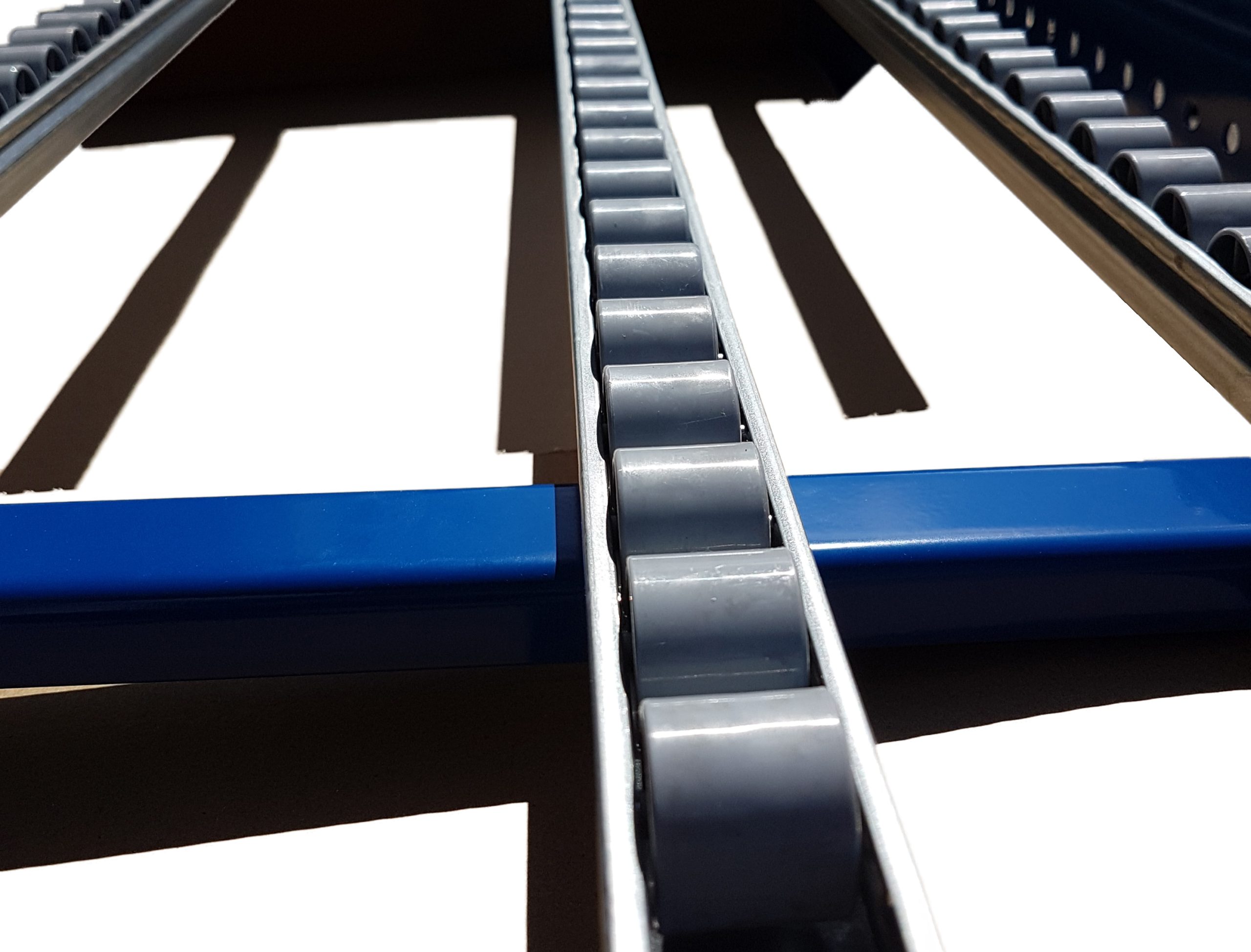

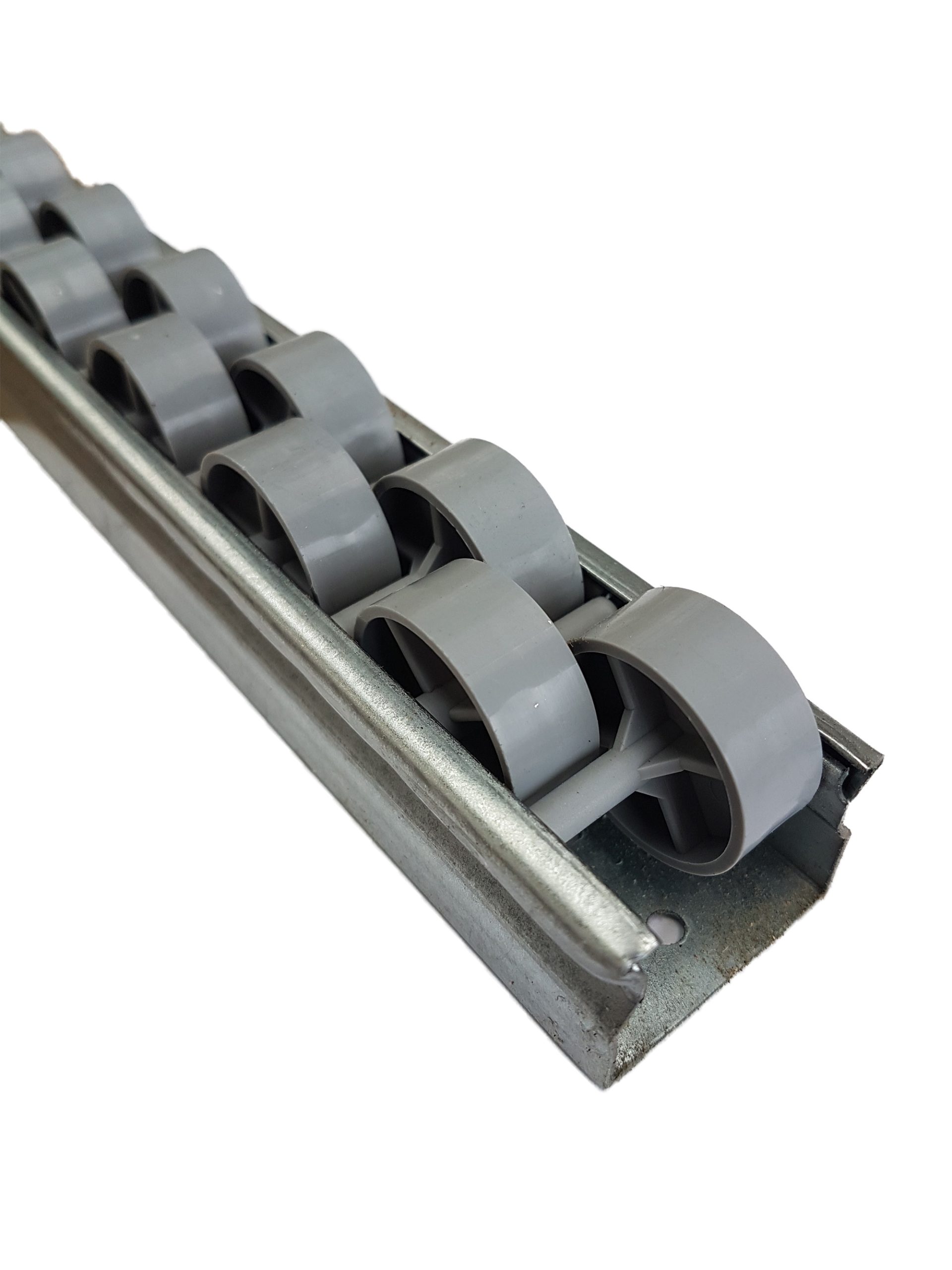

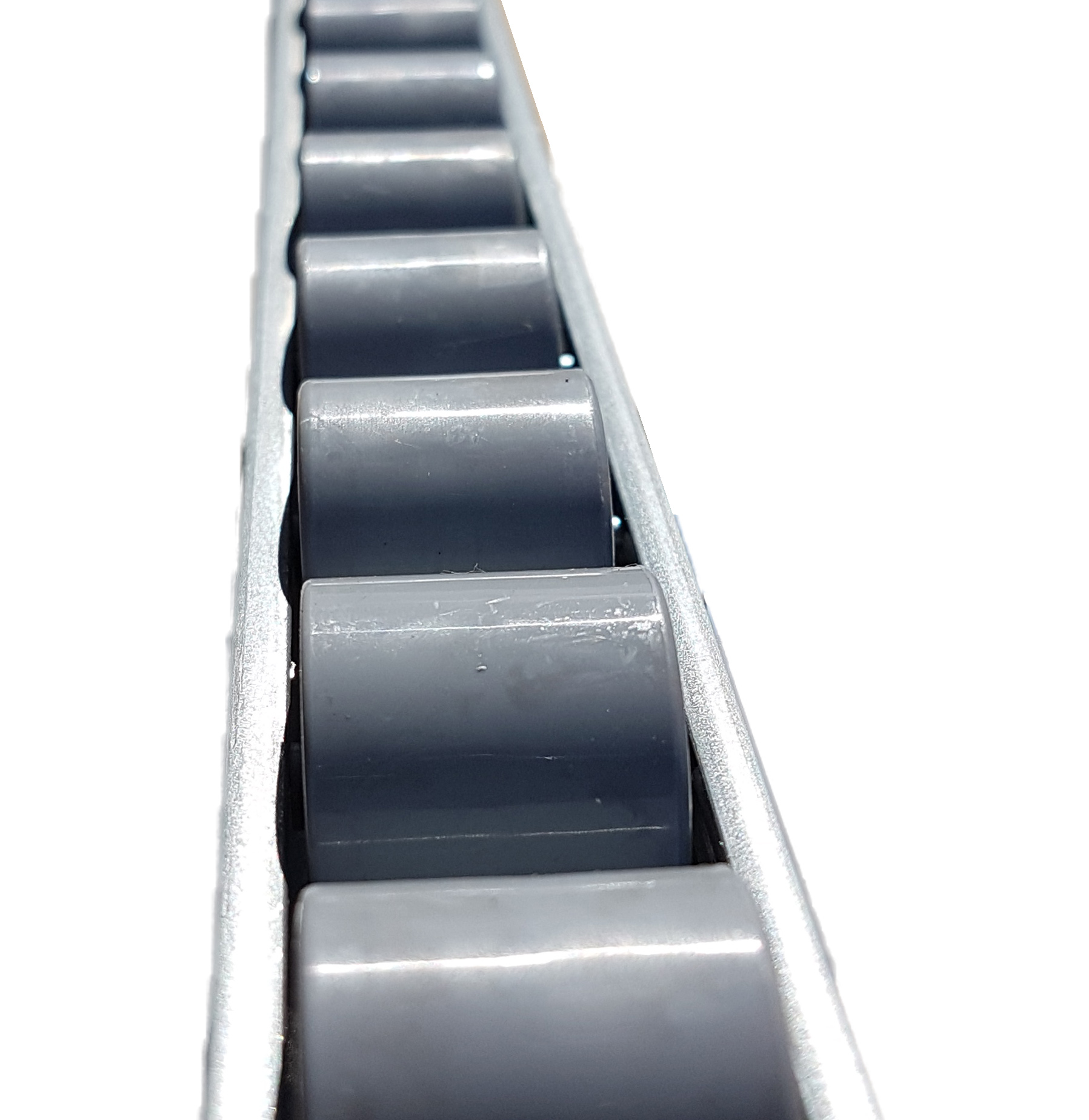

Streamline your product handling with Miniroll Wheel Track. A simple, innovative and cost-effective system designed to improve carton flow and optimise storage space. Popular for use in live pallet racking applications and first in first out (FIFO) storage systems, this robust wheel track is easy to install to instantly improve efficiencies.

Easy to install

Durable

Quick ROI

Brand:

Features, Benefits & Uses

Features & Benefits

  • Easy to install – comes in standard 2.4m lengths with a range of accessories available for you to easily mount in place.

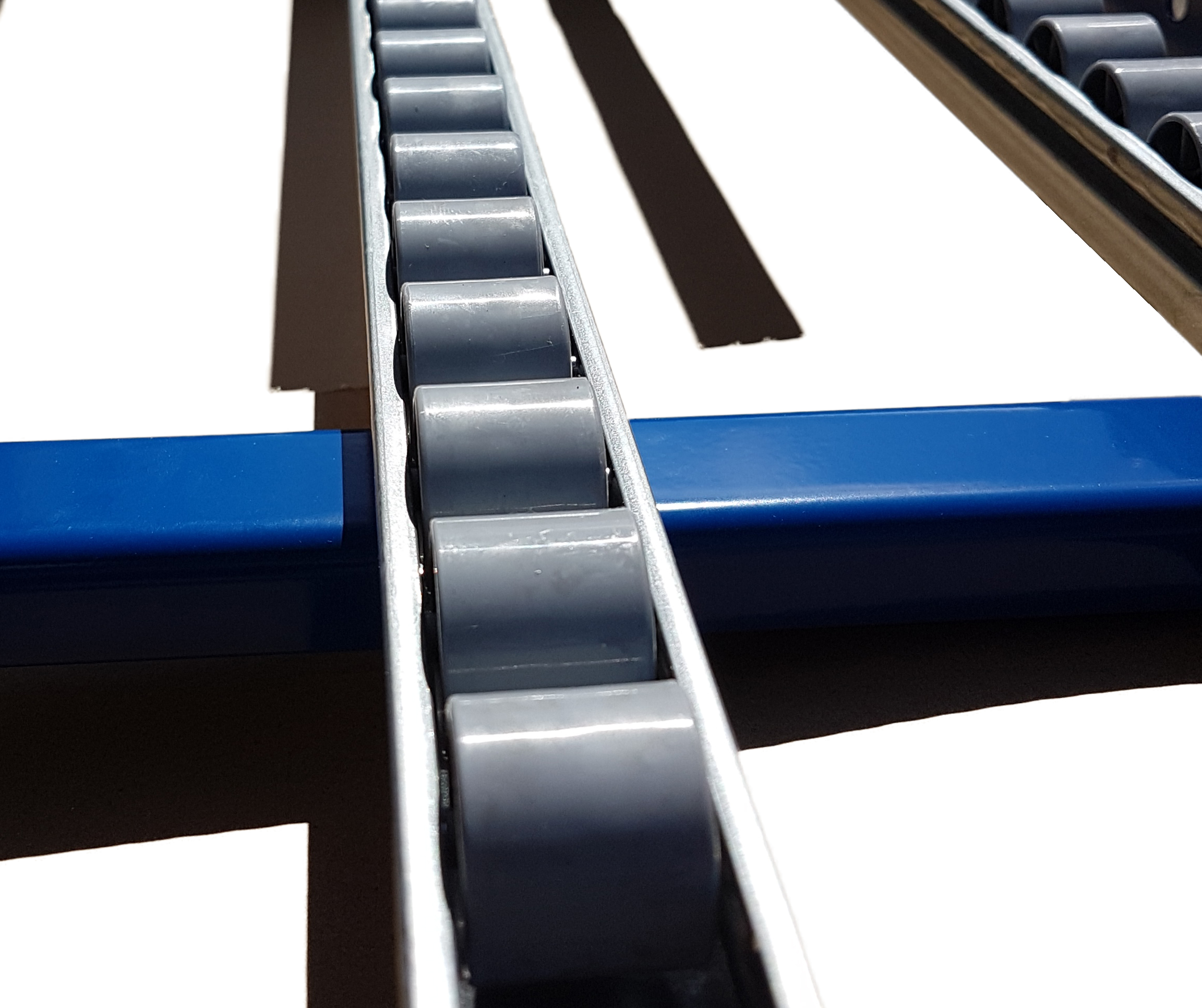

  • Durable – robust galvanised steel track with zinc plated steel axels for longer wear.
  • Optimise storage space – free running polypropylene wheels you can easily store goods in hard to reach places.
  • Quick ROI – with very little set up cost, you can almost instantly begin to experience teh benefits.

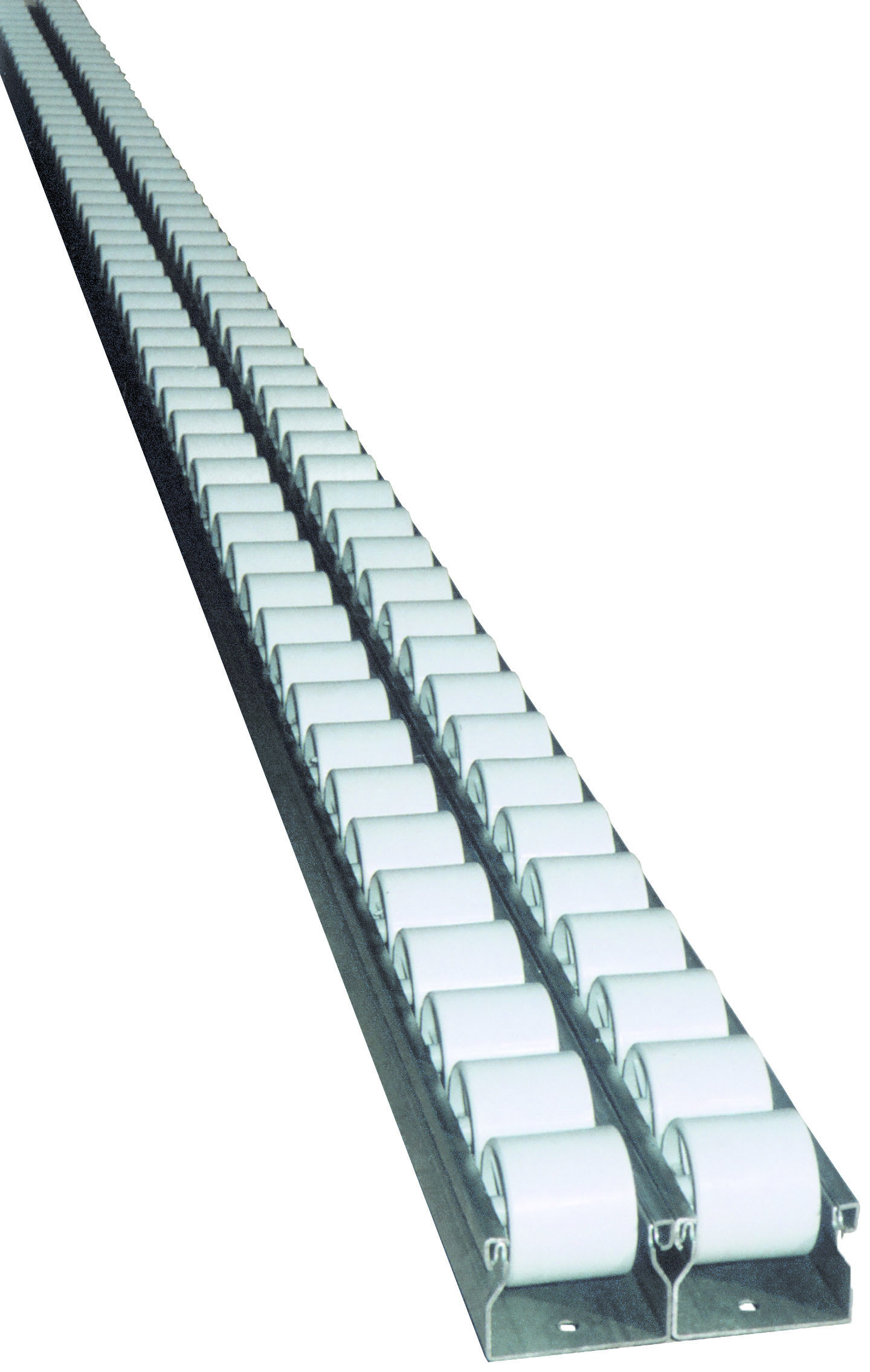

  • Move cartons and product efficiently with single or double wheel track available for small or irregular shaped products.

Uses

Commonly used in the below applications, the options are virtually endless:

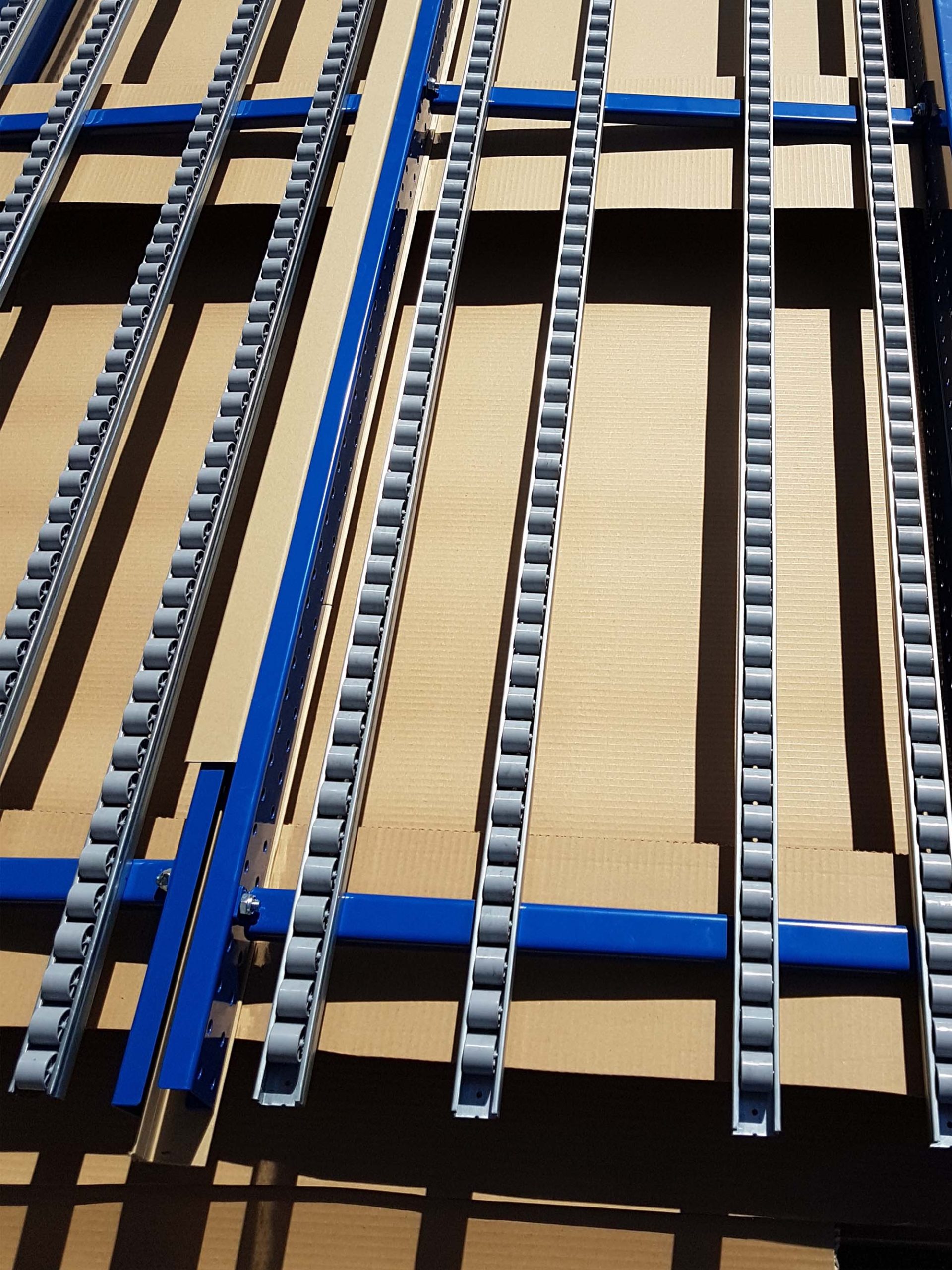

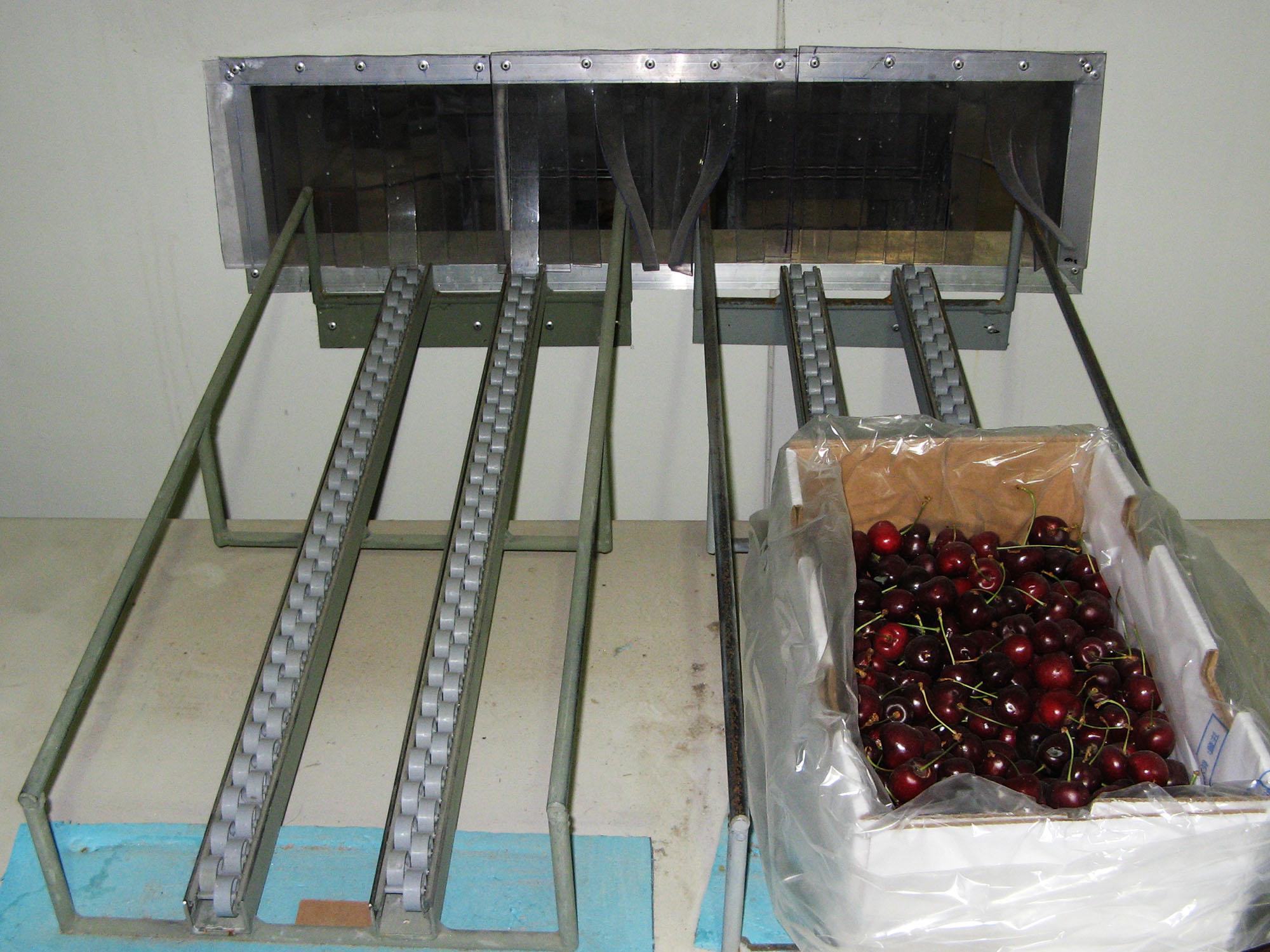

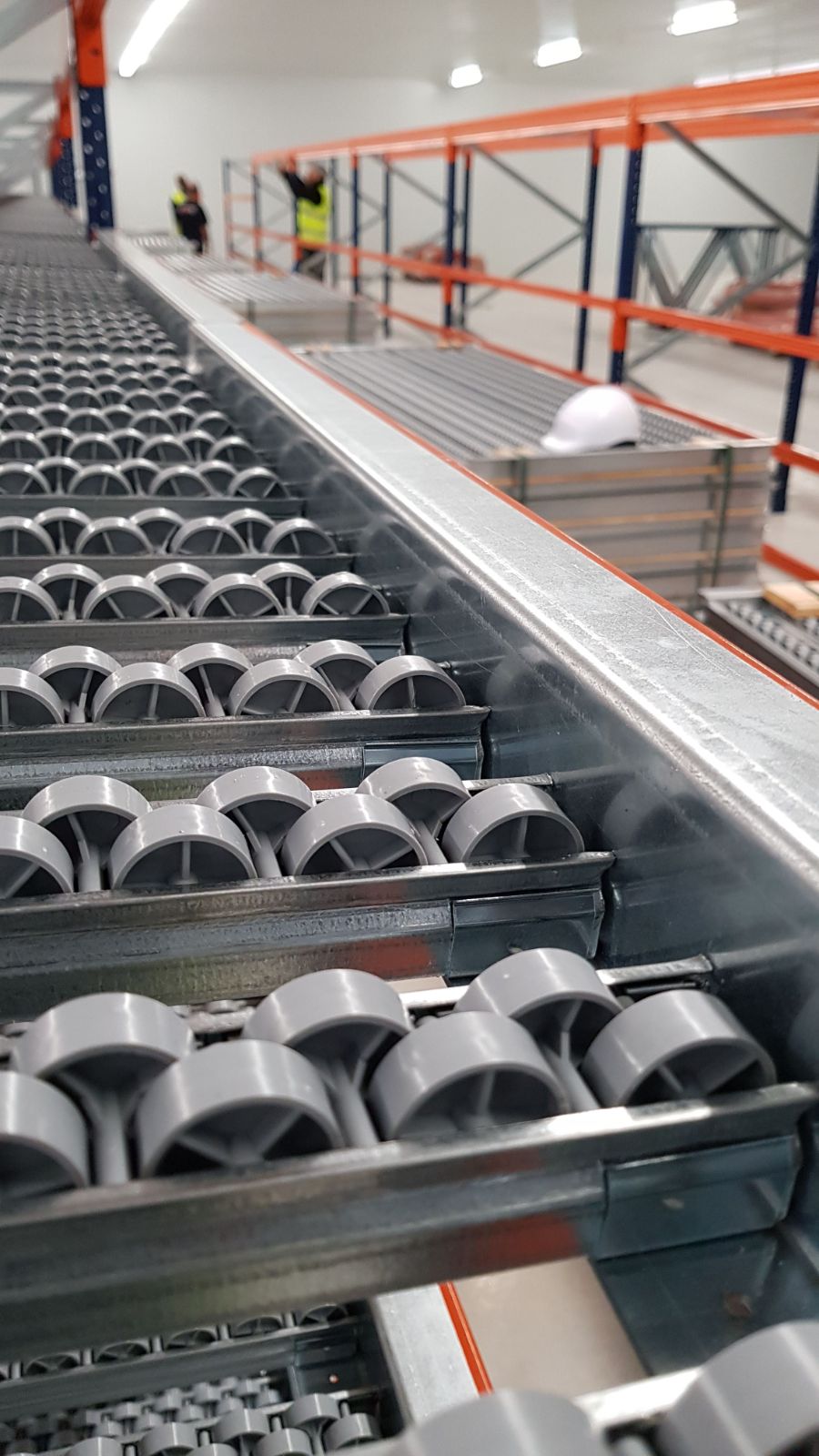

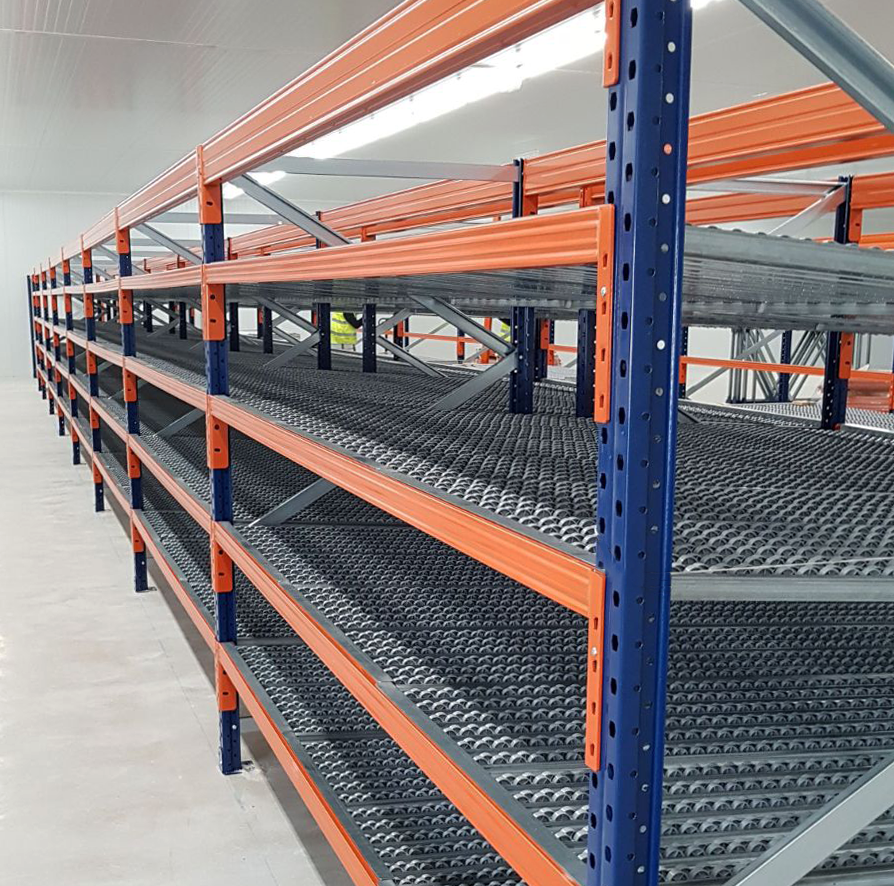

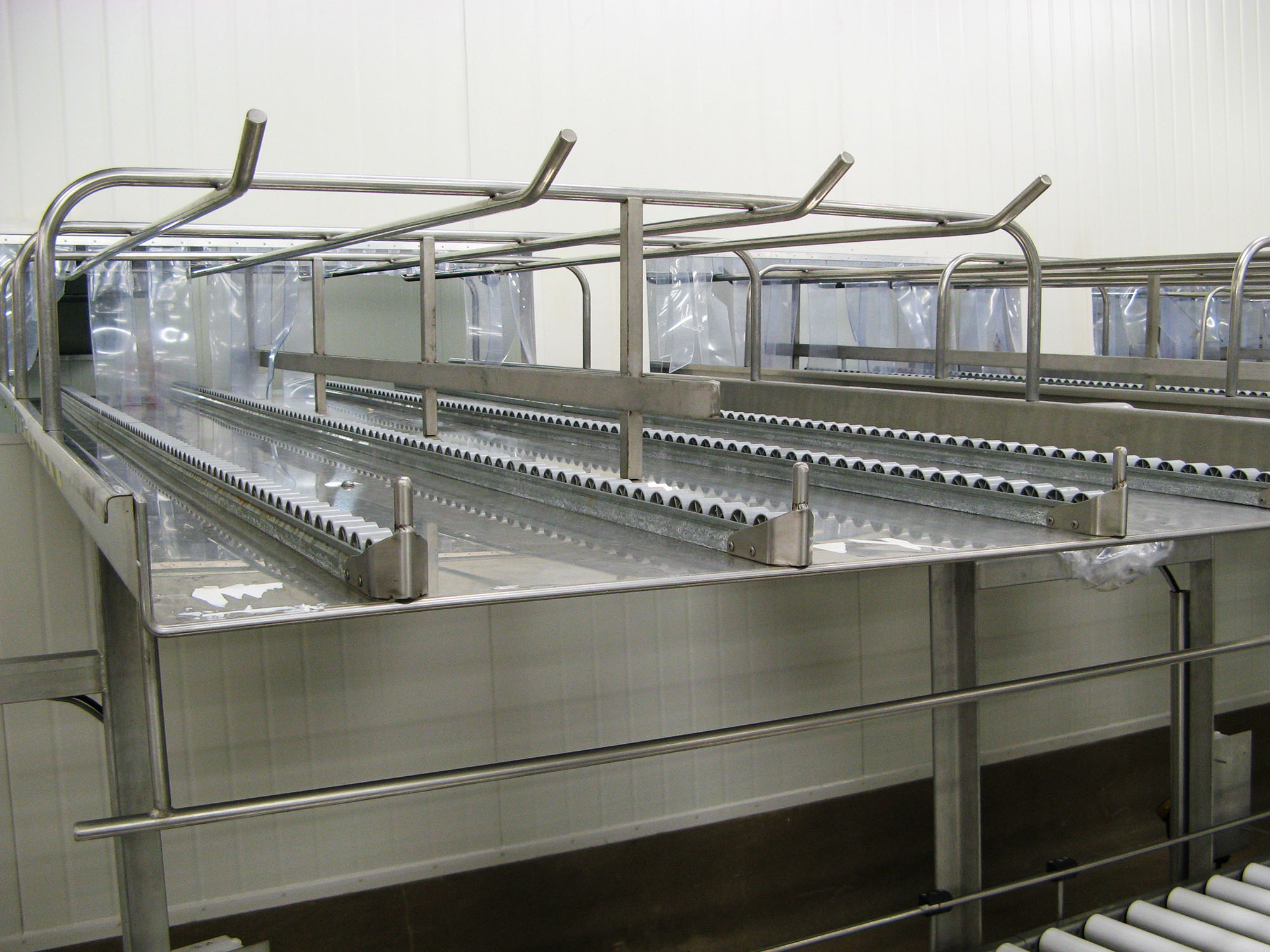

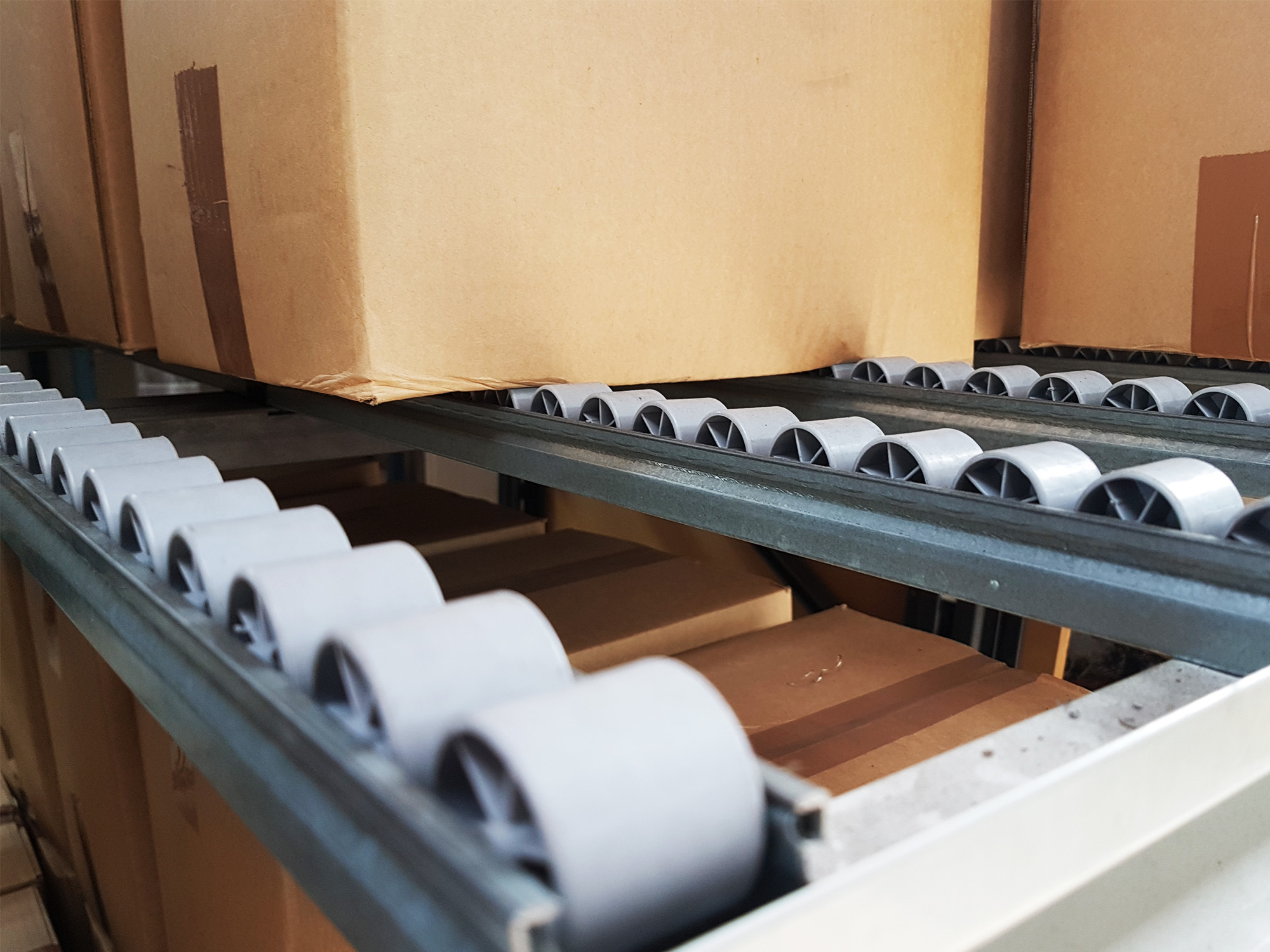

  • Live Racking / Storage

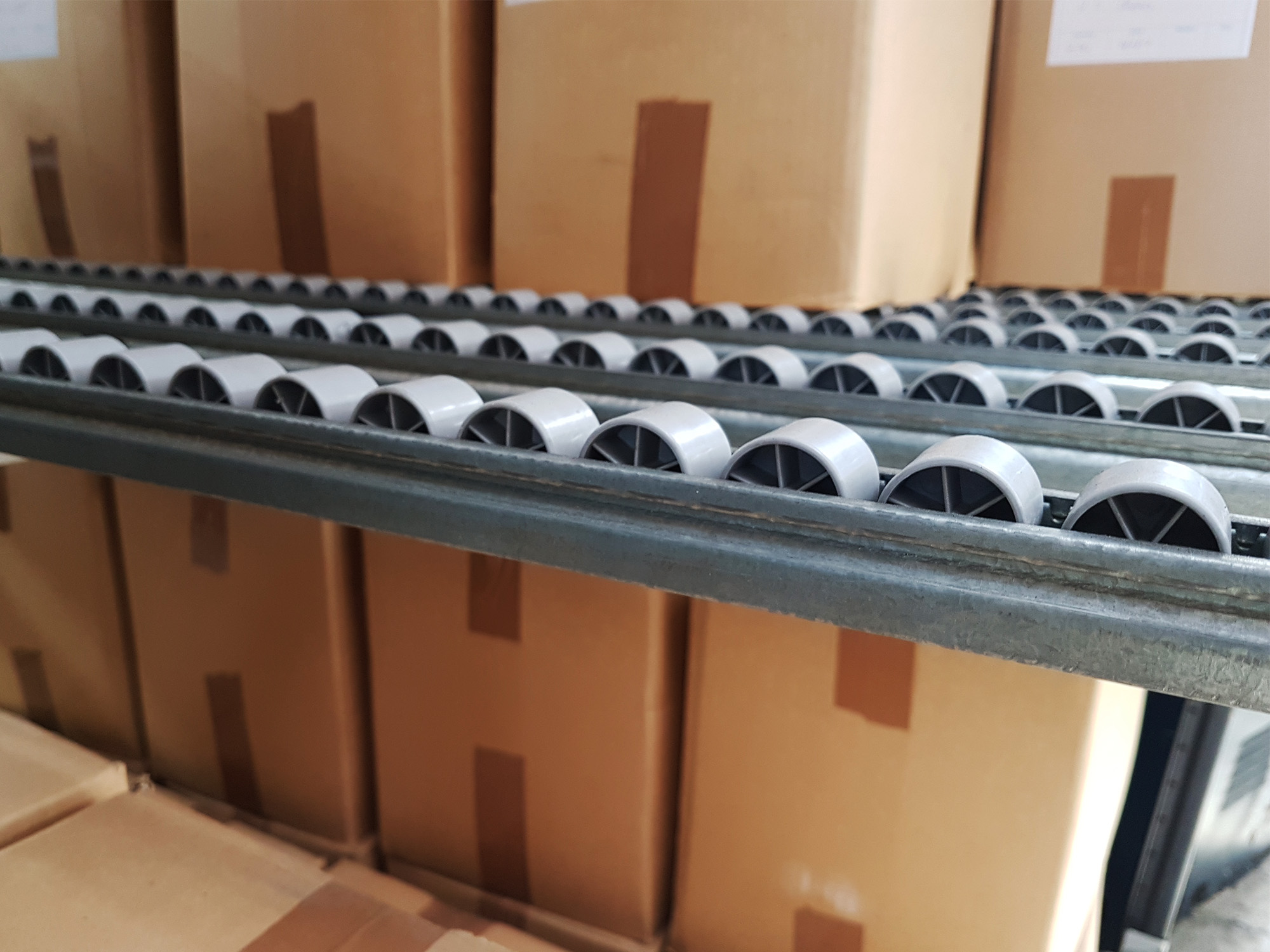

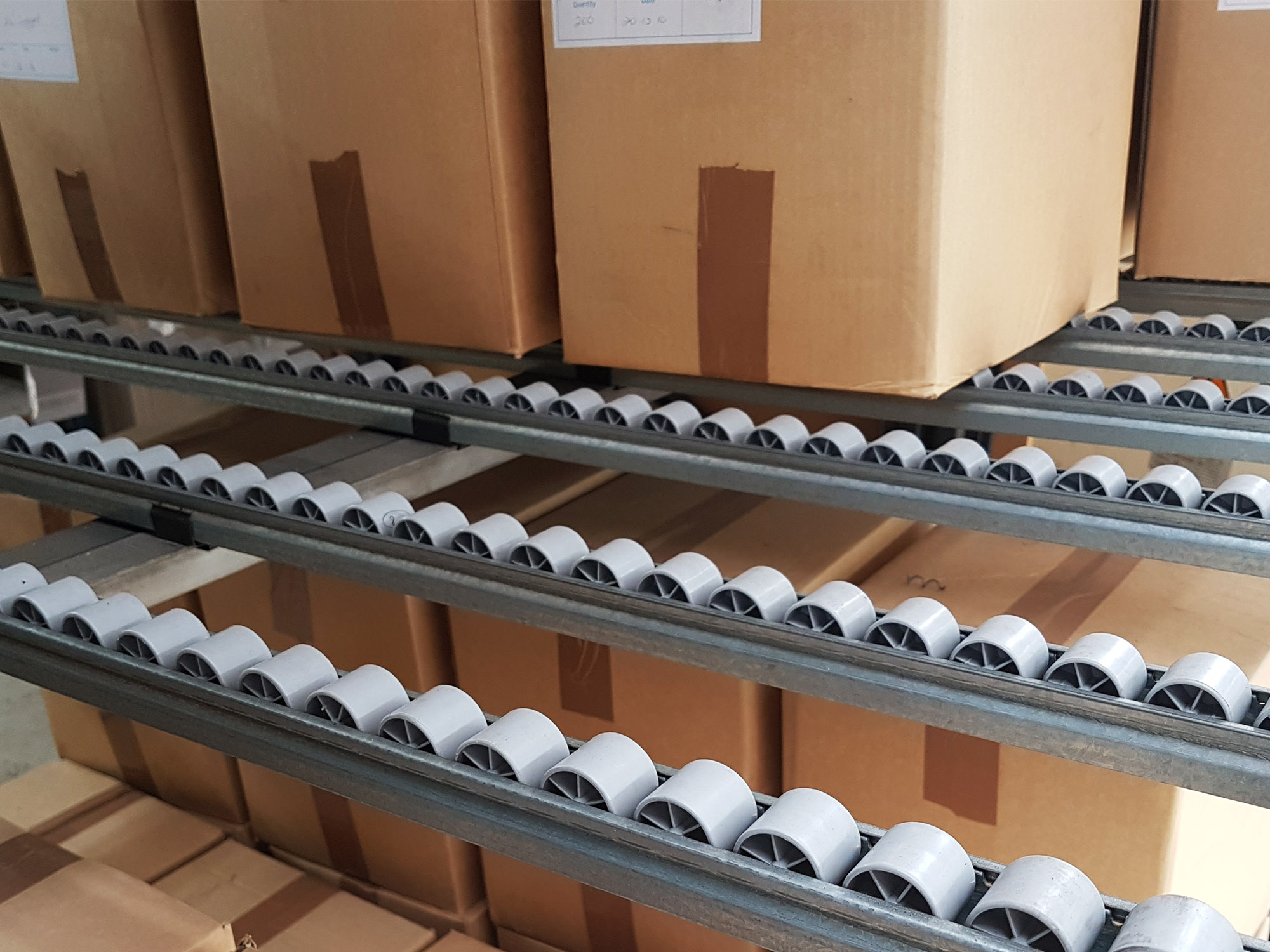

  • Package Handling and Carton Flow
  • First in First out (FIFO) Storage Systems

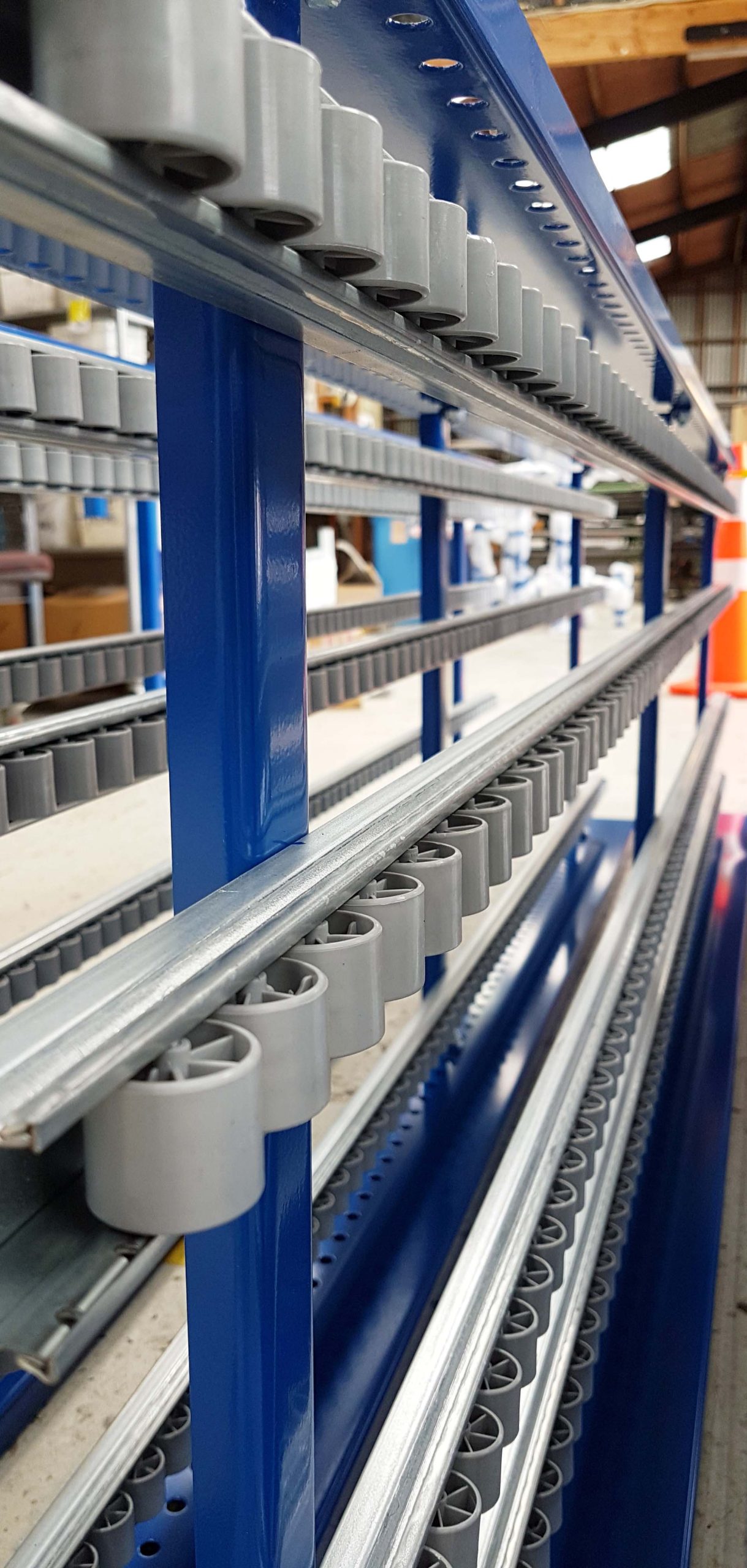

  • Live picking shelves
  • Empty carton transfer
  • Communication between workstations
  • Side guide rails
  • Flow of material onto machinery
  • Supply to assembly tables

Specifications

Dimensions

  • Length: 2376mm
  • Width: 36mm
  • Height: 35mm (top of wheel)

Frame Construction

  • Galvanised Steel

Wheels

  • Ø28mm Polypropylene Wheels
    33mm Pitch (Standard

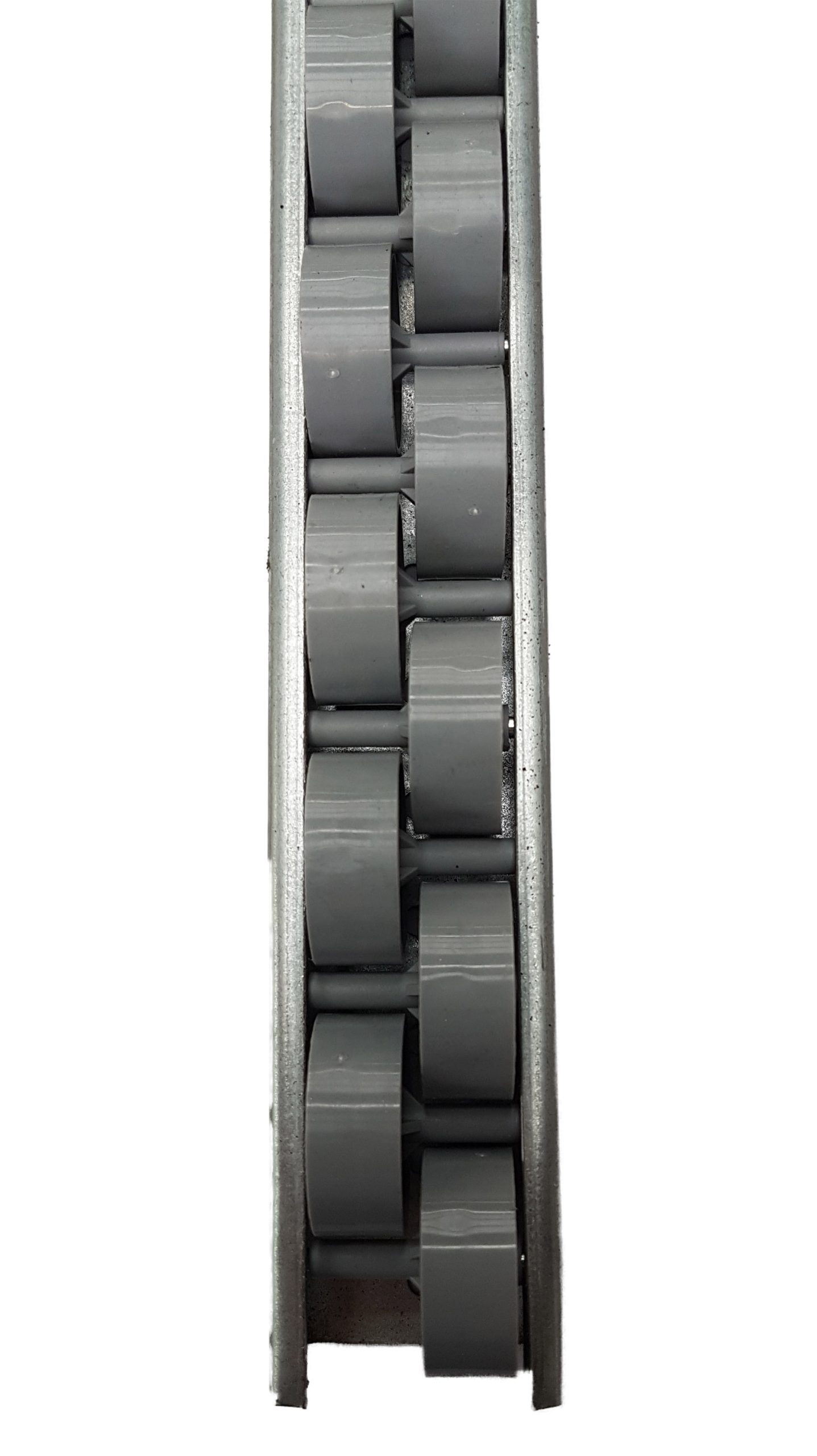

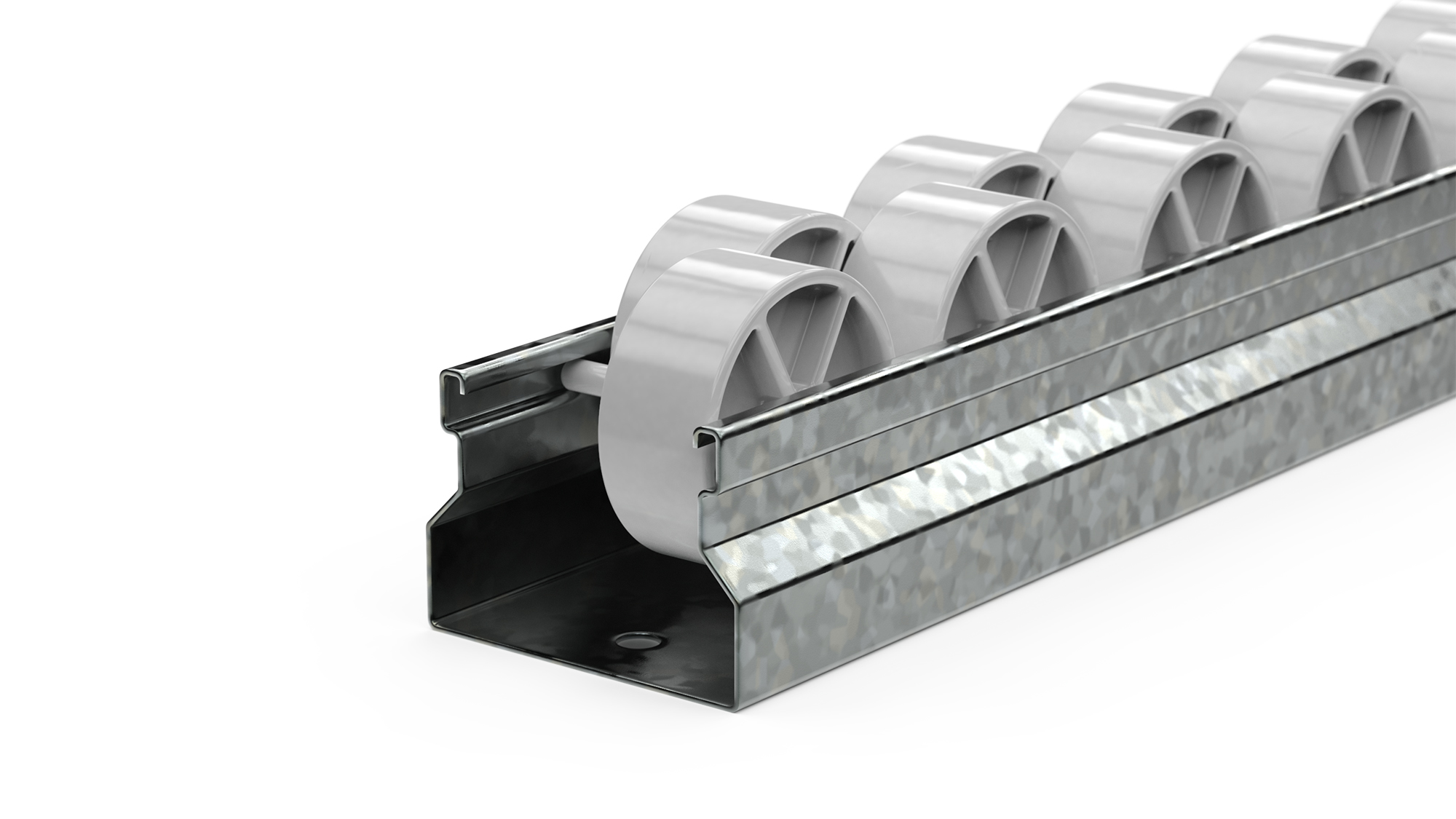

    16.5mm Pitch (Double)
  • Ø3mm Zinc Plated Steel Axels

Max load per wheel 20kg

Optional Extras

  • Non-Return – Prevents goods from rolling backwards
  • Mounting Clip – Attaches to cross bars from 2-4mm thick

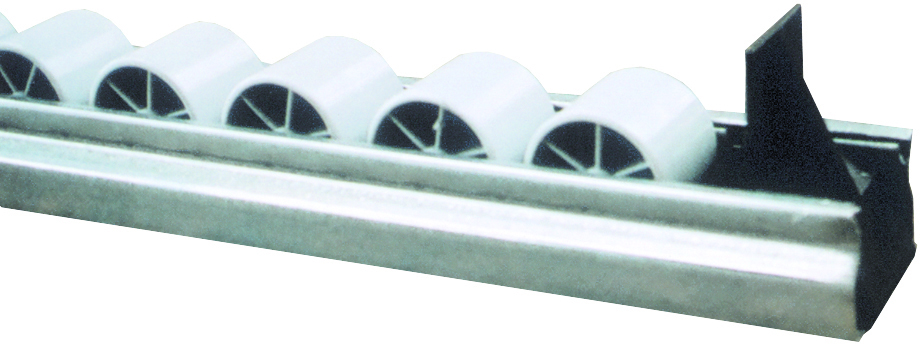

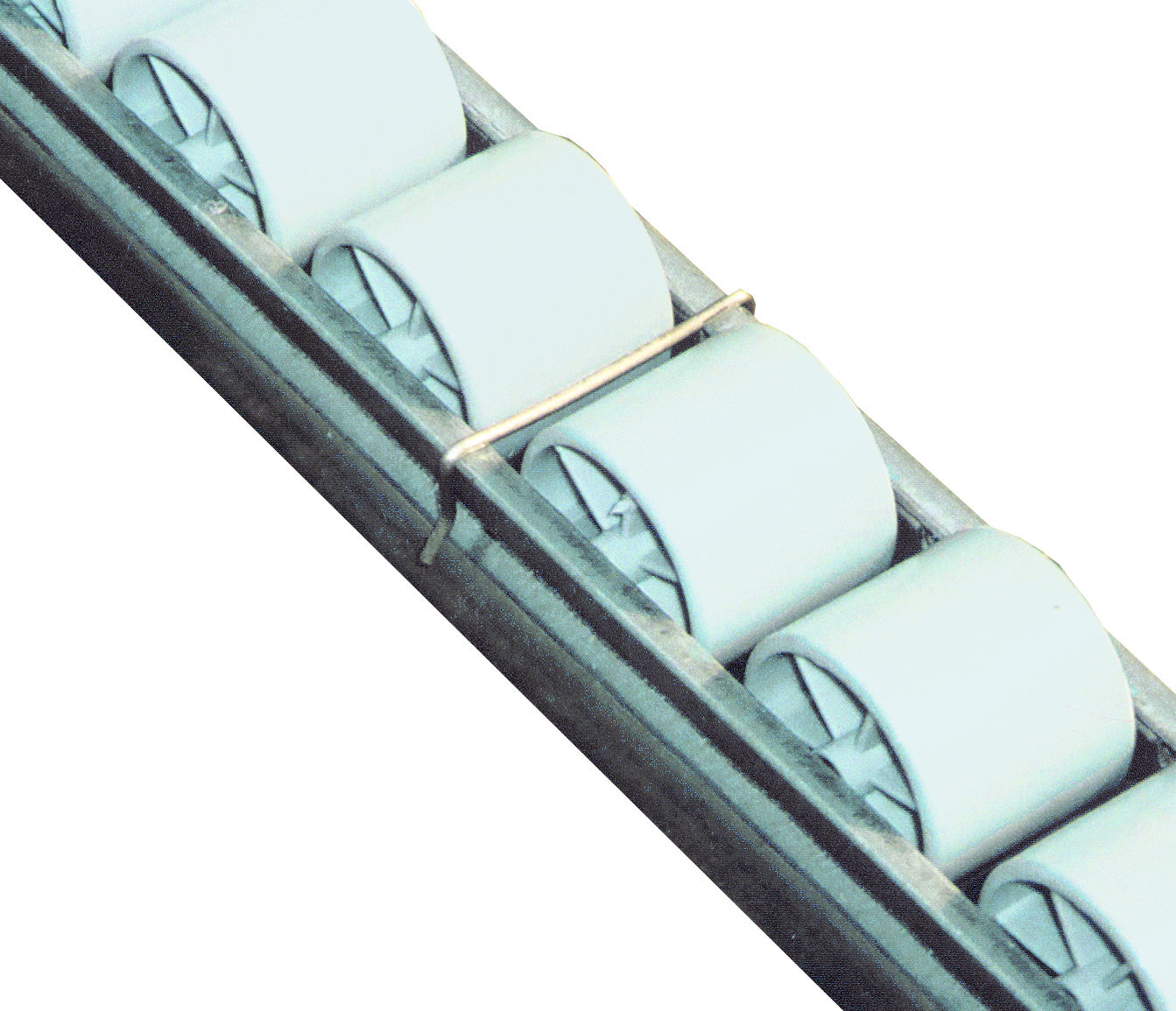

  • Strengthening Clip – Prevents channel opening under heavy loads

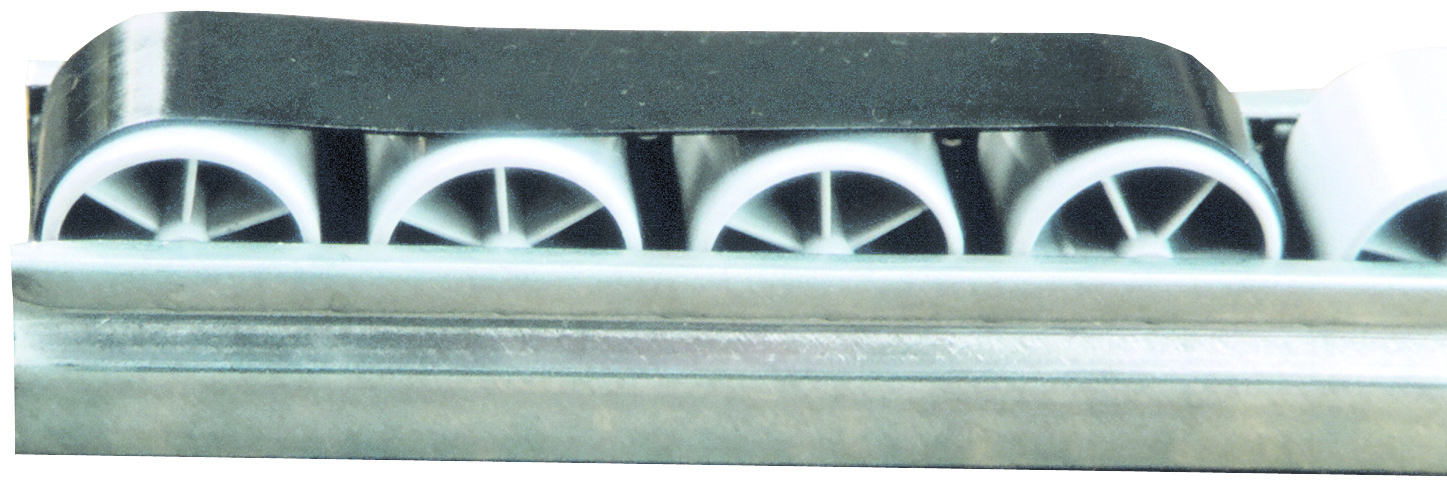

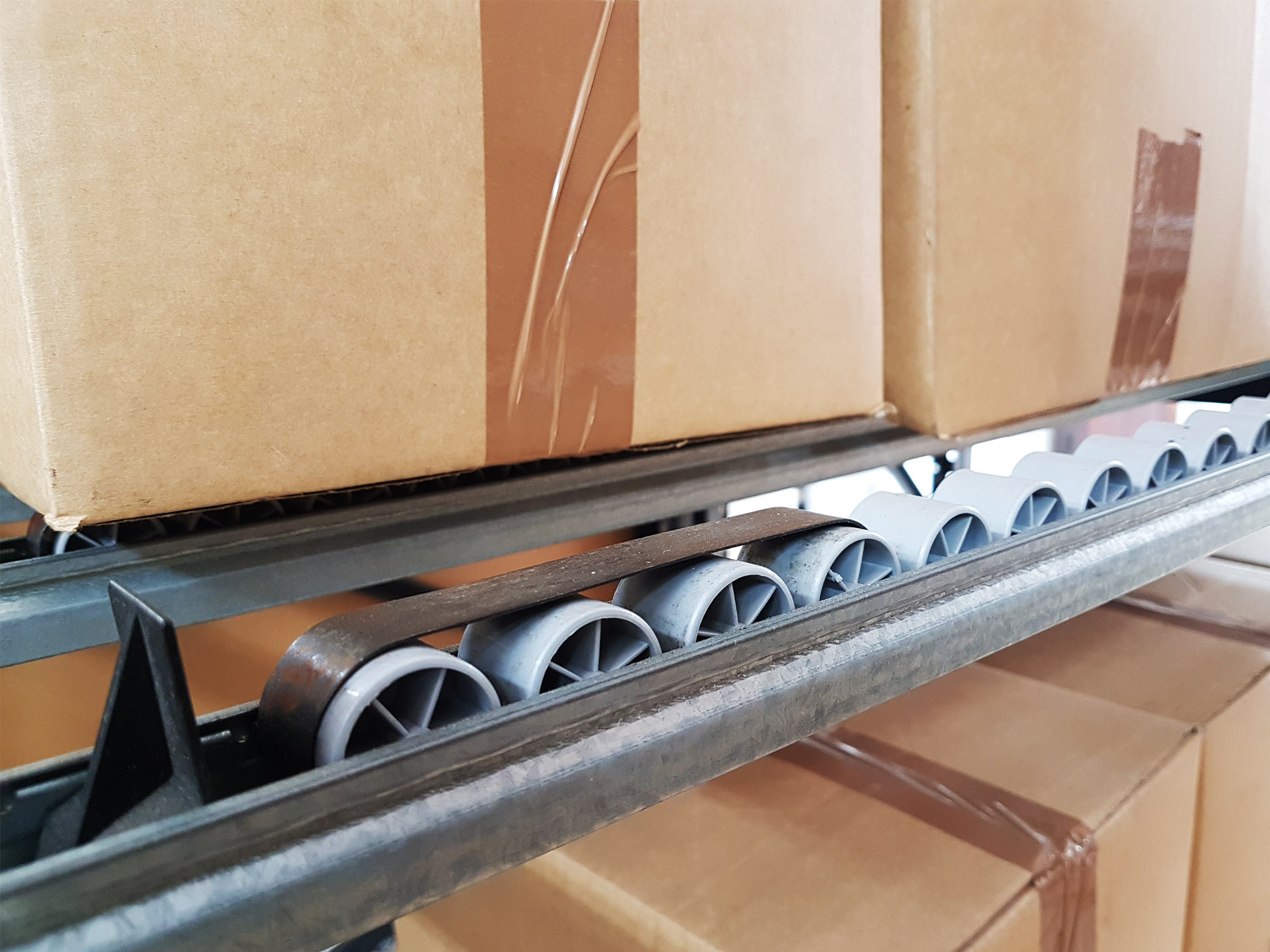

  • Braking Ramp – Adds friction to slow down product flow
  • Joiner – Join tracks together and easily keep in line

Load Rating

Span with two supports (mm) Max Load per Rail (kg)
600 70
700 50
800 40
900 30
1000 25
1100 20
1200 18
1300 15
1400 12
1500 10



Span with more than two supports (mm) Max Load per rail (kg)
570 100
660 80
800 70
1000 50
1330 25
