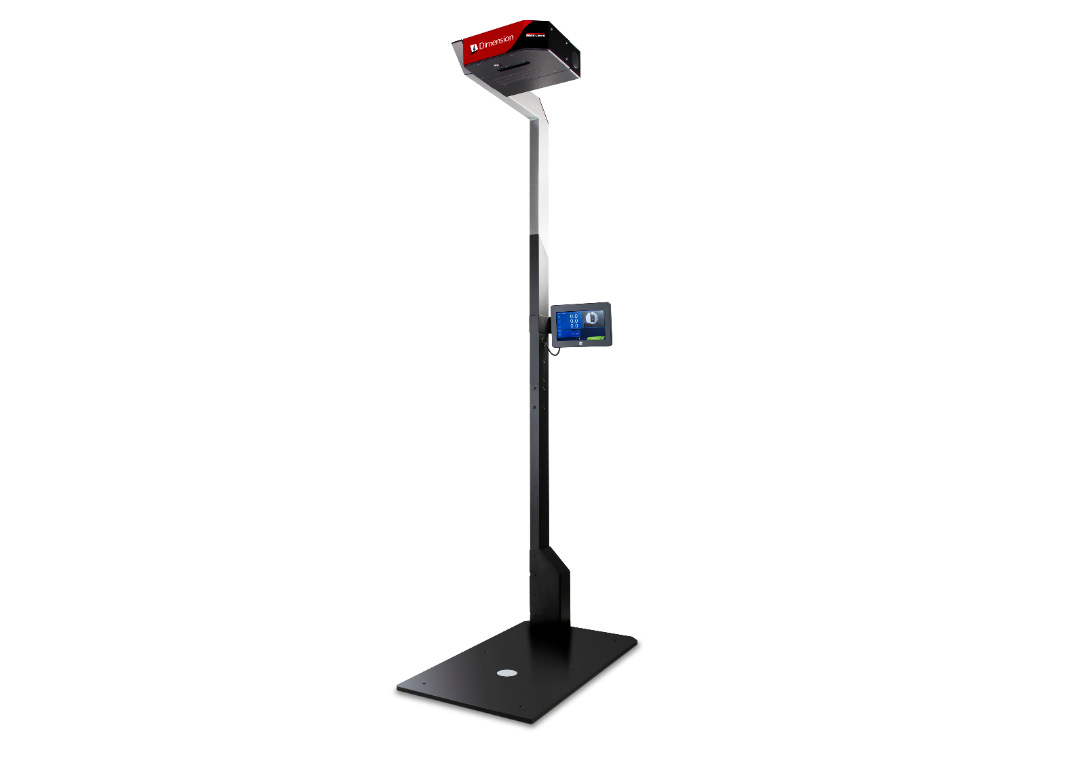

iDimension® Plus Static Dimensioning System

Features & Benefits

• Lightning Speed, captures dimensions and weight in and industry-leading 0.2 seconds.
• Cost control, prevent revenue loss by providing accurate dimensions and weights to avoid under ticketing charges from couriers.
• Ease of use, requires virtually no special alignment of special handling while placing a package to increase throughput with adjustable scan zone.
• Versatile, capable of measuring irregular-shaped packages like cylinders, spheres, tubes and polybags along with cartons.
• Innovative technology, using multiple patented 3D imaging technologies with advanced algorithms to optimise time and throughput for static outbound shipments.
• Instant feedback, a colour touch screen display provides instant feedback including a live image, measurements and weight (if scales directly attached) to the operator.
• Easy installation, start using the iDimension Plus within 30 minutes of unboxing with an easy-to-use setup wizard. Simply connect to the web-based interface to begin harnessing advanced configuration and communication settings.
• Flexibility, add scales to start capturing parcel weights as well with a range of scale options to suit every application.

Specifications

Physical Dimensions: 63.5cm long x 56cm wide x 162cm high. 13kgs.
Power Requirements: Single power source 110 – 240v external power supply, power cord
Object Colours: All opaque packaging
Measurement Time: 0.2 seconds, scale setting times vary by manufacturer
Operating Temperature: 0°C to 30°C
Humidity: Non-condensing
Mechanical Environment Class: M1
Electromagnetic Class: E1
I/O Ports: 1 USB Type A Port (interface to scale)
1 10/100/100BASE-T Ethernet port (interface to PC)
Software Integration: API and SDK files available for network device integration
Package Contents: iDimension Plus, calibration object, USB display and power cord
Warranty: One-year limited warranty
Approvals: NTEP CC FCC

Options

USB barcode scanner with keyboard wedge emulation will manually trigger dimensioning.
Shipping scales to weigh parcels.
