DynoDrive 24v DC POP-UP 30°/45° diverter module - Itoh Denki

DynoDrive 24v DC POP-UP 30°/45° diverter module – Itoh Denki

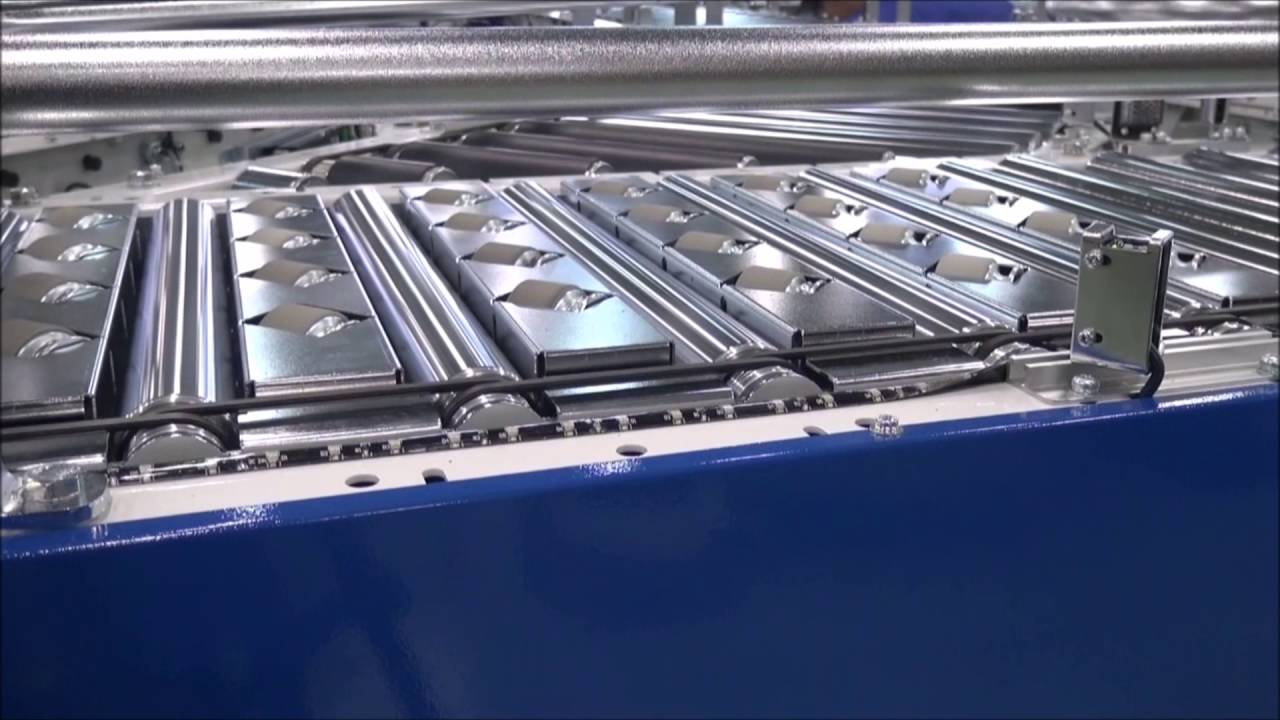

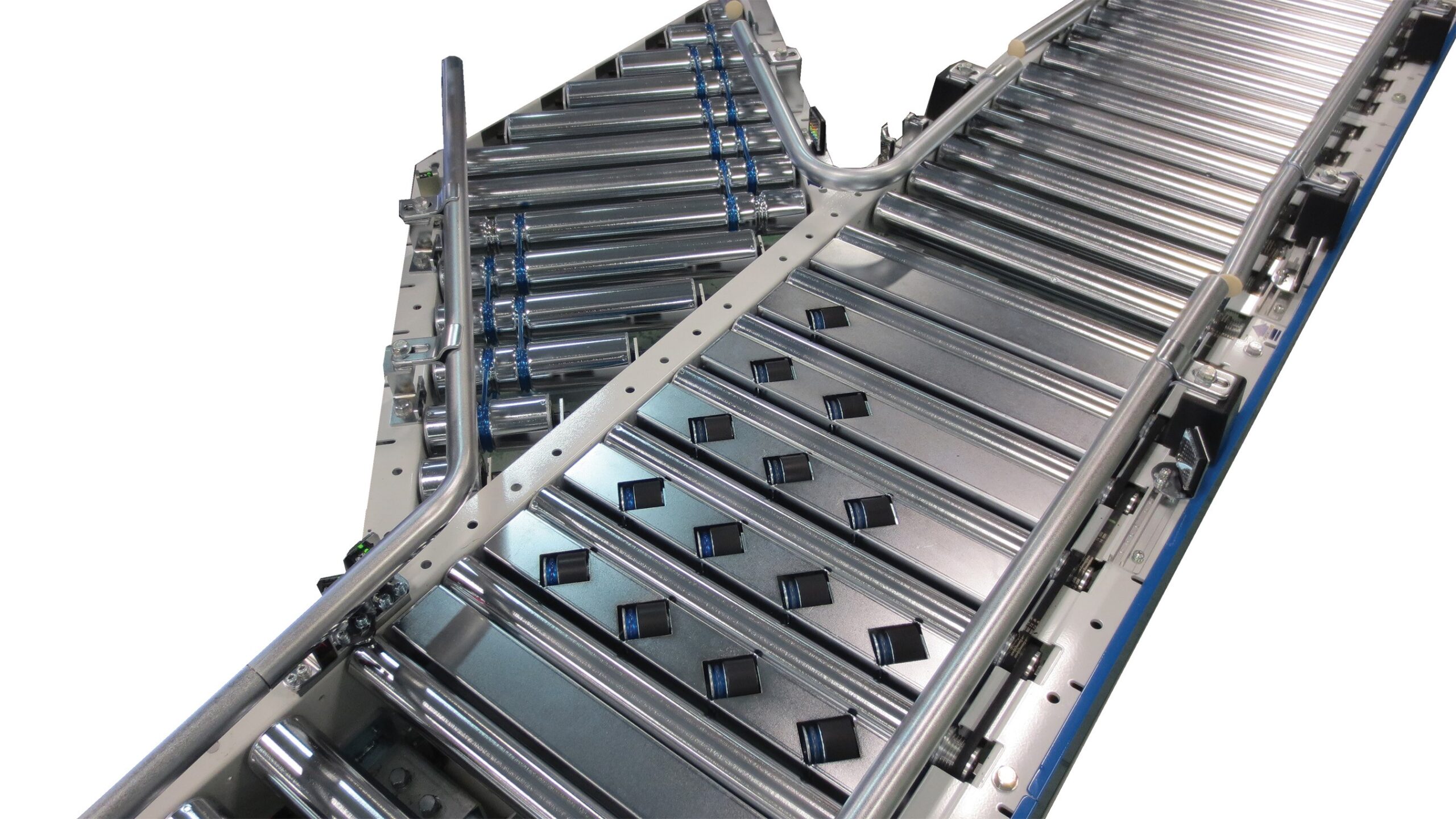

Operating at a safe low voltage, the POP-UP diverter module will transfer your product quickly, quietly, and smoothly. It offers high capacity lateral transfers at either 30° or 45°. With a compact cassette structure , it can be easily fitted into most conveyor frames. Being a complete module means easy integration within any conveyor to upgrade and automate routing, sorting, or merging processes.

✔ Transfer and divert various product types and sizes up to 30 kg.

✔ Flexibility - Easily integrate within most types of conveyors, fitting into existing conveyor frames.

✔ High speed sorting and transferring solution - The module can achieve a divert transfer speed of up to 90 m/min (at 45°).

Dyno Conveyors is a proud partner and exclusive distributor of Itoh Denki, the Japanese world-leading specialist in motorised drive roller (MDR) based material handling technologies.

Request a Quote

"*" indicates required fields

Facebook

This field is for validation purposes and should be left unchanged.

First name*

Last name*

Email*

Phone*

Company name*

Job title*

Country*

City*

Industry*

Products

Product

Quantity

Notes

Message

Images (if applicable)

Drop files here or

Accepted file types: png, jpg, jpeg, heic, Max. file size: 25 MB, Max. files: 3.

CAPTCHA

Features, Benefits & Uses

Features & Benefits

Offers high capacity lateral transfers at either 30° or 45°.
The module uses 24V DC +/- 10% Brushless Motorized Roller technology, eliminating the need for pneumatics.
Transfers and diverts products up to a 30 kg maximum load weight.
The compact cassette design has a height of only 169 mm.
Transfers carton boxes or plastic trays that have a flat, smooth, and dry bottom.
Powered by three brushless MDRs for straight conveyance (M1), diverting (M2), and lifting (M3).
The module has very low noise due to its run-on-demand operation.
Maximum absorbed power is 147 W in nominal operation and 192 W on motor start-up.
The level difference between the diverter wheels and the rollers is 3 mm.

Uses

Routing, sorting, or merging applications.
Used on conveyor lines for order picking or distribution.
Used on assembly lines to adapt to logistics changes.
Integration into new or reconditioned rollers or belt conveyors.

Specifications

Transfer Angle 45° (with 30° as an option).
Transfer Direction Right or left (must be specified on order).
Power Supply Voltage 24V DC +/- 10%.
Maximum Load Weight 30 kg.
Diverter Speed Up to 90 m/min at 45° (adjustable).
Straight Conveyor Speed Up to 60 m/min (adjustable).
Height (H) 169 mm.
Length (L) 760 mm.
Circuit Boards Uses CBM-105-FP1-EU1 (for M1 and M2) and CBR-306FP-B (for M3).
Minimum Load Dimensions 300 mm x 300 mm.
Maximum Load Dimensions (W x L) Up to 600 mm x 650 mm for Size D.
Standard Sizes (W x L):
- Size A 394 mm x 760 mm.
- Size B 494 mm x 760 mm.
- Size C 594 mm x 760 mm.
- Size D 694 mm x 760 mm
