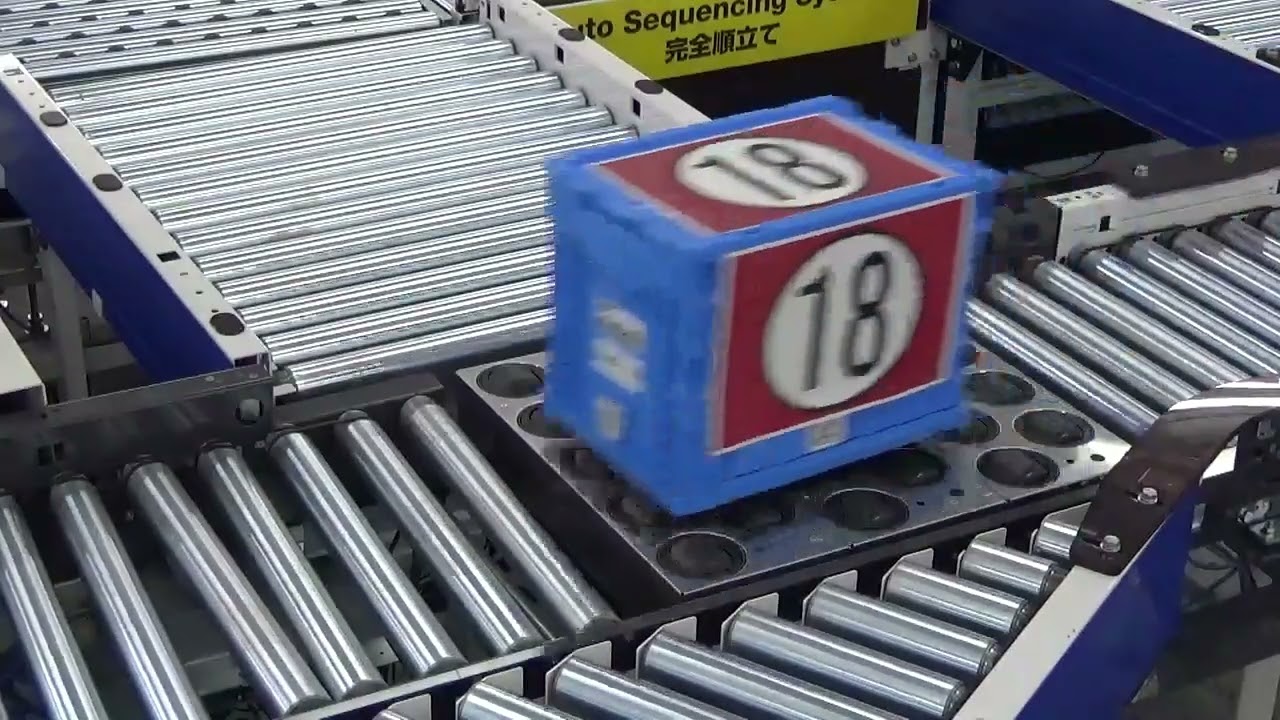

DynoDrive 24v DC MABS (Multi Angle Ball Sorter) – Itoh Denki

Features, Benefits & Uses

Features & Benefits

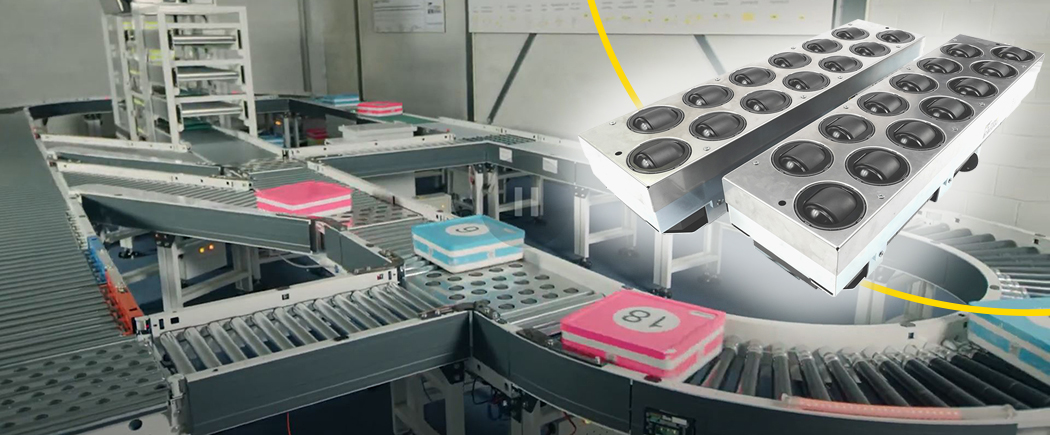

• Ready to Run Solution This is an all-in-one diverter module designed to control a multi-belt sorting system. Quick engineering can be achieved just by parameterising, without extensive programming.

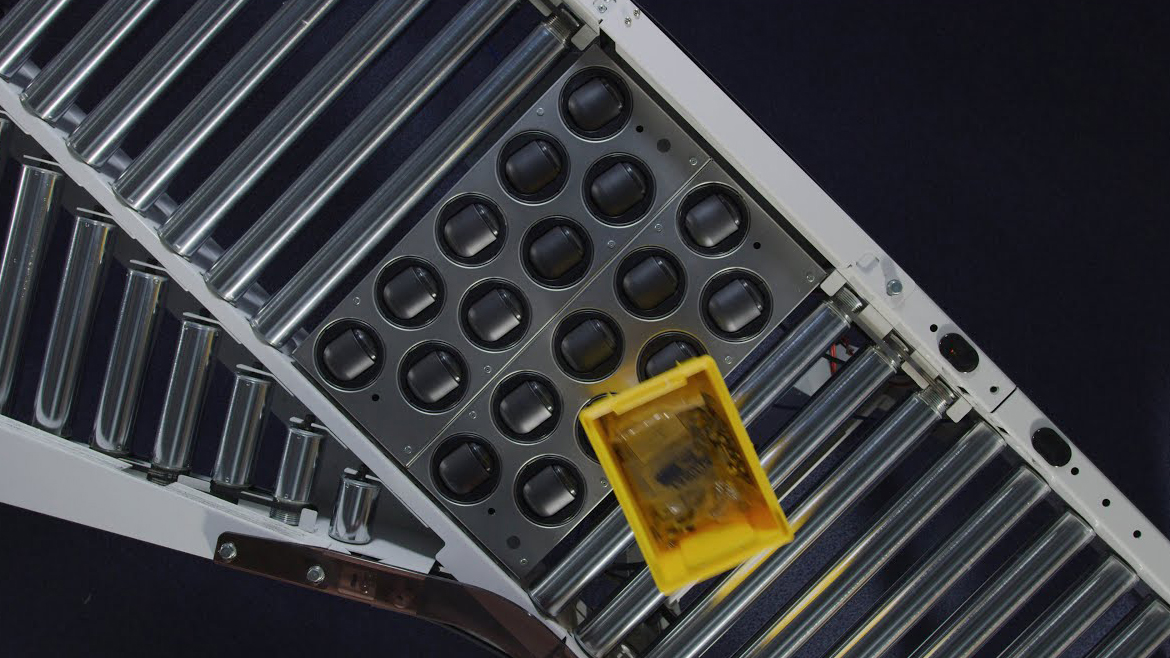

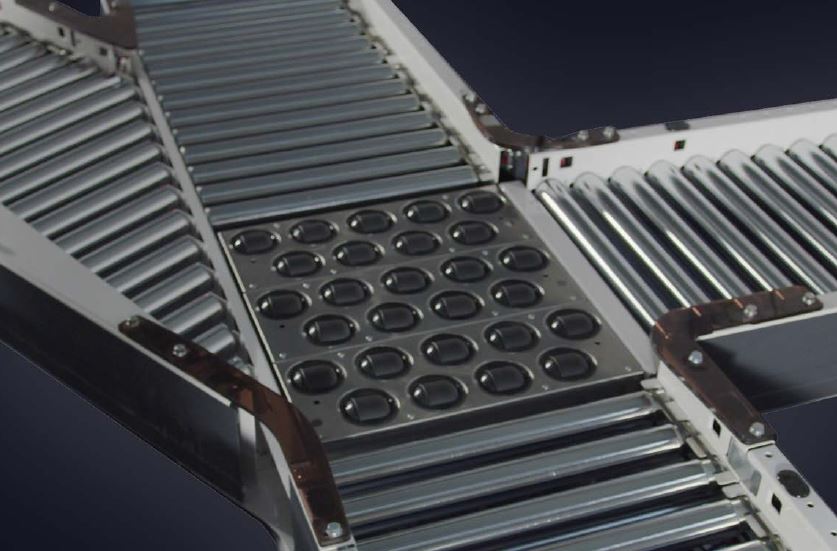

• Multi-Angle Flexibility The module can sort products to the left or right at a freely set angle, including 30°, 45°, or 90°8.
• Advanced Modular Control The modular concept allows for easy scalability, with each unit supporting its own 24v DC supplies and servo controllers, requiring only a main power supply and a Varan Bus communication cable for system integration.
• High Performance Achieves high throughput and offers a non-stop transfer sequence where the driving wheels anticipate the next parcel’s direction for a continuous flow. This prevents bottlenecks at heavy traffic points.

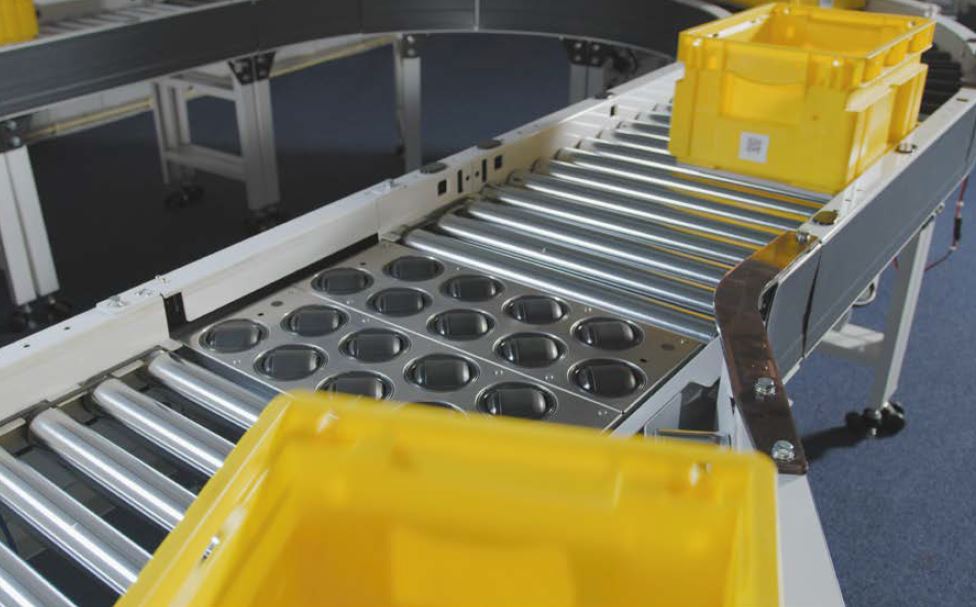

• Transfer Versatility Transfers a large range of packages, diverting small to large totes, cartons, and parcels up to 30 kg10.
• System Diagnostics & Safety Features integrated functionalities like collision monitoring and easy diagnostics. Includes built-in safety inputs such as Emergency Stop.

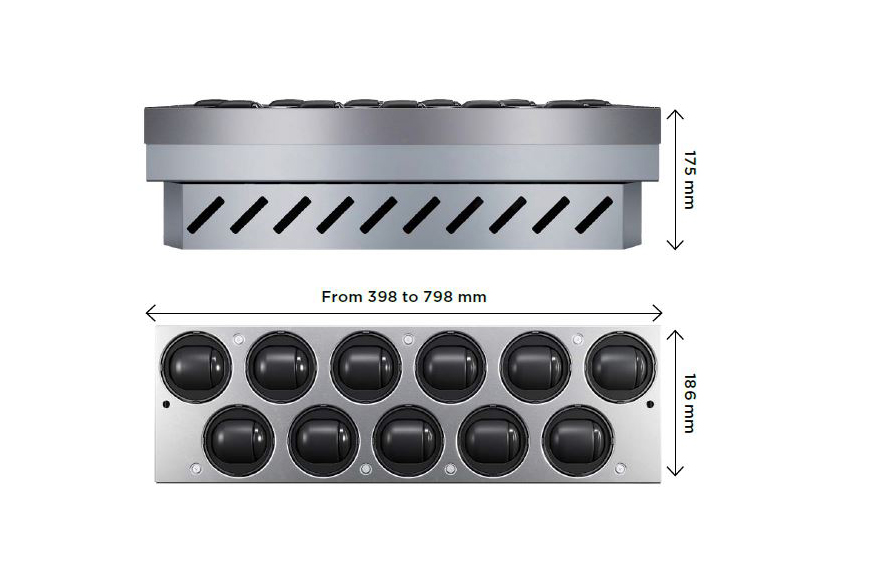

• Extra Compact Design The module has a thin profile of 175 mm height 11, making it perfect for overhead and multilayer conveyor lines.
• Easy Servicing and Maintenance Simple maintenance is ensured due to the pneumatics-free system and simple construction. Quick replacement on the line drastically reduces downtimes.

Uses

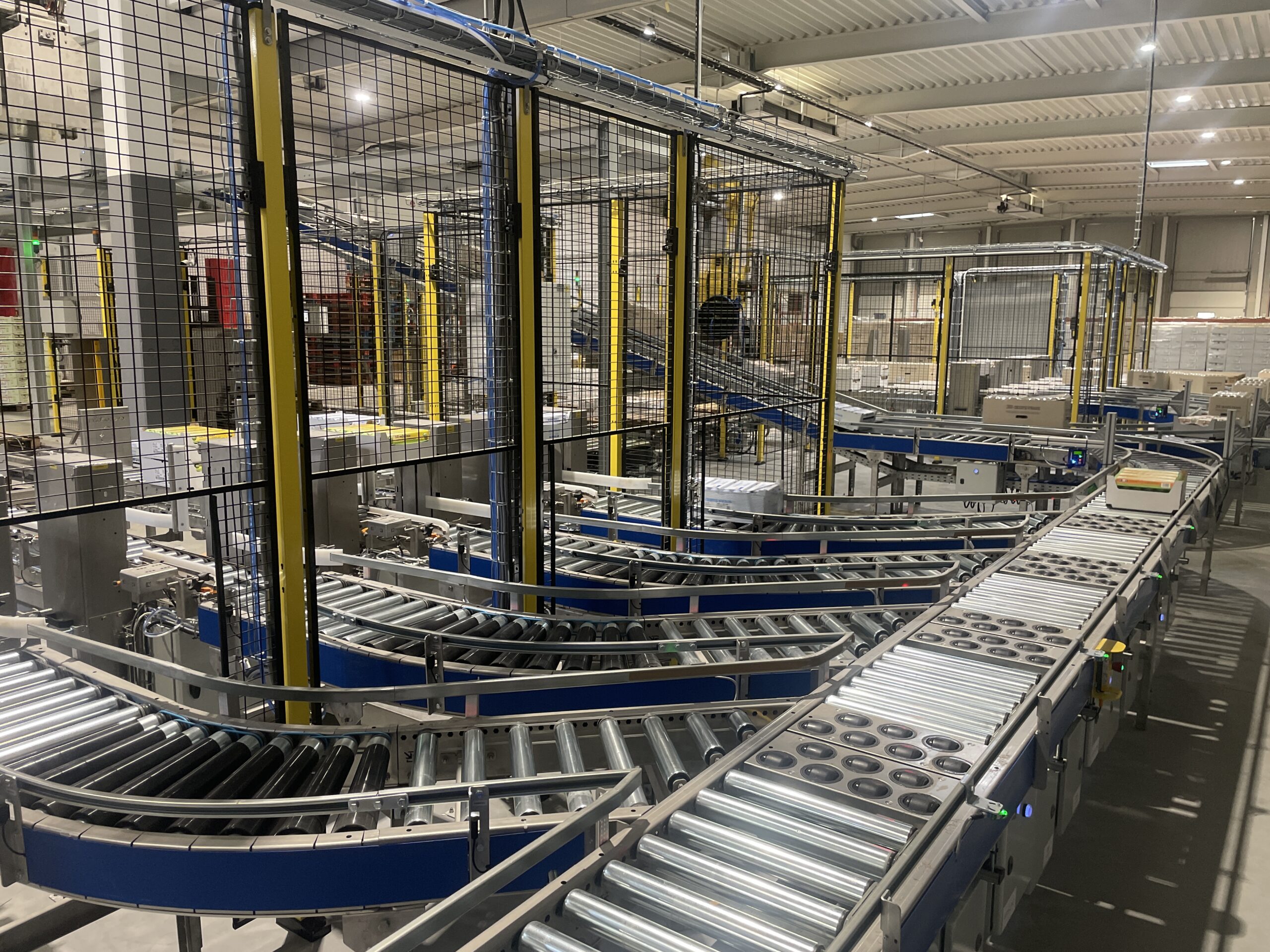

• High throughput sortation and picking lines.
• Sorting lines and conveyor merge points.
• Used to design advanced automated sortation lines.
• Diverts at 30°, 45°, or 90°.
• Left and right diverts.
