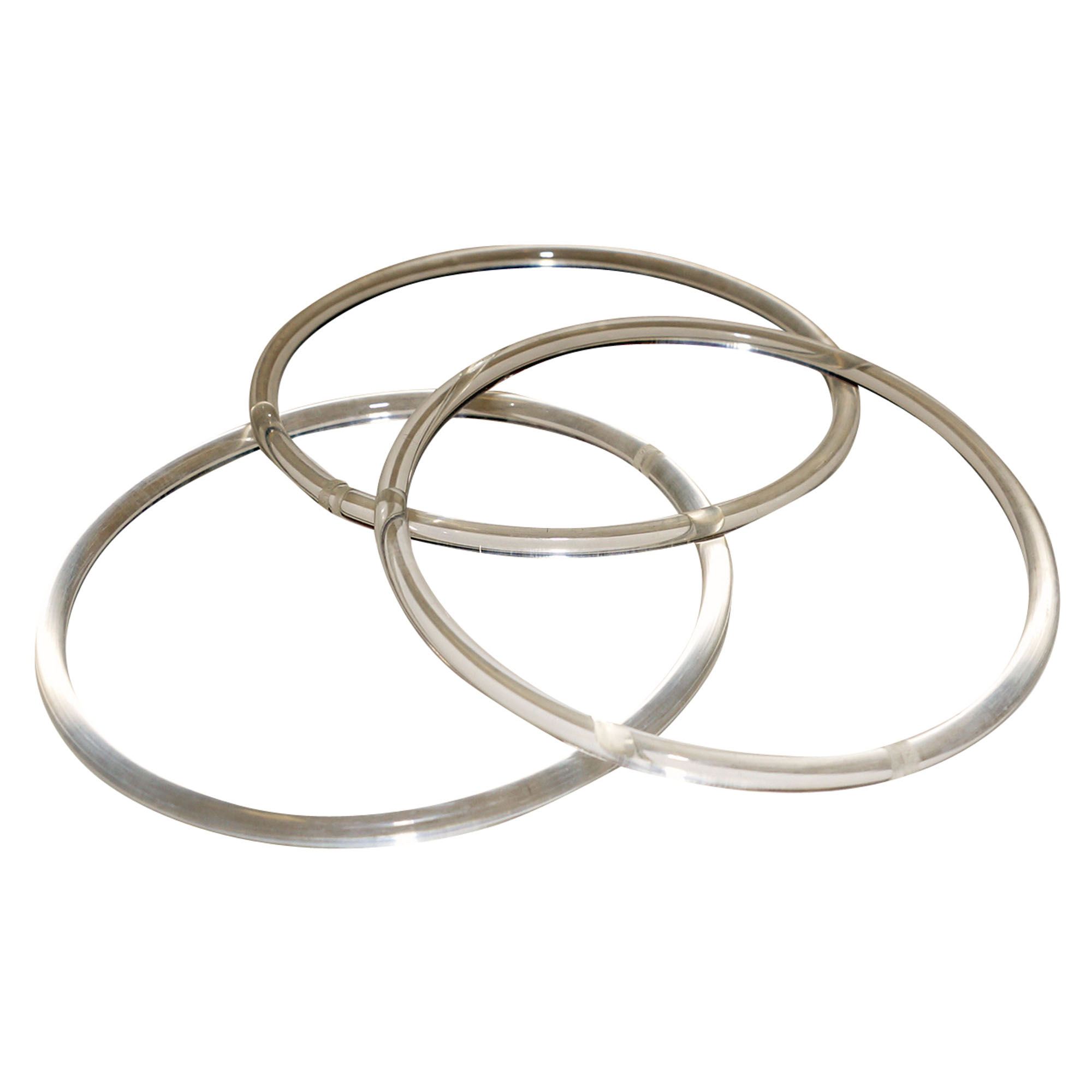

Standard Clear Urethane: Ø4.75mm

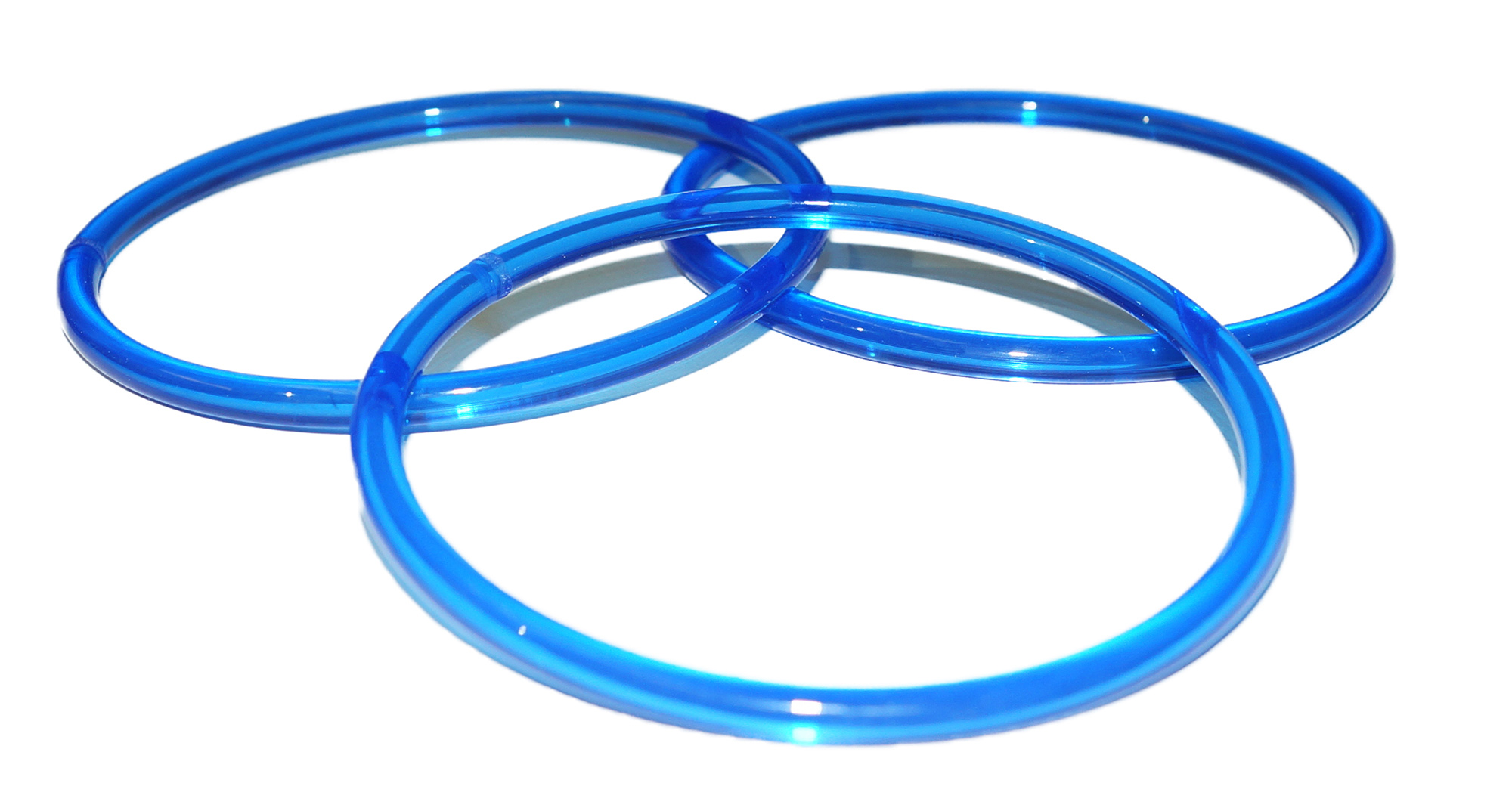

Blue High Strength: Ø5.2mm
Temperature Range: -20°C to +60°C (may harden and set at low temperatures if not continuously run)
Recommended intial stretch; clear 10% stretch, blue 20% stretch
Common Sizes

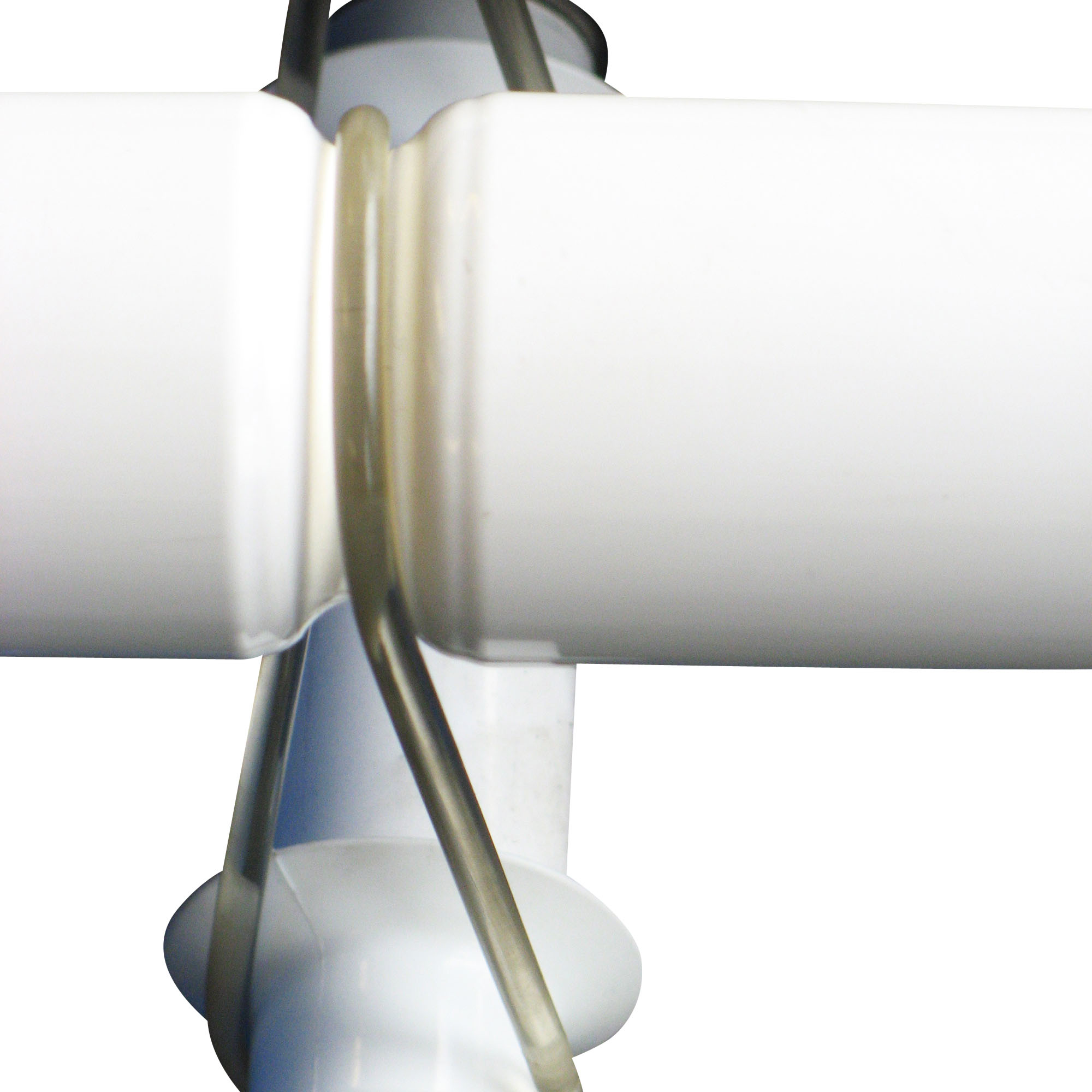

DB 96 - for standard drive shaft to roller drive (normally 110mm to 120mm)
DB 90 - roller to roller at 95-100mm pitch (can be used for drive shaft to roller in emergency)
PB 7 - roller to roller at 75-80 pitch
DB 73 - roller to roller at 60-70mm pitch (ideal for 64mm pitch)
DB S Drive Band
Tracking Sleeves

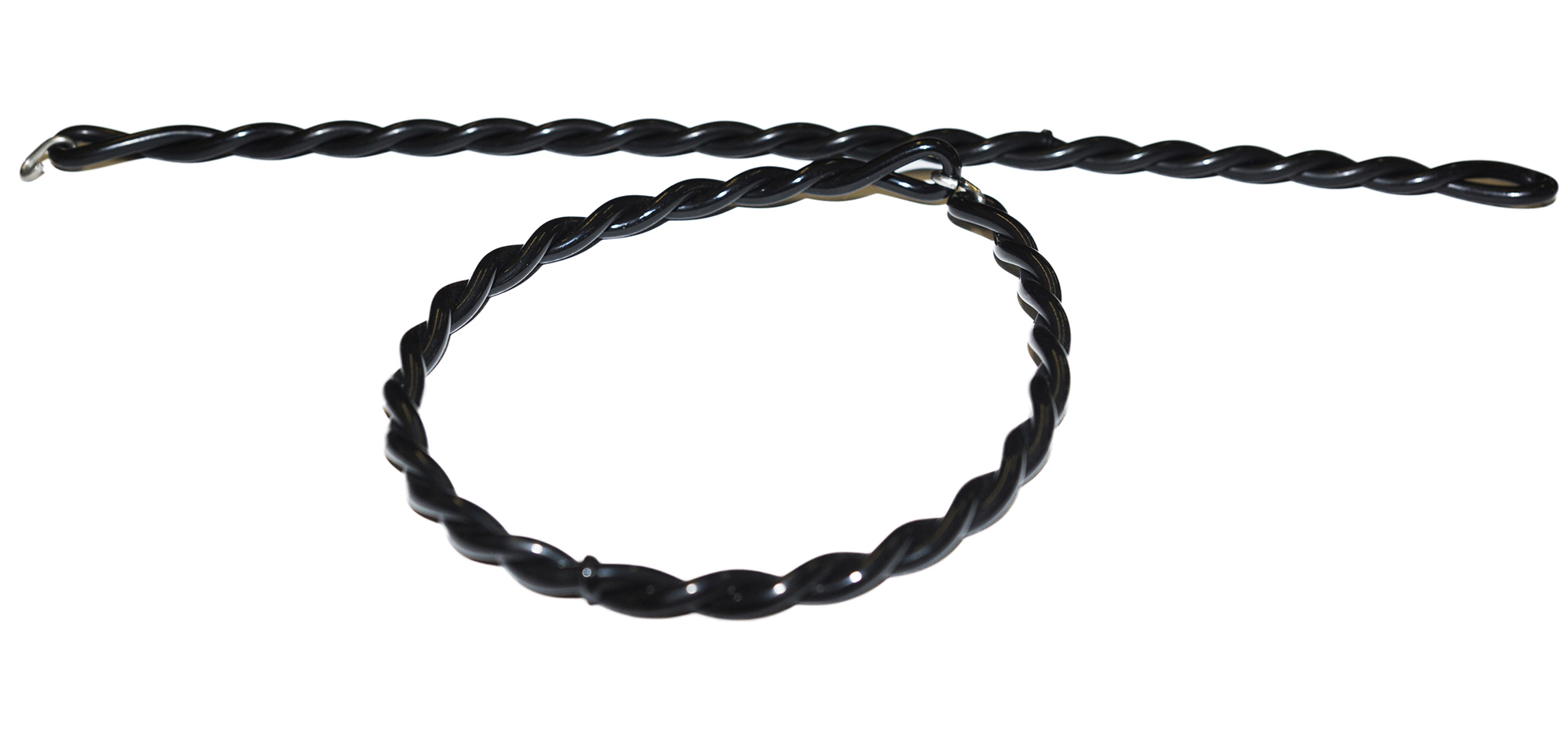

DBE Emergency Drive Band
"*" indicates required fields
DB 96 – for standard drive shaft to roller drive (normally 110mm to 120mm)
DB 90 – roller to roller at 95-100mm pitch (can be used for drive shaft to roller in emergency)
PB 7 – roller to roller at 75-80 pitch
DB 73 – roller to roller at 60-70mm pitch (ideal for 64mm pitch)
DBS Drive Band – available made up to special length (miniumum of Ø43 ID)
• Crowns rollers – prevents flat belts from walking• Fits under flat belt• Easily installed with our RAVE technique• Stays put. Will not move.• Durometer: 92A• Coefficient of friction on steel 0.38• Gives extra grip on roller• 0.75mm thick to fit on 50mm diameter rollers. Options of 13mm or 25mm wide.• T60x12, T50x25, T50x12
• Lineshaft to roller drive• Suits 110mm to 120mm centers• Black Polyurethane• Stainless steel connector• U.V. resistant• 275mm overall length• Also available in 238mm and 330mm
