BT805-30-16

BT805-30-16

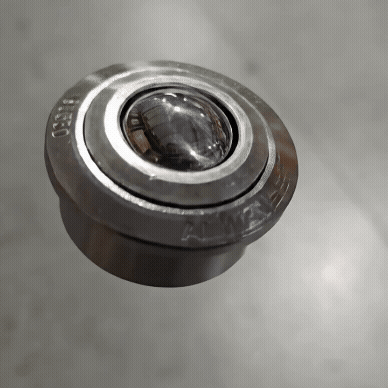

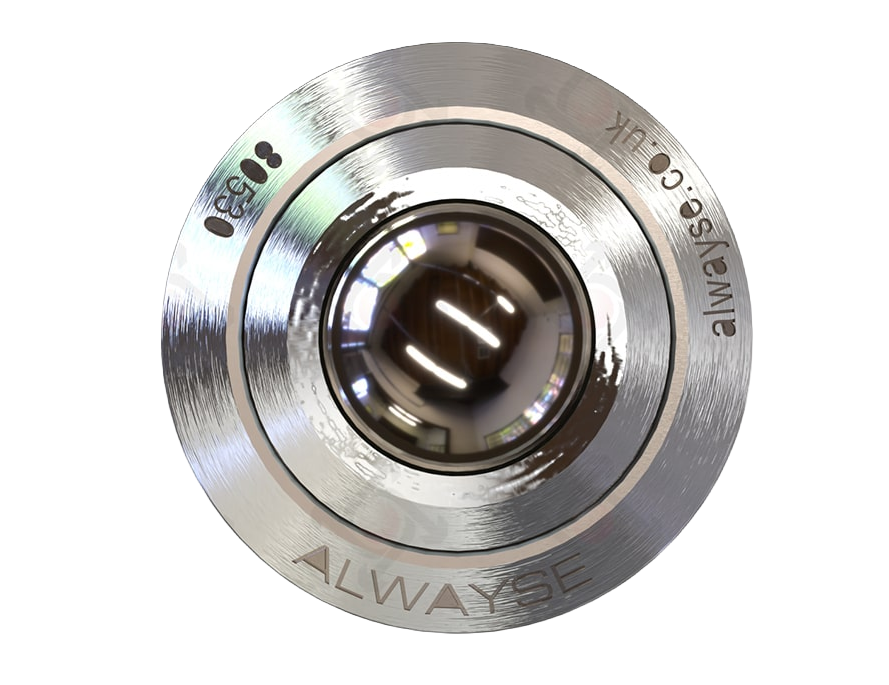

High load capacity, low profile ball transfer units formed from a single-piece steel body with a dirt exit hole.

• 8053016 | Heavy Duty Series
• Hole Fixing
• Ø30mm Ball
• Carbon steel body & Stainless Steel Bearings (Ball Only)
• 350kg Load Capacity Range

The only Ball Transfer Unit named in the International Air Transport Association (IATA) guidelines! Explore Dyno's Aviation Security & Ground Support Solutions.

Request a Quote

"*" indicates required fields

X/Twitter

This field is for validation purposes and should be left unchanged.

First name*

Last name*

Email*

Phone*

Company name*

Job title*

Country*

City*

Industry*

Products

Product

Quantity

Notes

Message

Images (if applicable)

Drop files here or

Accepted file types: png, jpg, jpeg, heic, Max. file size: 25 MB, Max. files: 3.

CAPTCHA

Heavy Duty Performance: Formed from a strong, solid steel single-piece body construction. Engineered for maximum longevity, durability, and superior resistance to wear and tear in demanding industrial environments.

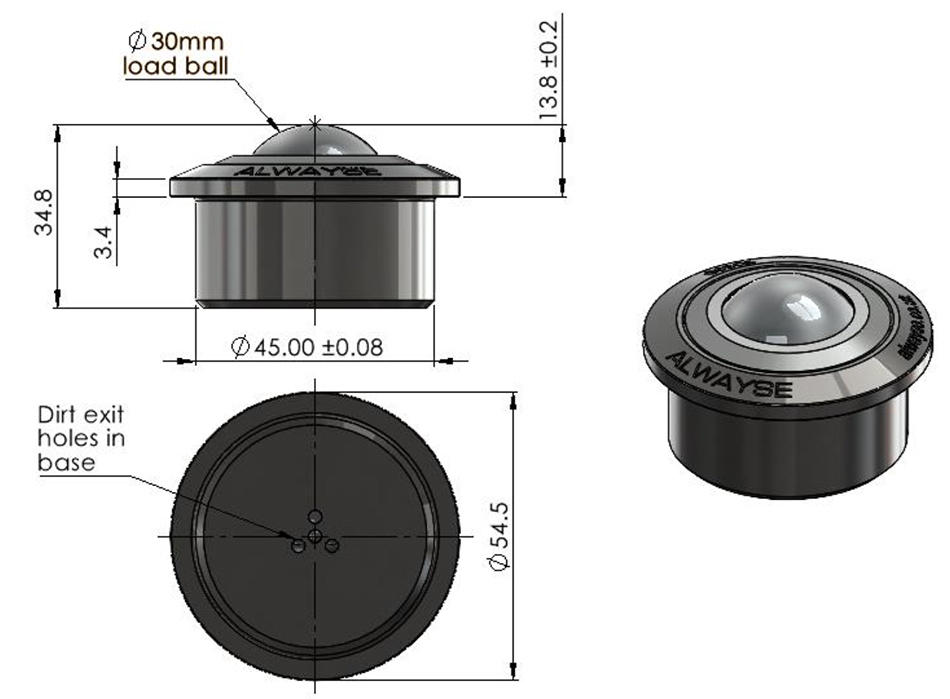

Multi-Dirt Exit Hole: Incorporates multiple debris drainage channels in the bottom of the body. This prevents internal contamination build-up, ensuring continuous smooth operation.
Advanced Noise Reduction: Upgraded design significantly lowers operational sound levels to 64dB while reducing overall unit weight, creating a quieter and more efficient workplace.
Environmental Tolerance: Designed to perform reliably across challenging wet and dry conditions, with a low-temperature threshold down to -30°C.
Global Compliance: These units offer exceptional quality and industry acceptance, holding the distinction of being named in the International Air Transport Association (IATA) guidelines.

Air Cargo Decks and Terminals: Extensively deployed in high-demand aviation transport systems, baggage handling hubs, and cargo platforms to move heavy loads with minimal friction.

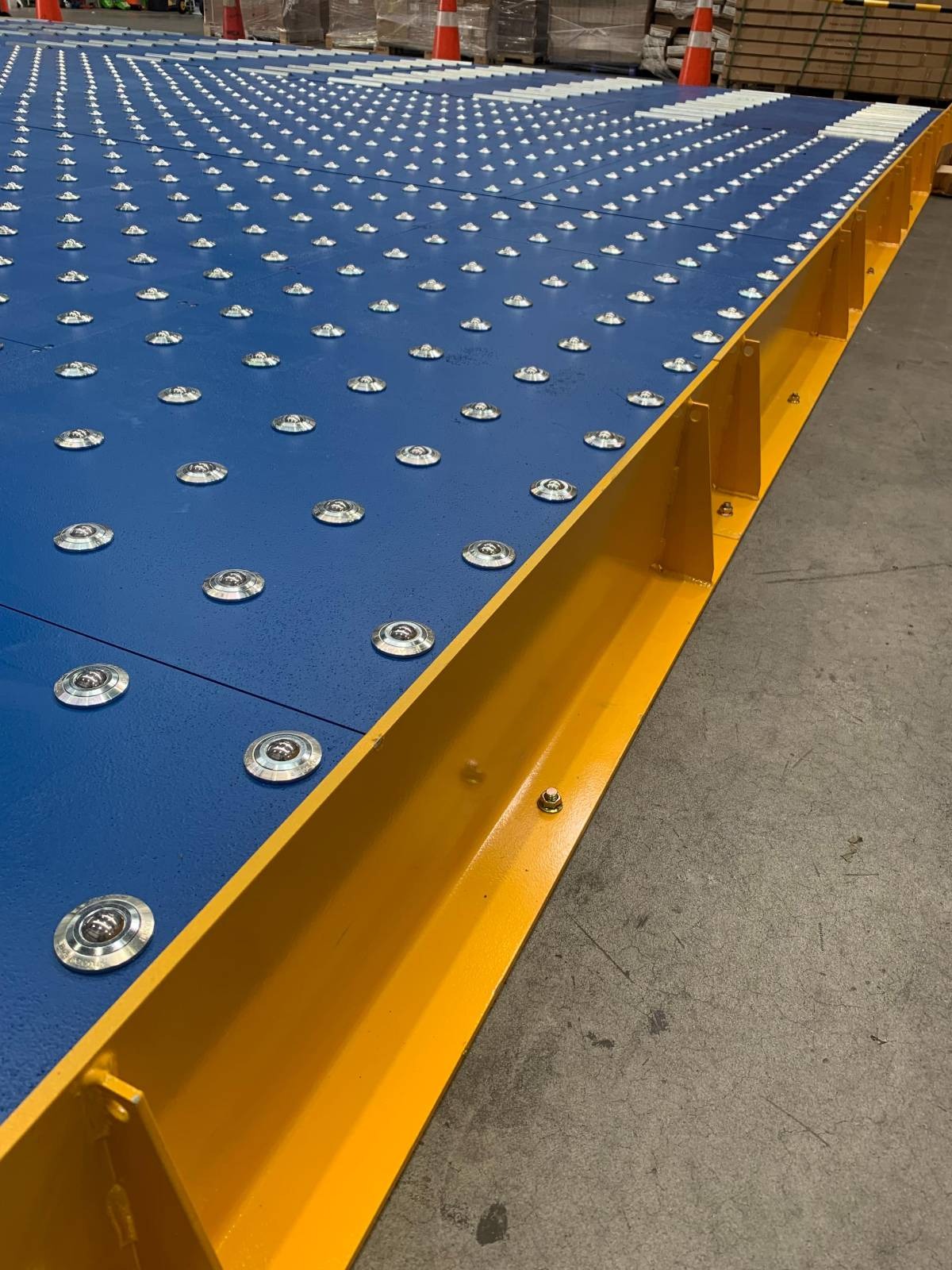

Material Handling and Conveyor Systems: Ideal for integration into industrial conveyor lines, ball tables, and transfer platforms that require omnidirectional movement.
Heavy-Duty Industrial Environments: Suited for demanding manufacturing plants, logistics facilities, and assembly lines where reliable weight distribution and debris resistance are critical.
