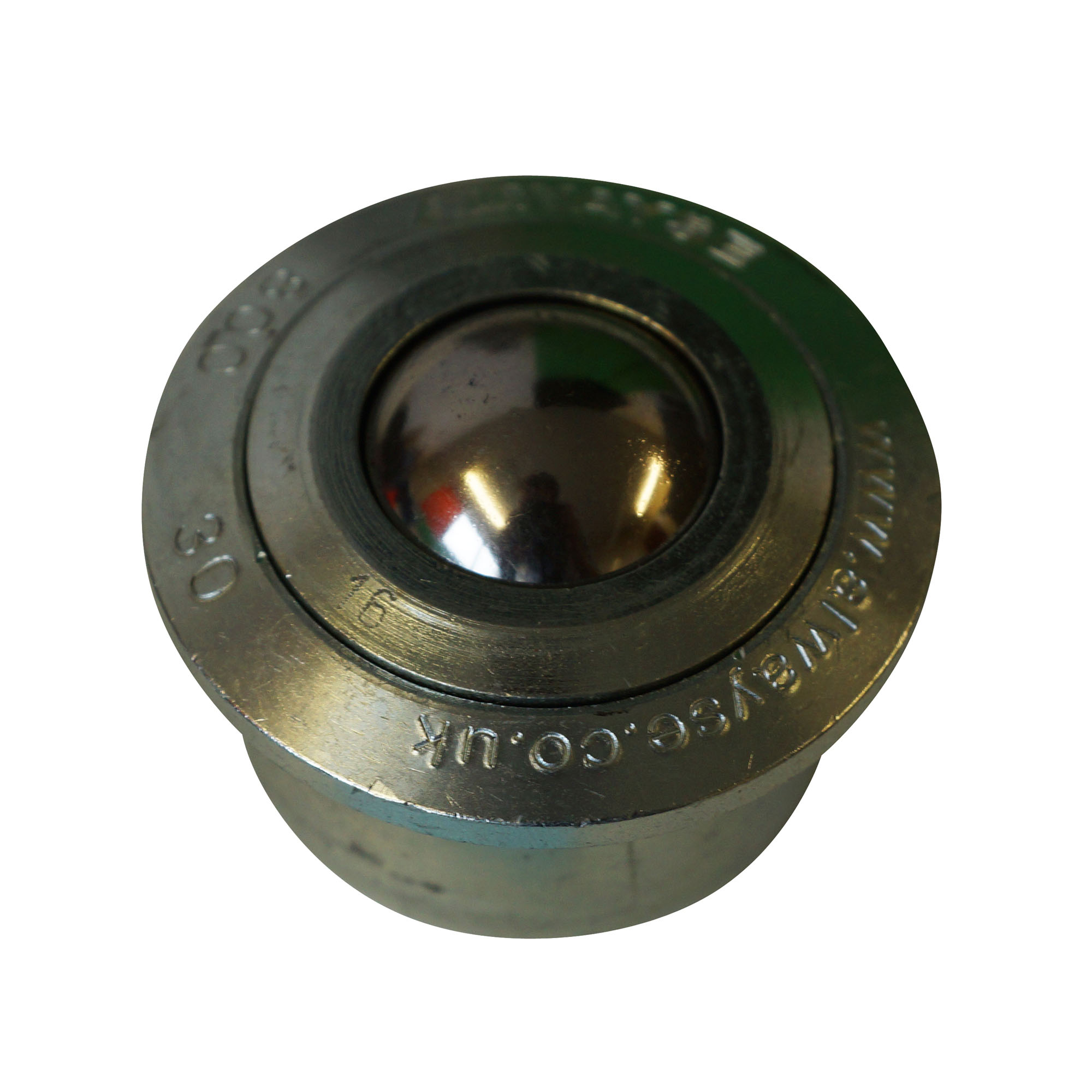

High load capacity, low profile ball transfer units formed from single piece steel body with dirt exit hole.
• Heavy Duty Series• Hole Fixing• Ø30mm Ball • Carbon Steel Balls & Housing• 250kg + Load Capacity Range
"*" indicates required fields

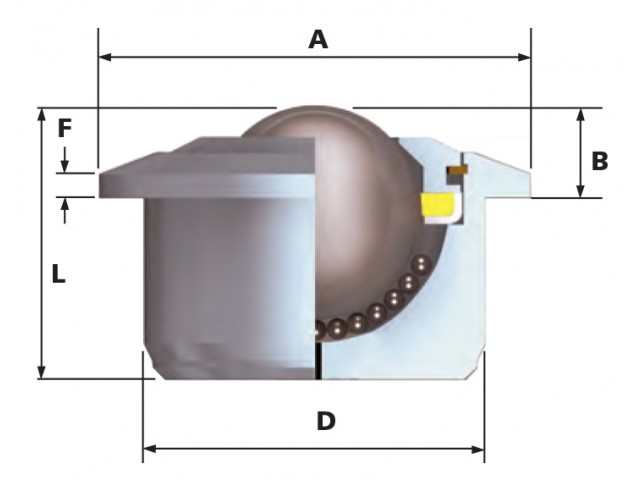

Max Diameter (mm) – A
55
Working Height of Ball(mm) – B
13.8 +/- 0.2
Body Diameter (mm) – D
45 +/- 0.2
Flange Thickness (mm) – F
3.4
Overall Height (mm) – L
36.8
Load Ball Material
Carbon Steel
Support Ball Material
Unit Housing Material
Load Capacity Ranges
250 + KG
