BT3006-15

General purpose pressed steel ball transfer unit with a low profile and dirt exit hole.

• Three Hole Flange Fixing
• Ø19mm Ball
• Stainless Steel Balls & Housing
• 11 < 25kg Load Capacity Range

Request a Quote

"*" indicates required fields

Company

This field is for validation purposes and should be left unchanged.

First name*

Last name*

Email*

Phone

Company name*

Job title*

Country*

City*

Industry*

Products

Product

Quantity

Notes

Message

Images (if applicable)

Drop files here or

Accepted file types: png, jpg, jpeg, heic, Max. file size: 25 MB, Max. files: 3.

CAPTCHA

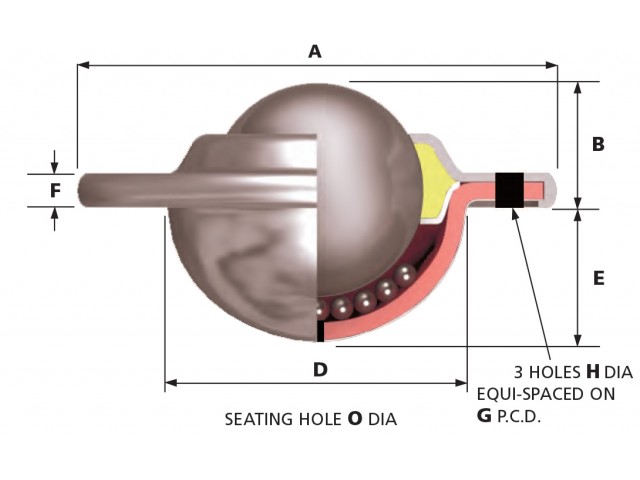

Max Diameter (mm) – A	61
Working Height of Ball(mm) – B	10
Body Diameter (mm) – D	29.1 +/- 0.2
Under Flange to Base (mm) – E	12
Flange Thickness (mm) – F	3.2
Centres of Fixing Holes (mm) – G	44.5 +/- 0.2
Hole Diameter of Fixing Holes (mm) – H	5.1
Seating Hole Diameter (mm) – O	30
Load Ball Material	Stainless Steel
Support Ball Material	Stainless Steel
Unit Housing Material	Stainless Steel
Load Capacity Ranges	11 < 25 KG
