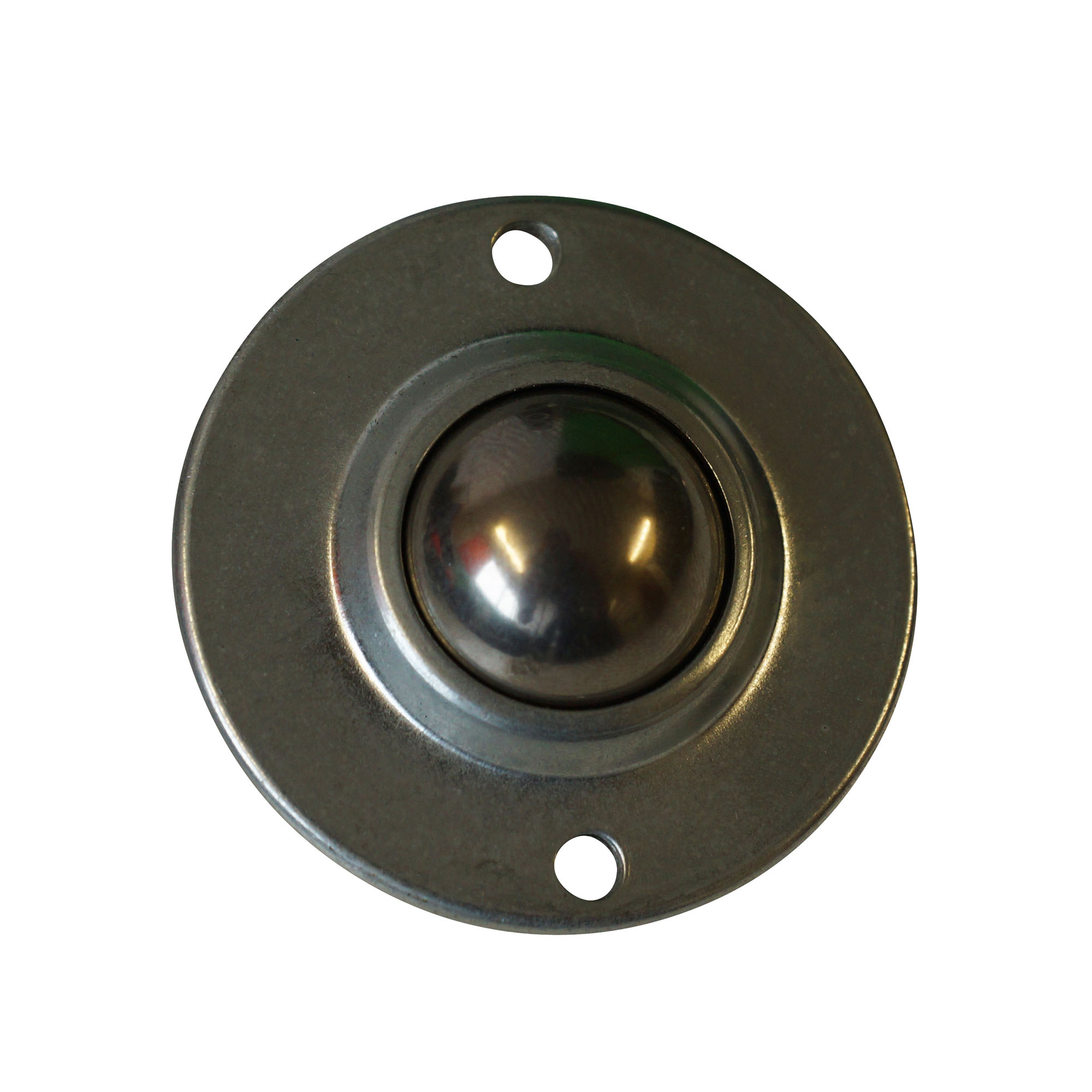

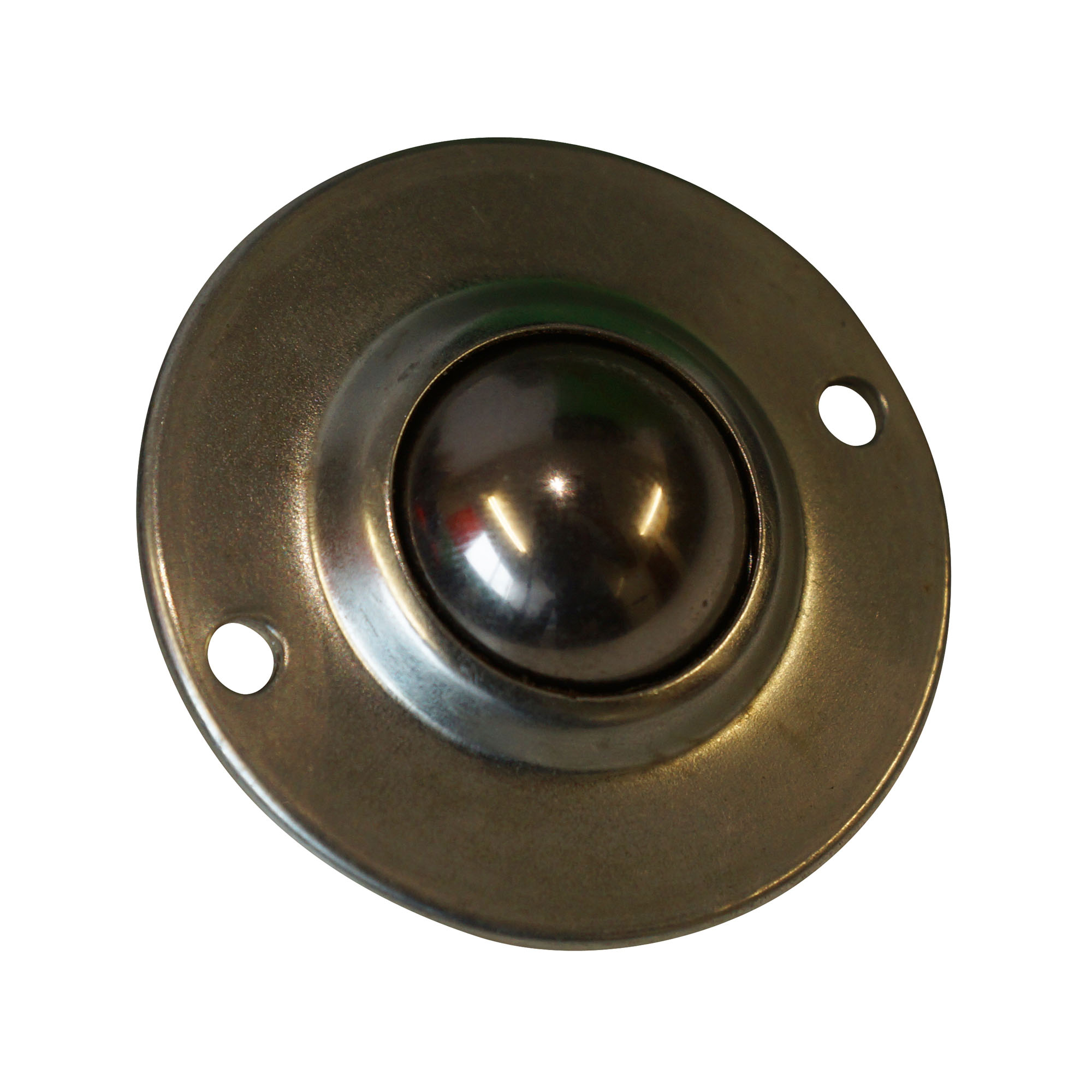

BT254-F SS

• Two Hole Flange Fixing
• Ø25.4mm Ball
• Stainless Steel Balls & Housing (3025-15)


Max Diameter (mm) - A	56
Working Height of Ball(mm) - B	14.6
Body Diameter (mm) - D	34.7 +/- 0.2
Under Flange to Base (mm) - E	14.6
Flange Thickness (mm) - F	4
Centres of Fixing Holes (mm) - G	45.5 +/- 0.2
Hole Diameter of Fixing Holes (mm) - H	4.5
Seating Hole Diameter (mm) - O	35.5
Load Ball Material	Stainless Steel
Support Ball Material	Stainless Steel
Unit Housing Material	Stainless Steel
Load Capacity Ranges	51 < 100 KG
