Heavy Duty Rollers

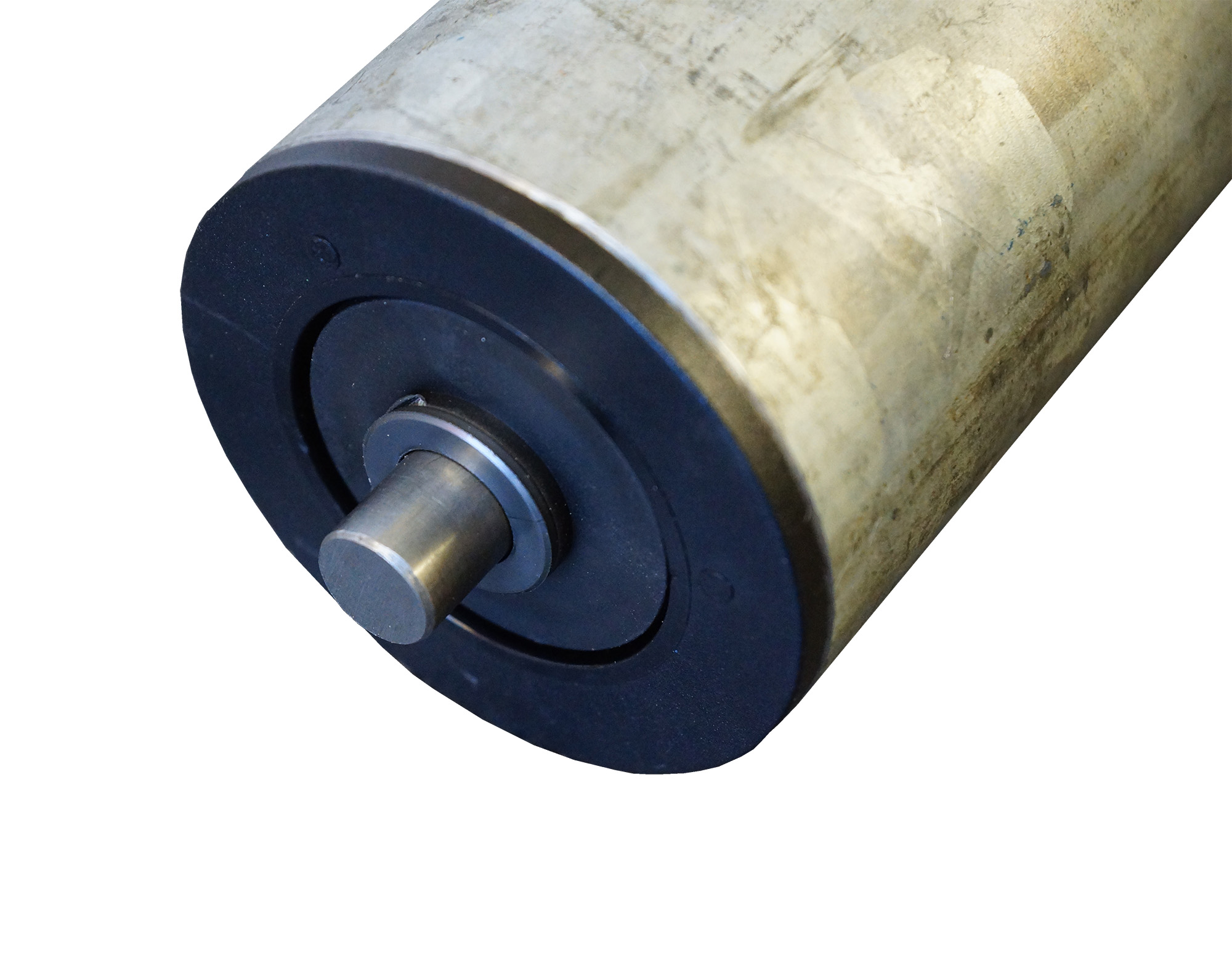

89mm Galvanised Roller

Tube Diameter - 89 x 3.2mm Galvanised Steel
Bearing - Precision in Polypropylene Housing (897)
Shaft Size - 12mm, 16mm or 19mm
Shaft Materials - Mild Steel or Stainless Steel

• Rated speed 110m/min.
• Max. static load 250kg.
• For central point load, reduce load rating by 1/3.
• Option; For heavy duty, all S/S & plastic roller.

Common uses;
- Pallet rollers (easy to move).
- Can be fitted with nylon sprocket, for light drive at reduced load rating.

Features, Benefits & Uses

Specifications

• Heavier Tube may be available
• Load Rating kg applies to listed tube options.

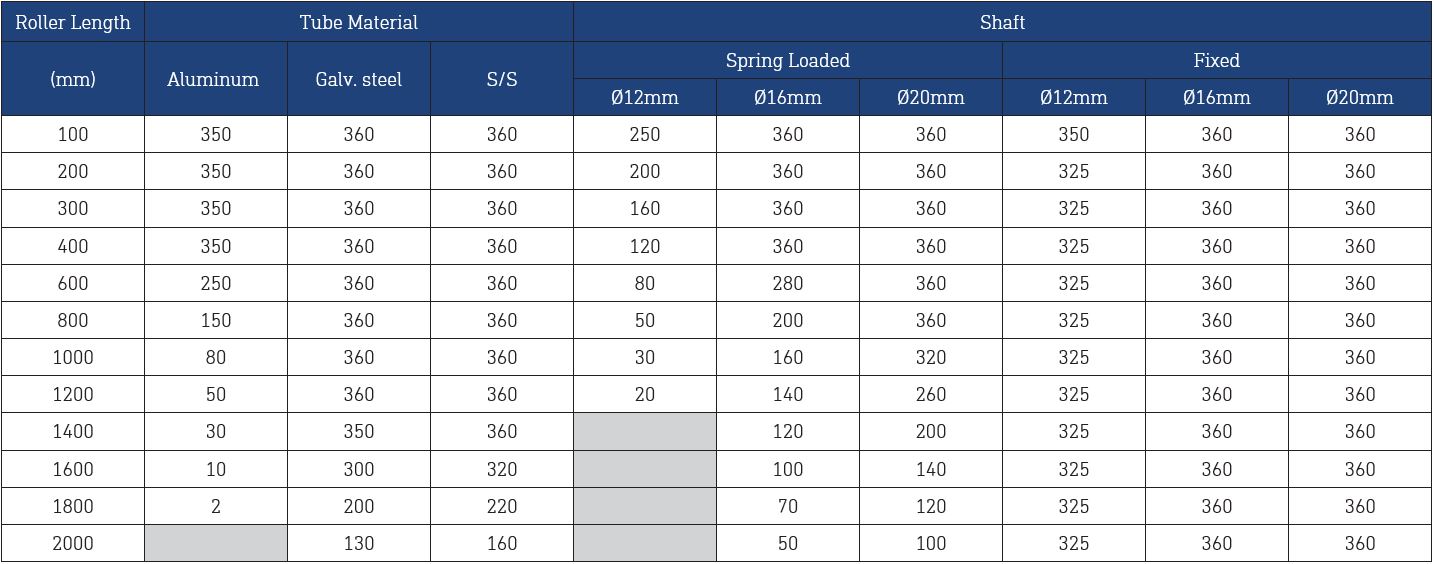

Dyno Conveyors 897 Galvanized Roller 89mm Diameter Roller Load Rating

* Shaded sizes not recommended

Downloads

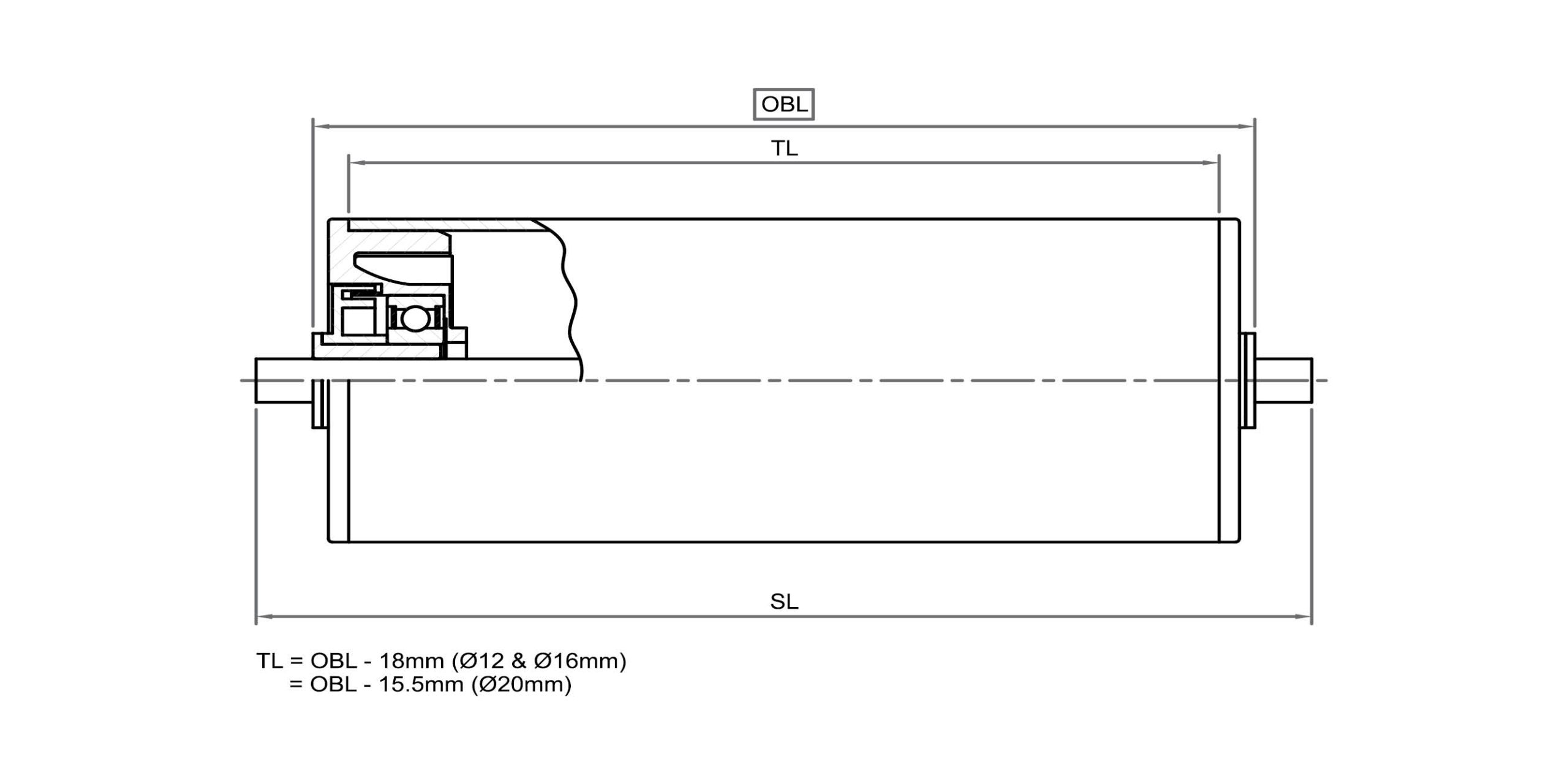

897 Roller Technical Information
