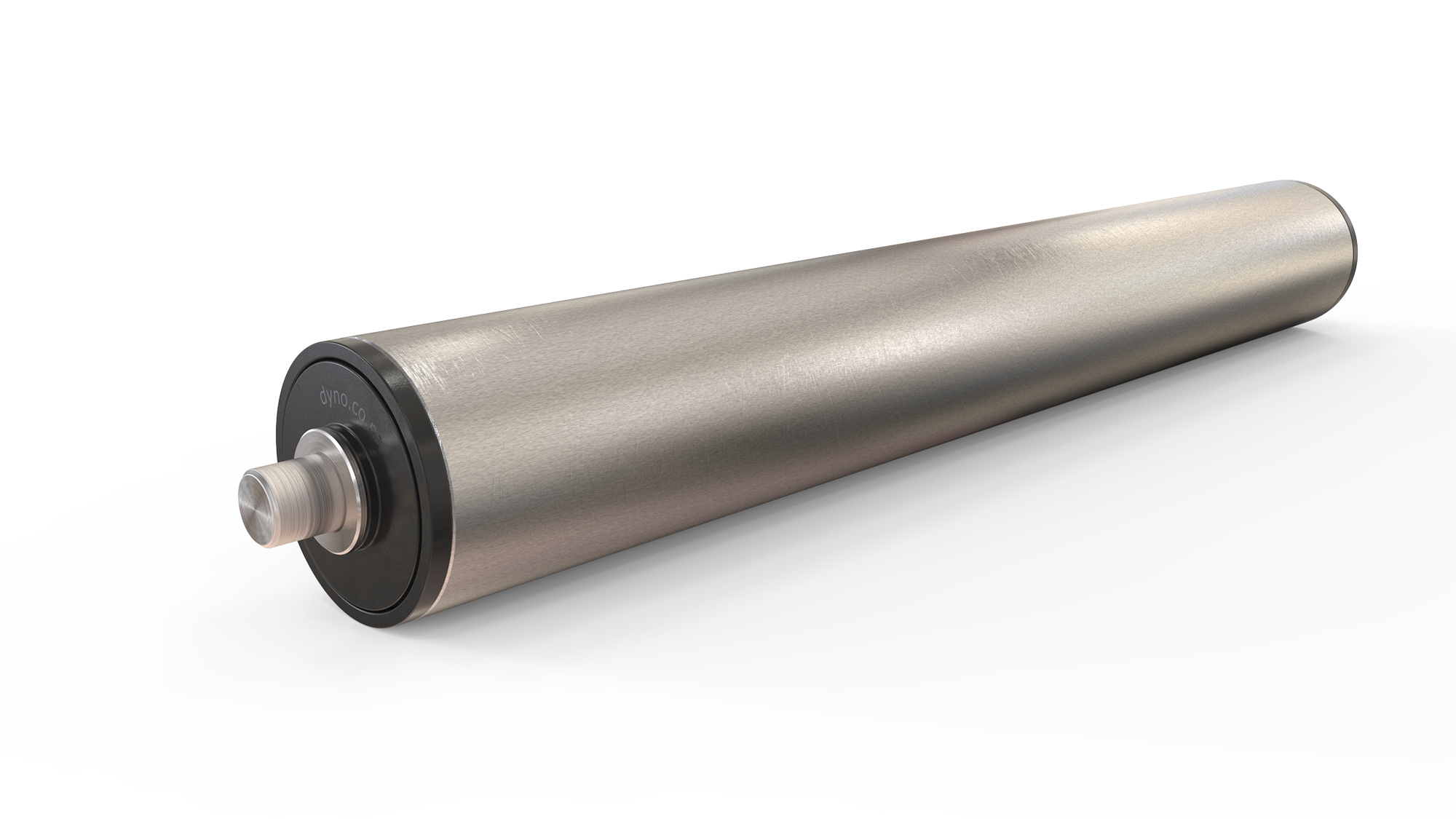

Tube Diameter - 89 x 3.2mm Aluminium Bearing - Precision Bearing with Polypropylene Housing (897) Shaft Size - 12mm, 16mm or 20mm Shaft Materials - Mild or Stainless Steel
• Rated speed 110m/min. • Max. static load 250kg. • For central point load, reduce load rating by 1/3. • Option; For heavy duty, all S/S & plastic roller.
Common uses; - Pallet rollers (easy to move). - Can be fitted with nylon sprocket, for light drive at reduced load rating.
"*" indicates required fields

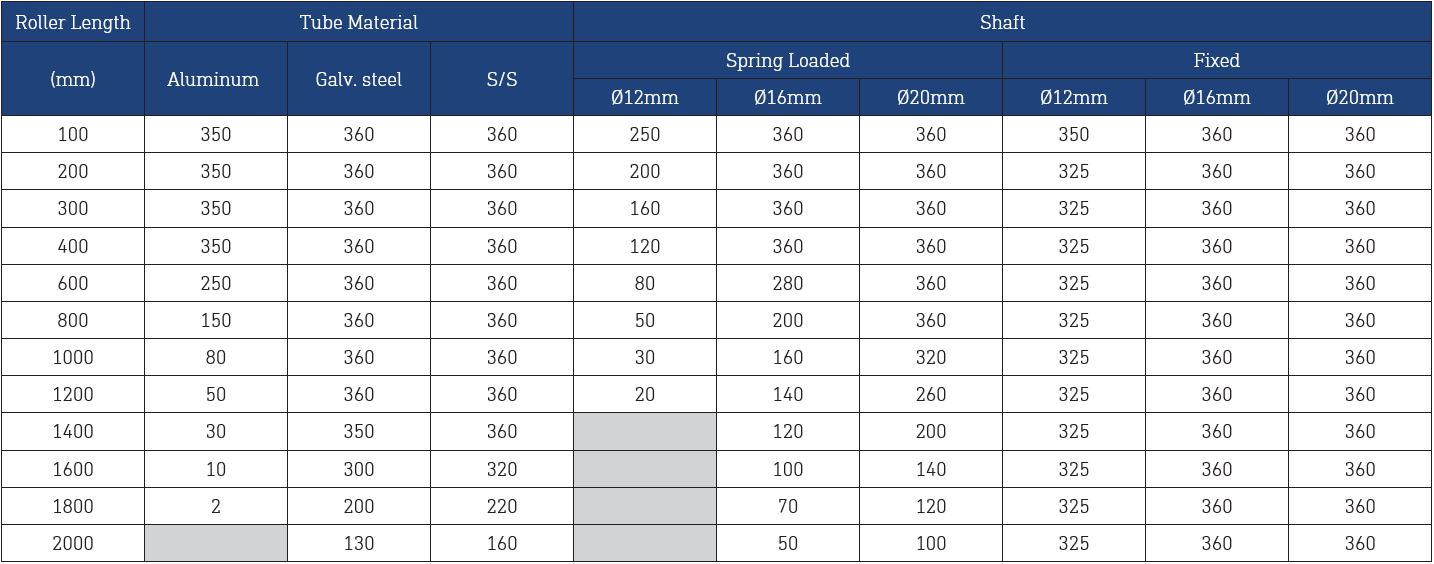

• Heavier Tube may be available • Load Rating kg applies to listed tube options.
* Shaded sizes not recommended
