Stainless Steel Rollers

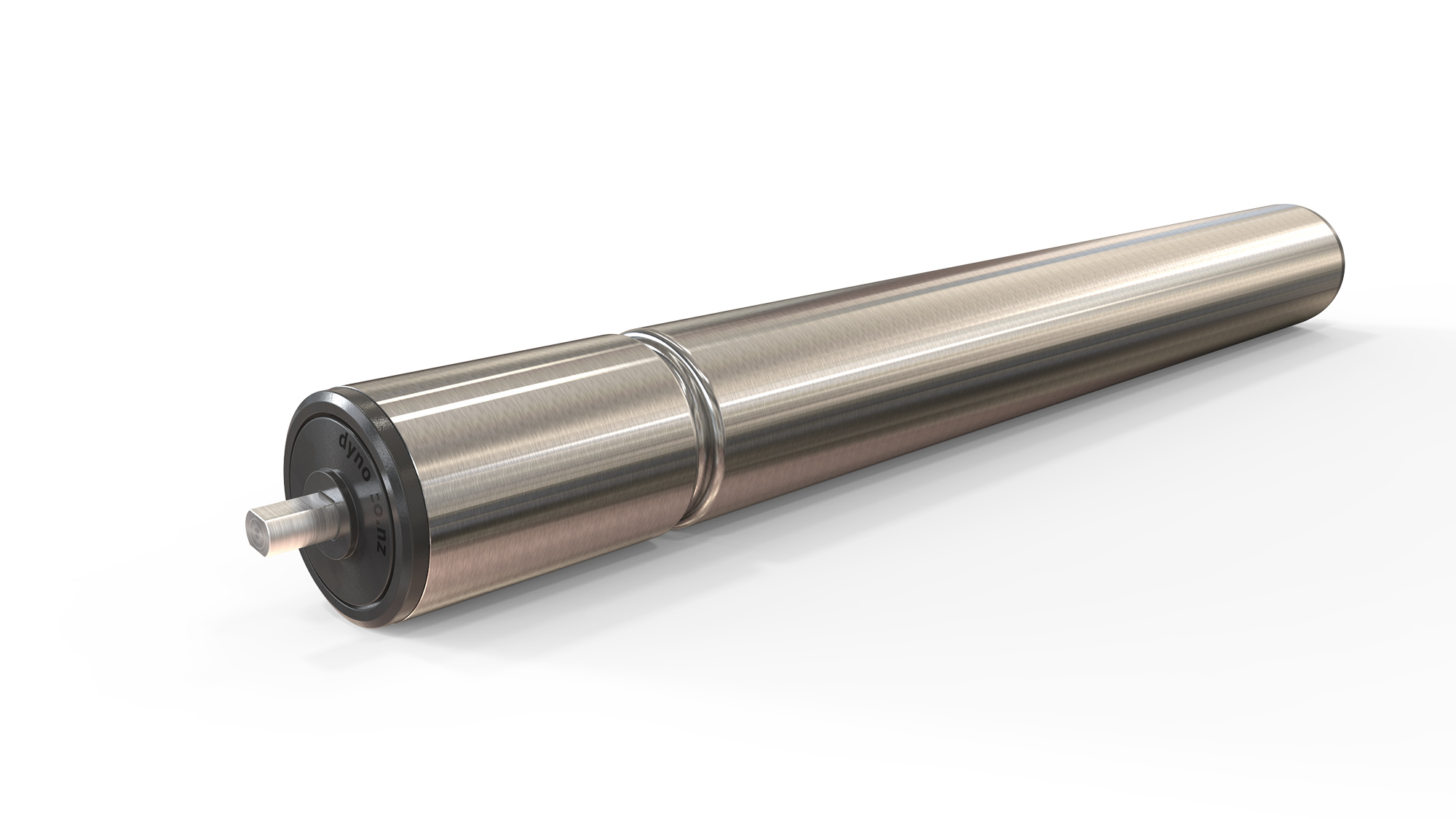

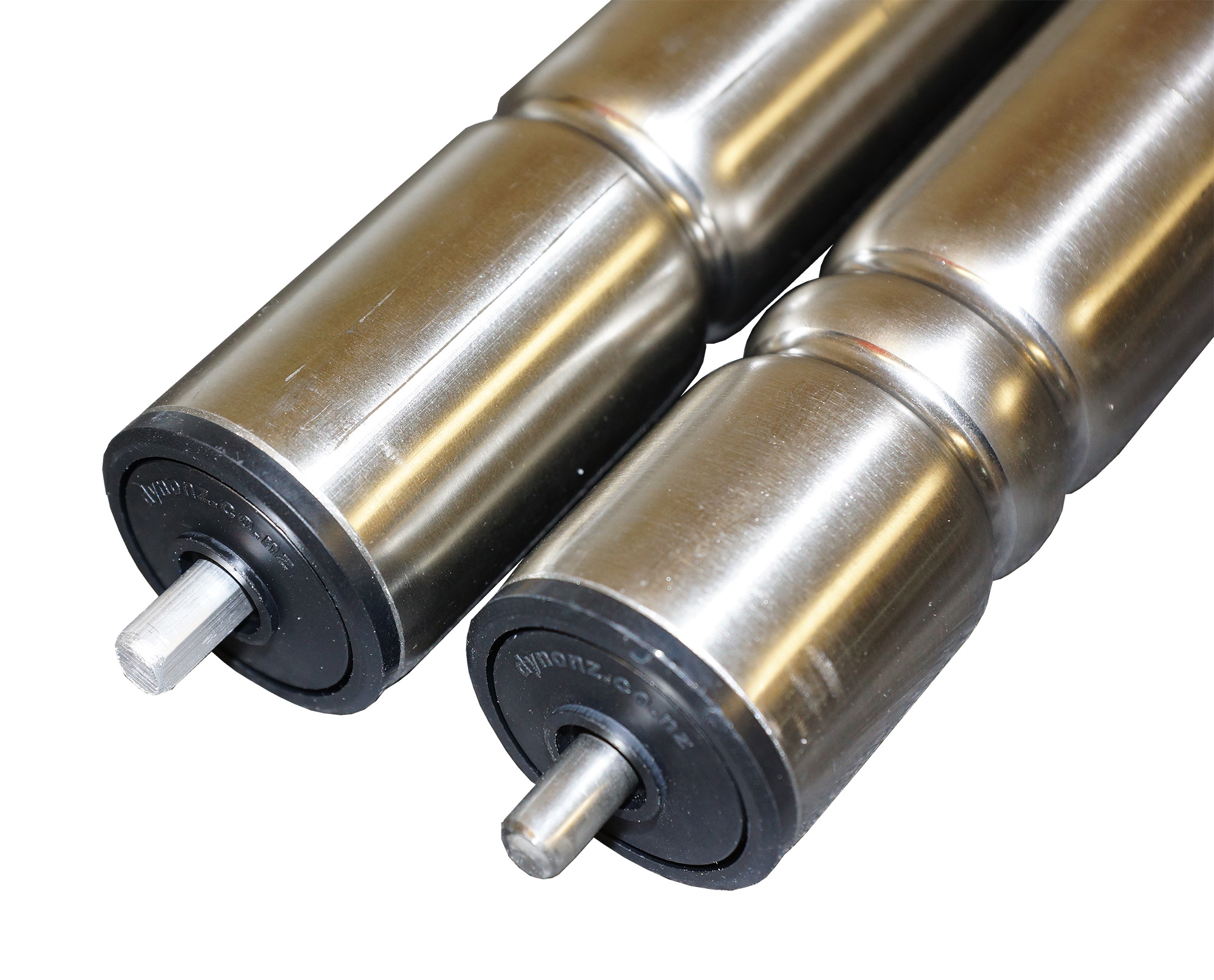

50mm Stainless Steel Roller

Tube Diameter - 50 x 1.5mm Stainless Steel
- 50.8 x 2mm Stainless Steel
Bearing - Stainless Precision with Polypropylene Housing (507)
Shaft Size - 8mm, 10mm, 11mm Hex or 12mm
Shaft Materials - Mild Steel, Stainless Steel or Aluminium (11mm hex only)

• Max. speed 70m/min.
• Max. static load 160kg.
• For central point load, reduce load rating by 1/3.

Common uses;
- Very popular high quality roller.
- Gravity rollers.
- Powered systems.

Options;
- Can be fitted with chain sprocket (reduced load rating).
- Blind bearing housings available.
- Headed bearing housing to retain taper

Configure your roller

Features, Benefits & Uses

Specifications

• Load Rating kg (Minimum applies).

Dyno Conveyors 507 Stainless Steel Roller 50mm Diameter Roller Load Ratings

* Shaded sizes not recommended

Downloads

507 Roller Technical Information
