Grooved Rollers

50mm Grooved Roller

Features, Benefits & Uses

Specifications

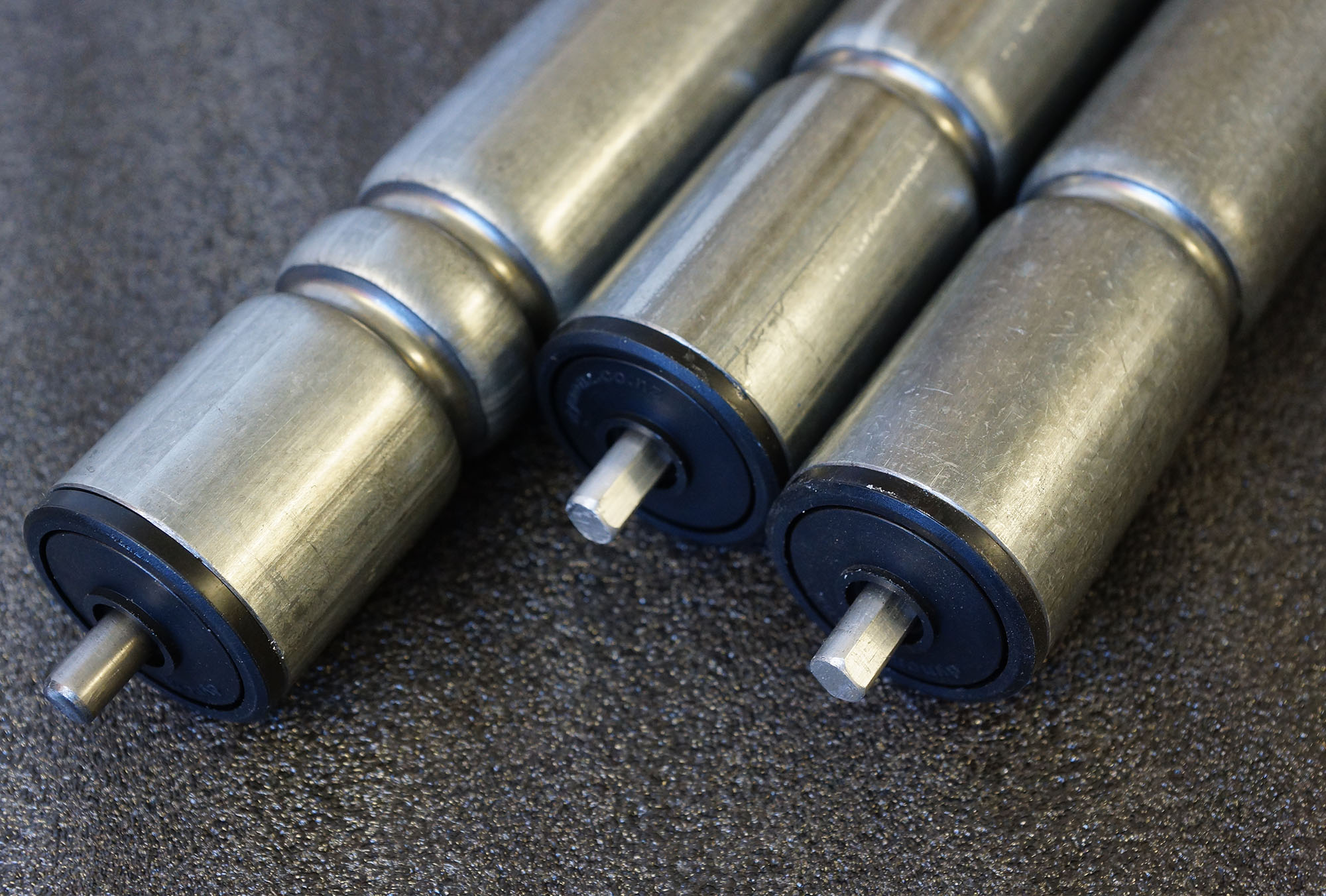

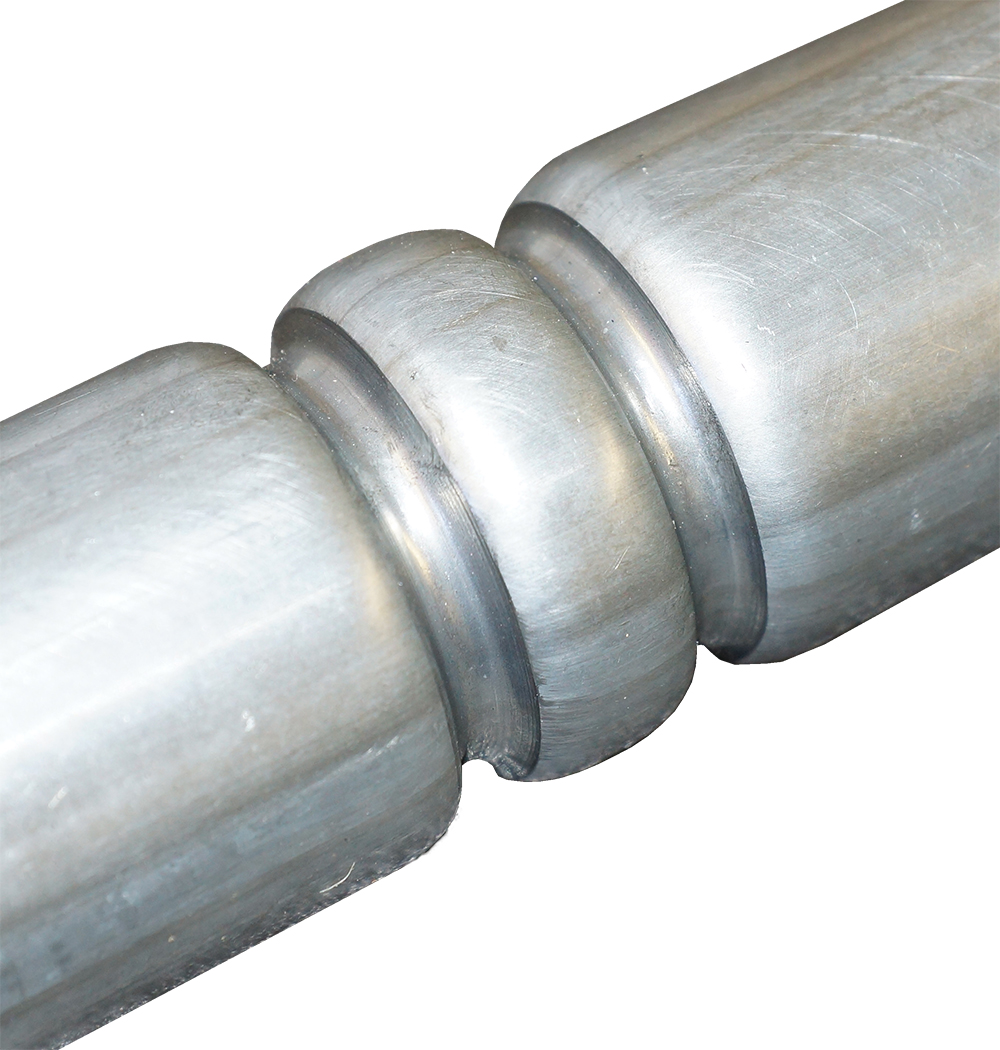

505 Grooved Galvanized Roller

• Max. speed 70m/min.
• Max. static load 150kg.
• For central point load, reduce load rating by 1/3.

Common uses;
    -Gravity rollers where plastic housing is not applicable – eg. high or low temperature.

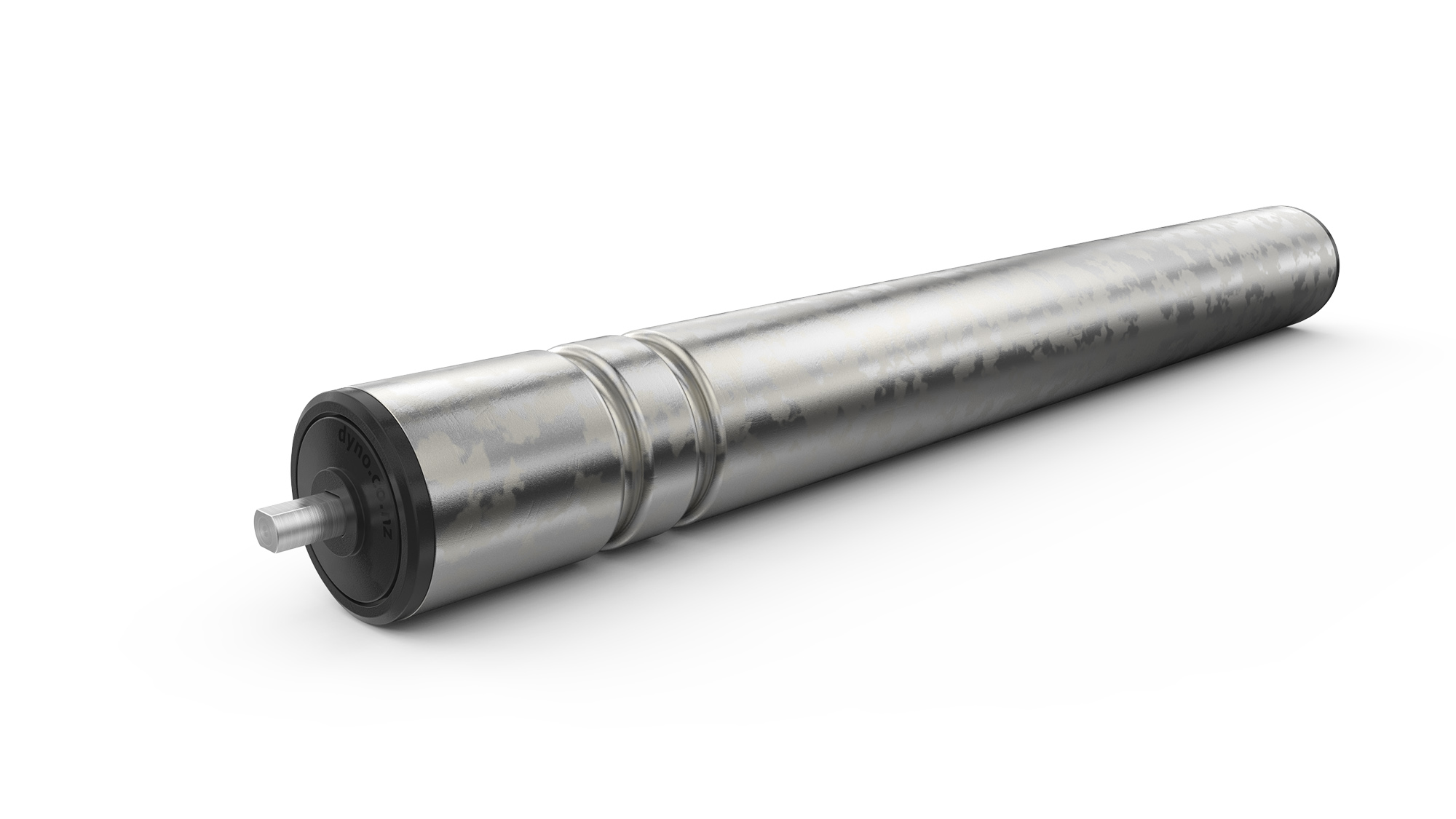

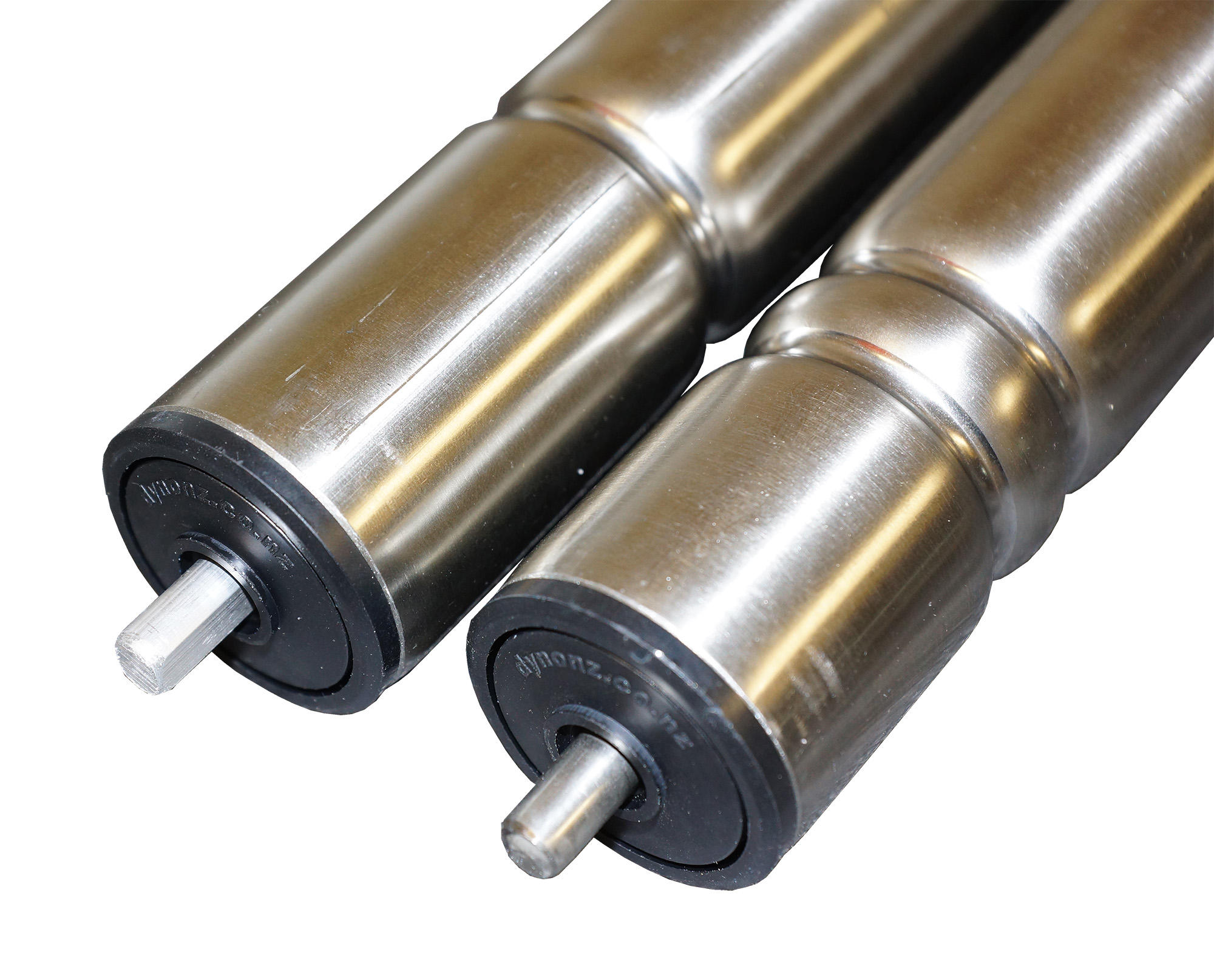

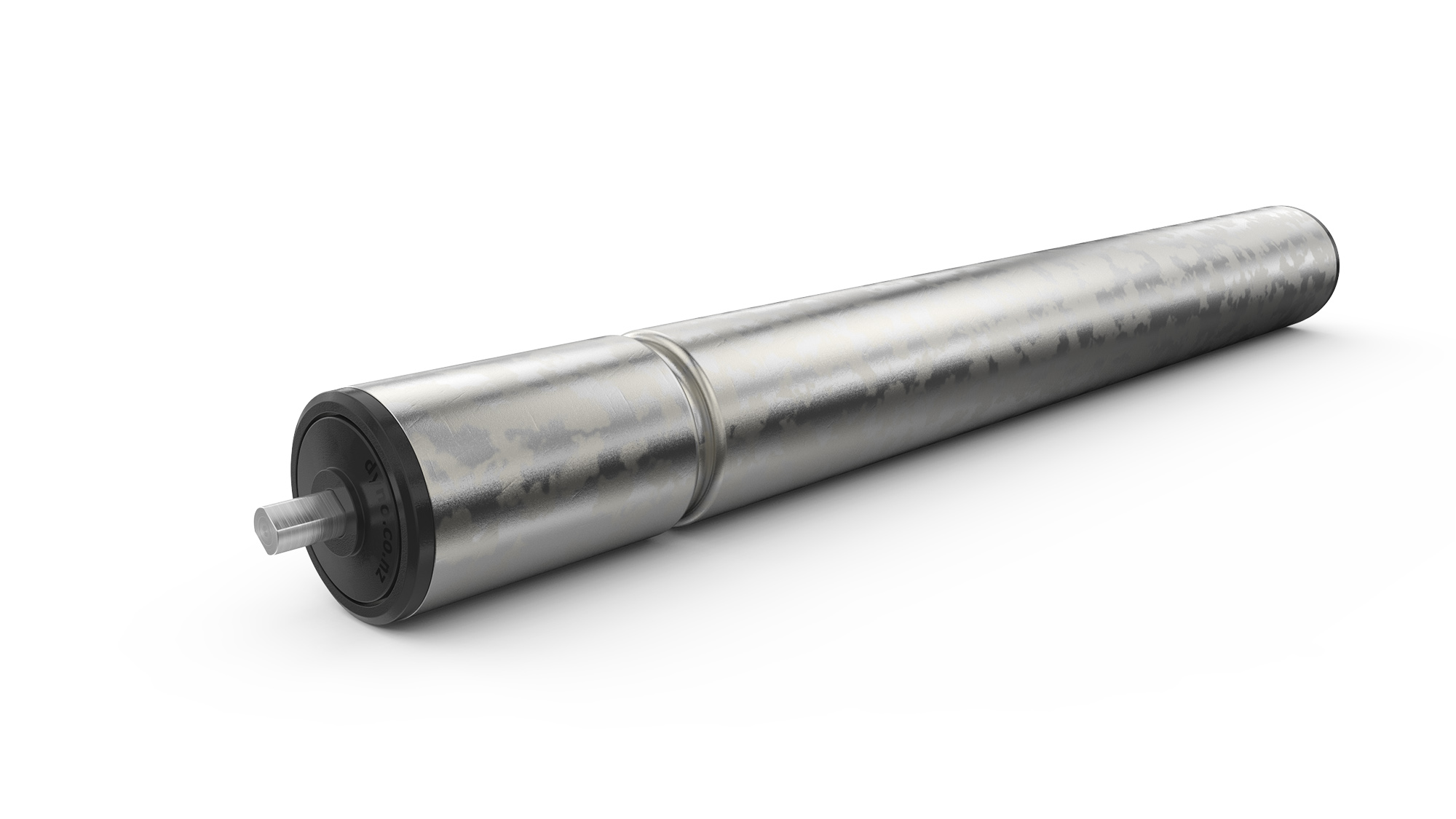

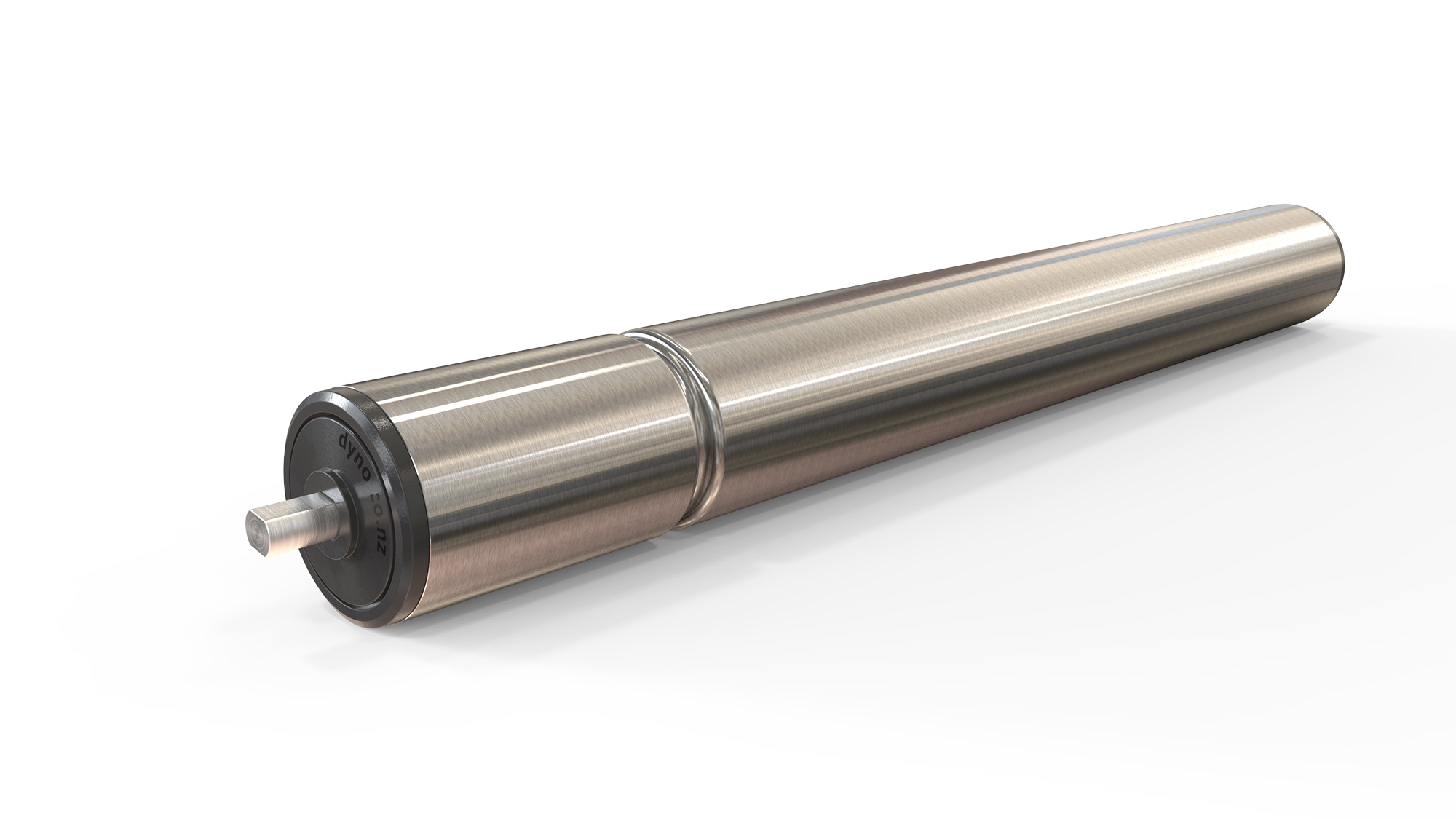

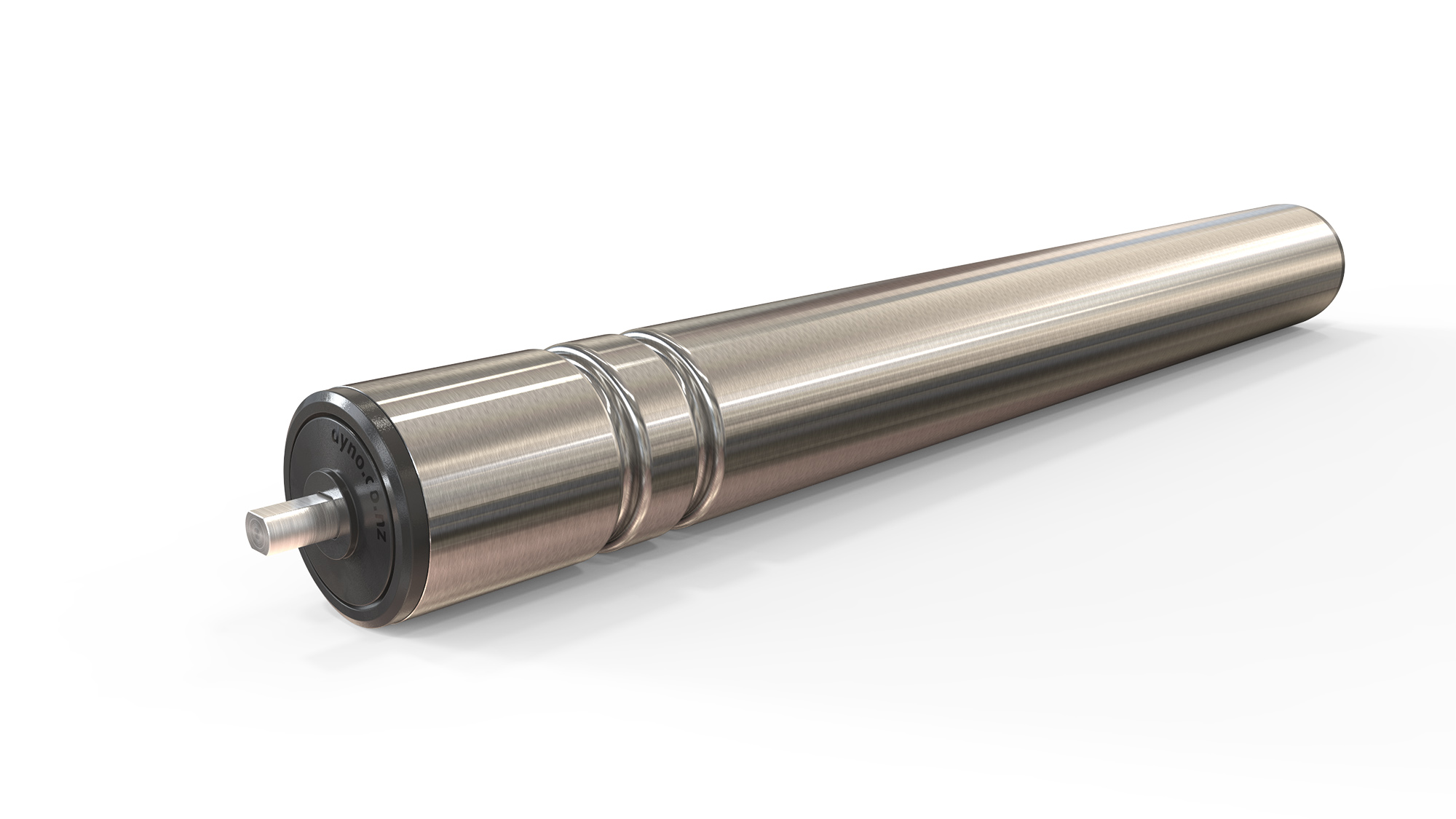

507 Roller – Stainless Steel, Galvanised Steel Grooved Roller

• Max. speed 70m/min.
• Max. static load 160kg.
• For central point load, reduce load rating by 1/3.

Common uses;
    – Very popular high quality roller.
    – Gravity rollers.
    – Powered systems.

Options;
    – Can be fitted with chain sprocket (reduced load rating).
    – Blind bearing housings available.
    – Headed bearing housing to retain taper
