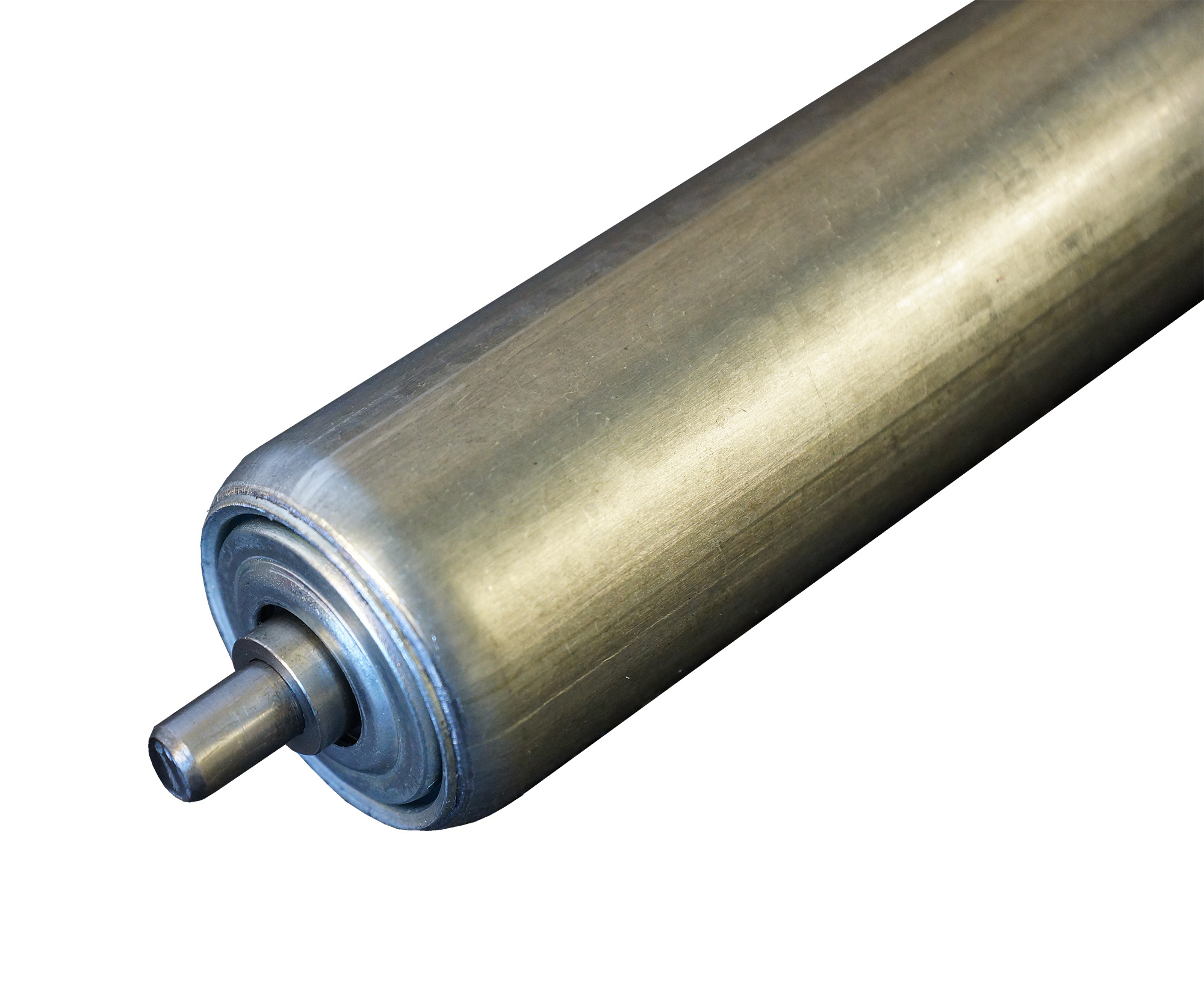

505 Galvanised Roller

Tube Diameter - 50 x 1.5mm Galvanised Steel
Bearing - Steel Precision (505)
Shaft Size - 8mm, 10mm, 11mm Hex or 12mm
Shaft Materials - Mild, Stainless Steel or Aluminium (11mm Hex only)

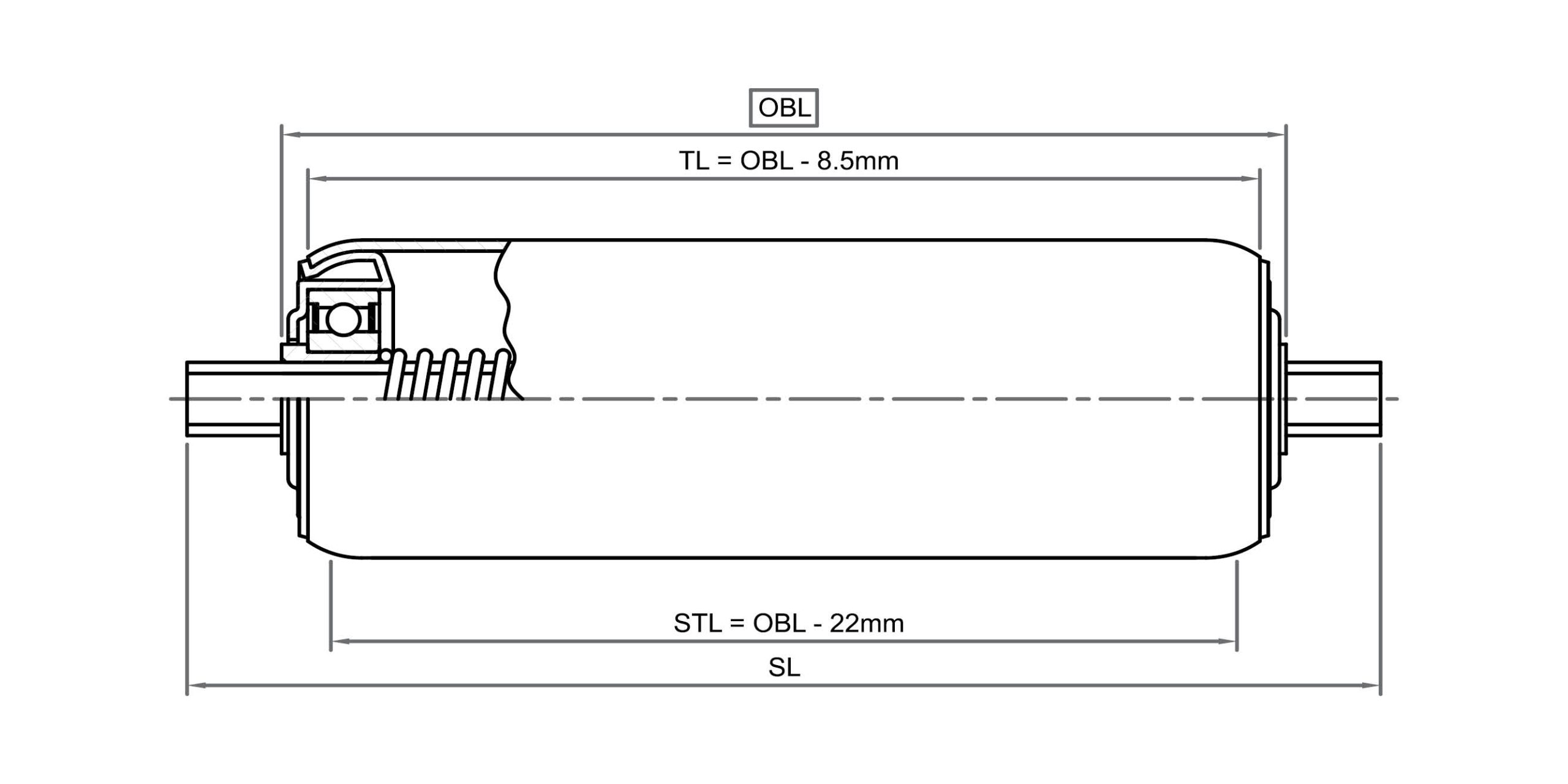

Roller Over Bearing Length (OBL) - Manufactured to suit your requirements, minimum roller length is 130mm OBL.

• Max. speed 70m/min.

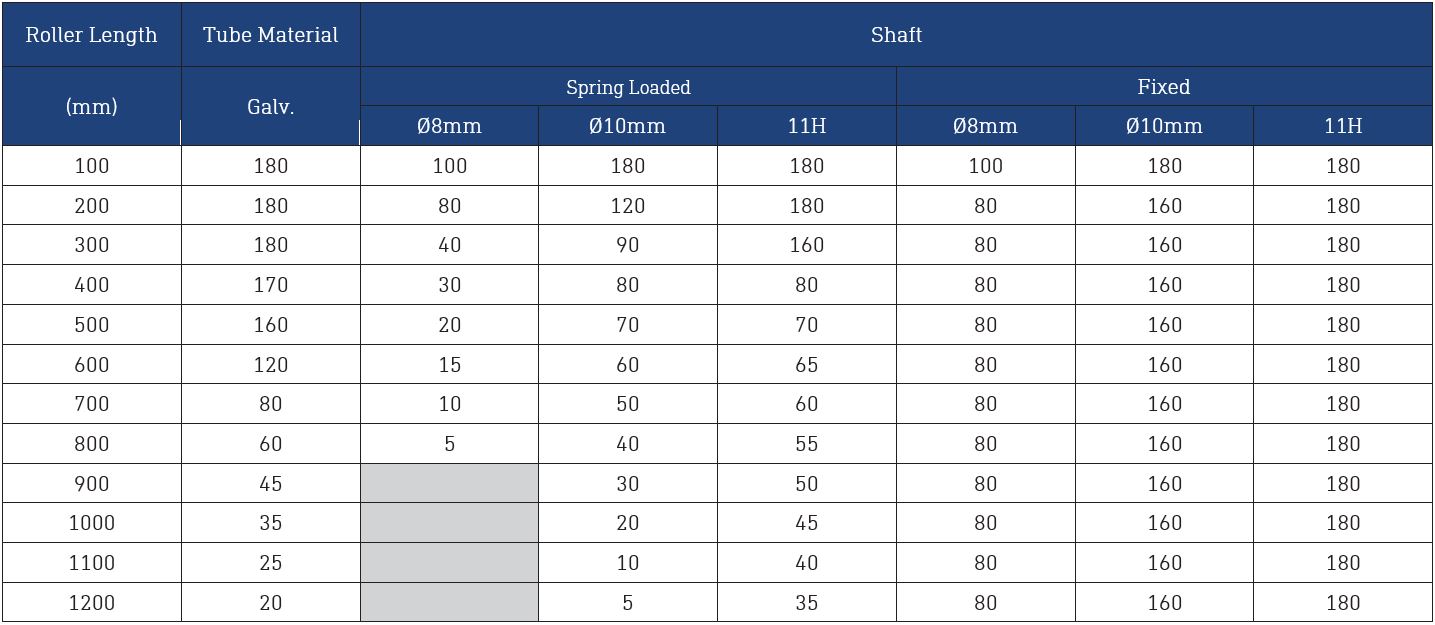

• Max. static load 150kg.
• For central point load, reduce load rating by 1/3.

Common uses;
- Gravity rollers where plastic housing is not applicable eg. high or low temperature.
