48mm Plastic Rollers

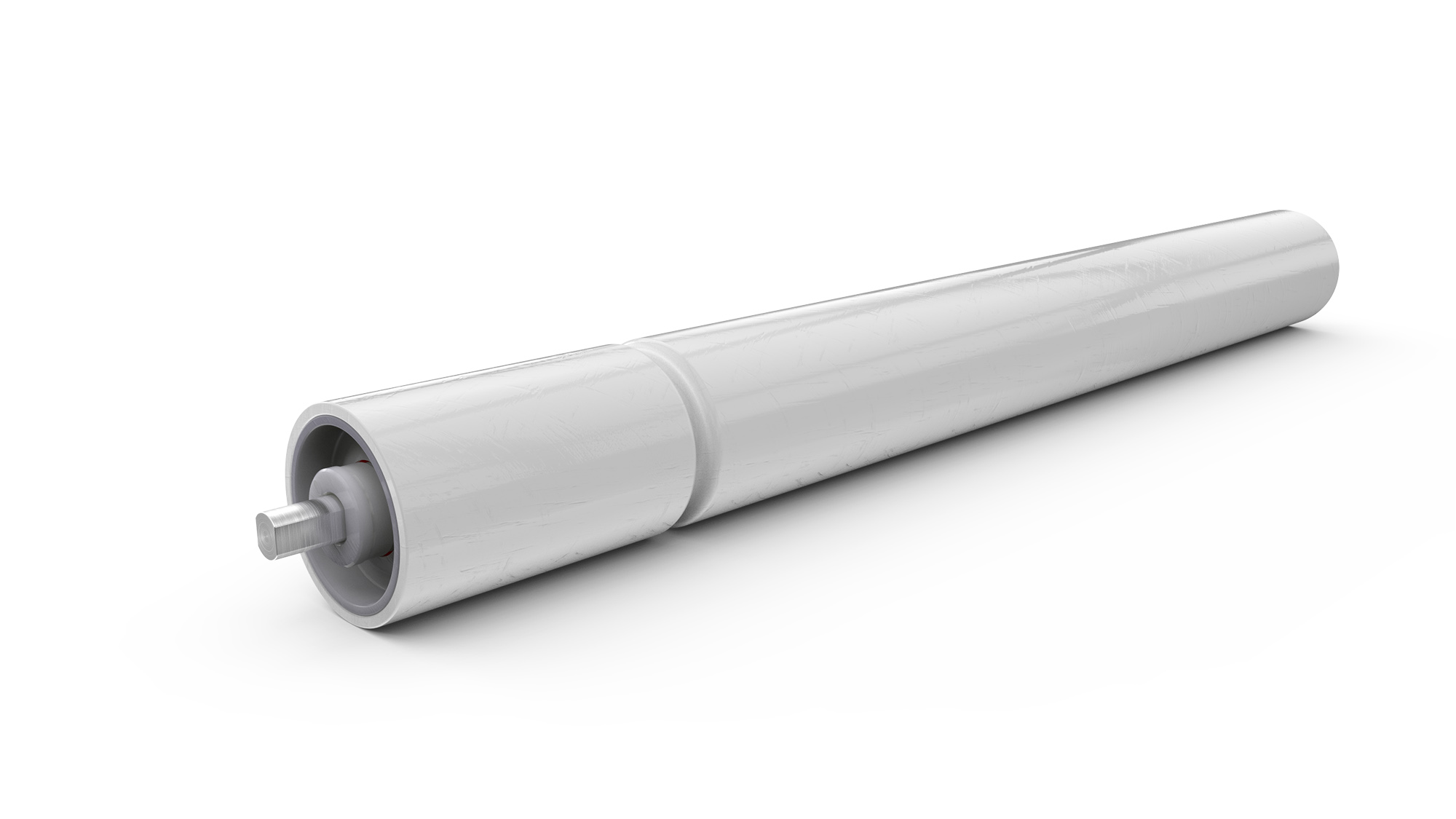

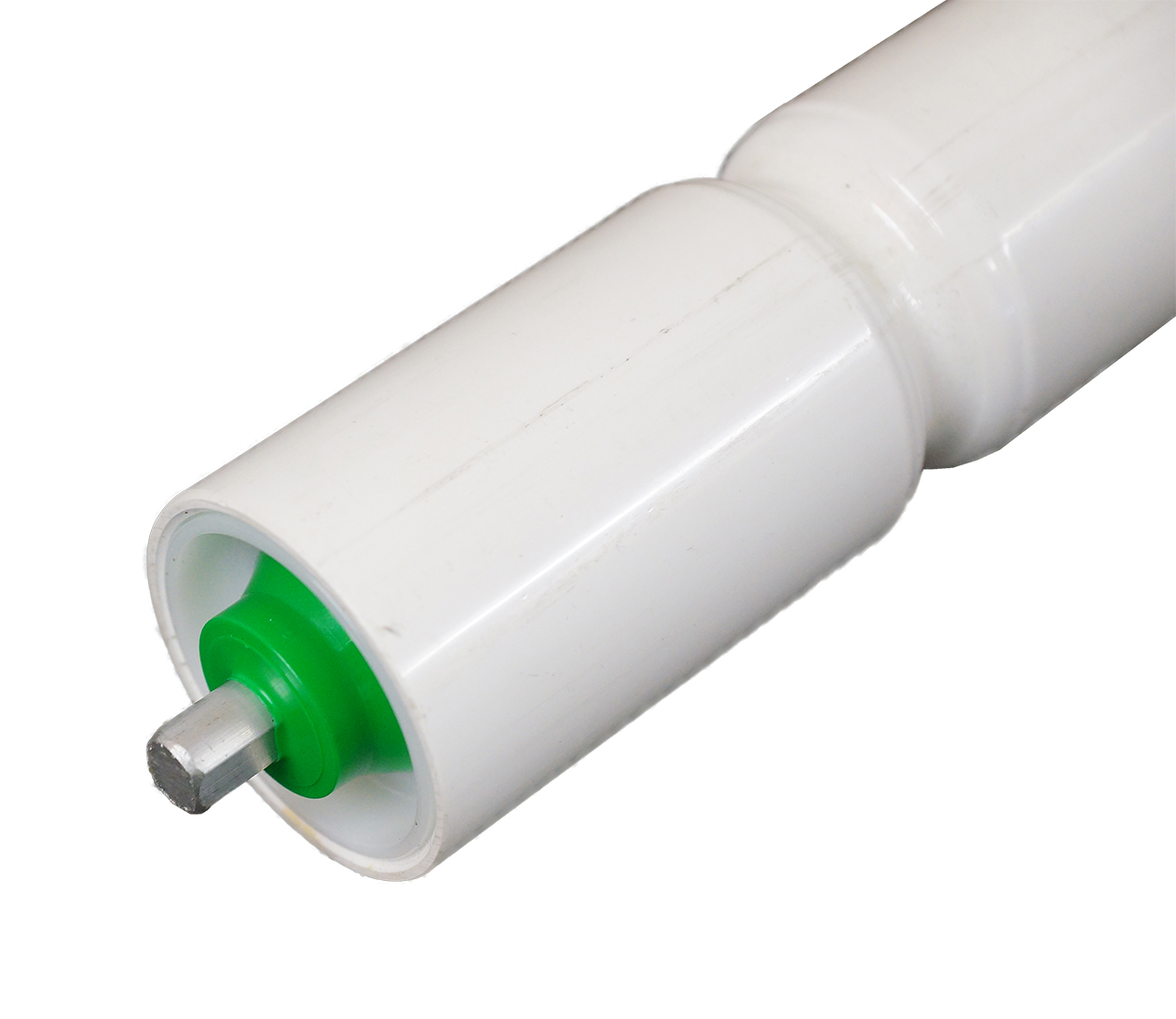

482 Plastic Roller

Tube Diameter - 48.3 x 2.8mm Dynopipe
Bearing - PVC with S/S Balls (482)
Shaft Size - 8mm, 10mm, Q (10mm with 8mm AF) or 12mm
Shaft Materials - Mild Steel, Stainless Steel or Aluminium (Q only)

• Max. speed 20m/min.
• Max. static load 18kg.

Common uses;
   - Gravity rollers
   - Light belt supports.
   - Line shaft driven roller.
   - General and food grade requirements.

Features, Benefits & Uses

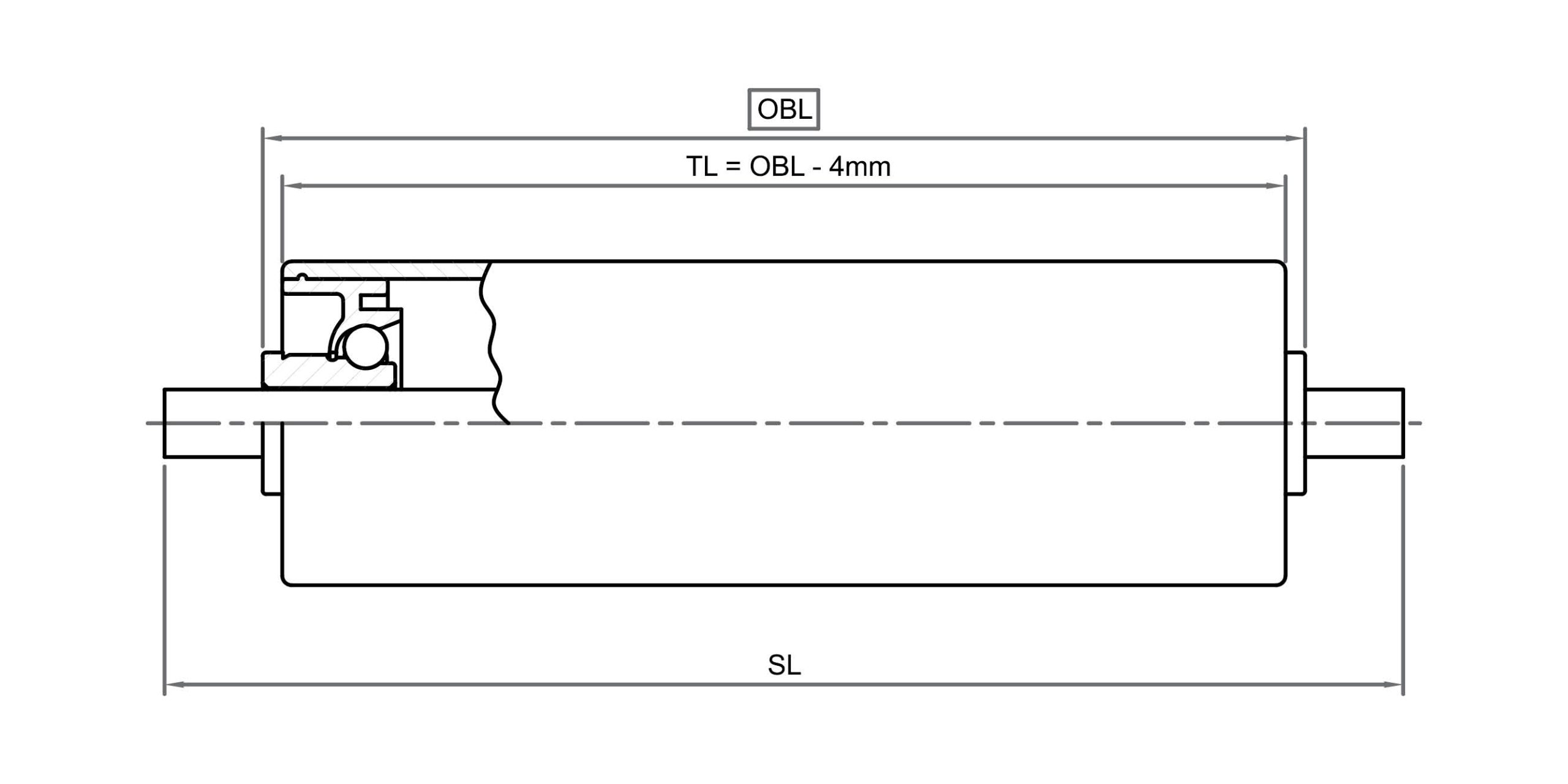

Specifications

• Load Rating kg (Minimum applies).

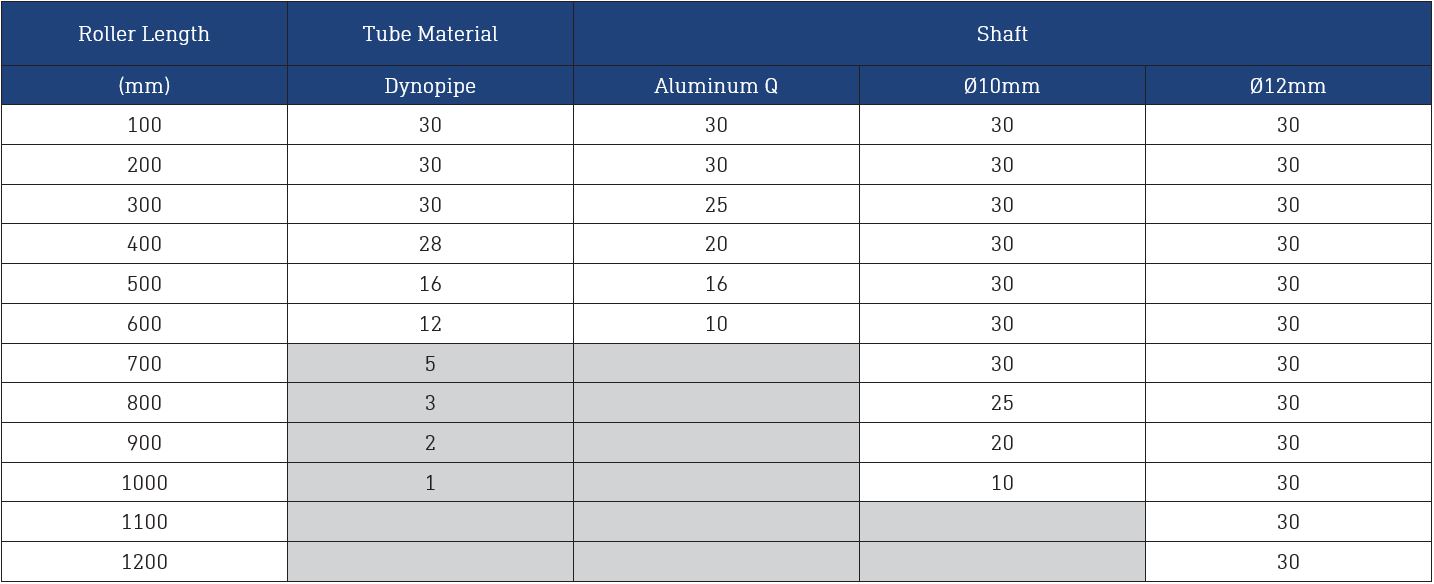

Dyno Conveyors 481 2 Plastic PVC Roller 48mm Diameter Roller Load Rating

* Shaded sizes not recommended
