Gravity Conveyor Rollers

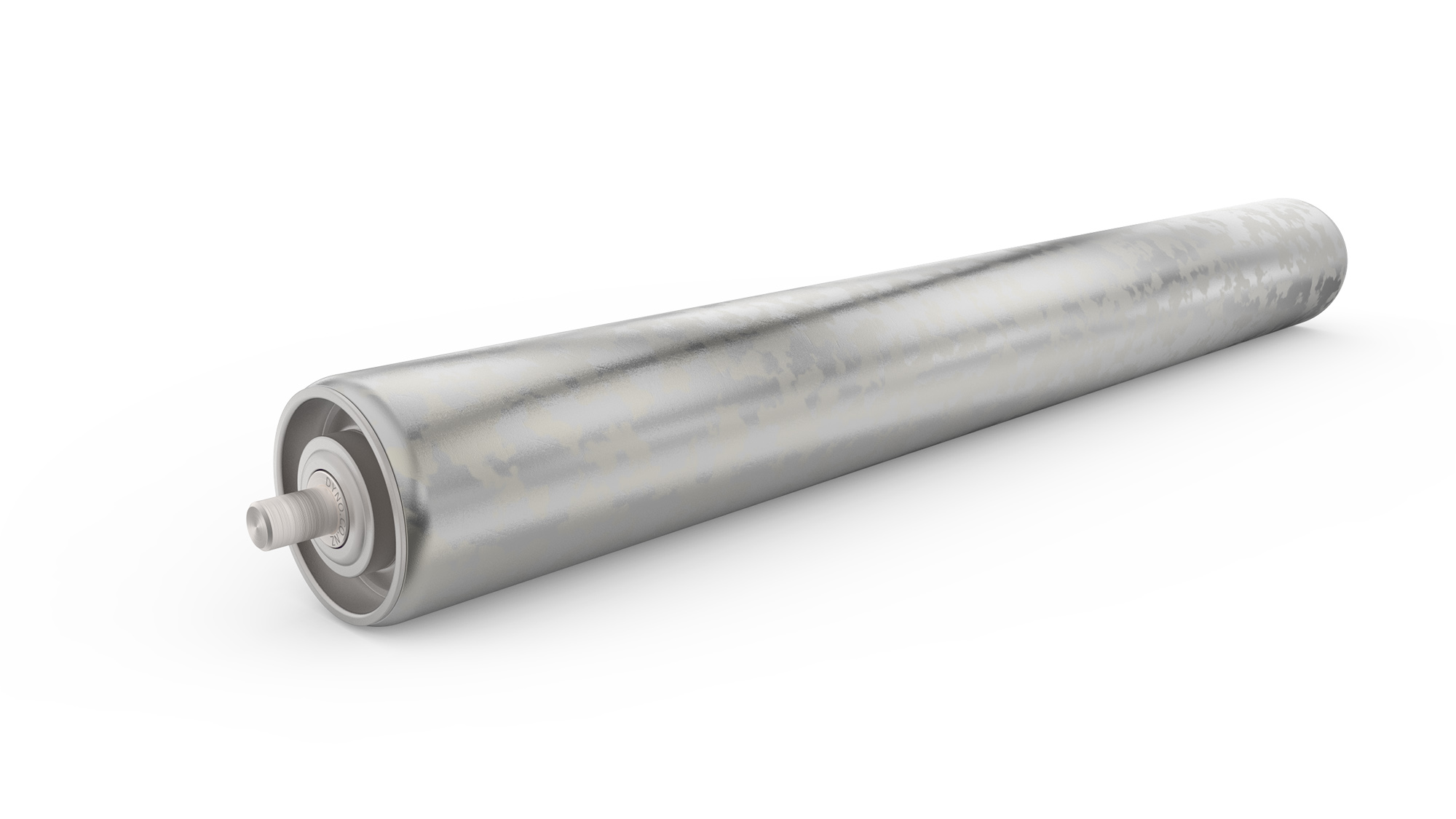

32mm Galvanised Roller

Tube Diameter - 32 x 1.5mm Galvanised Steel
Bearing - PVC Race with S/S Balls (322-8)
Shaft Size - 6mm, 8mm or 10mm
Shaft Materials - Mild or Stainless Steel

• Max. speed 9m/min.
• Max. static load 10kg.
• For central point load, reduce load rating by 1/3.

Common uses;
- Small packages
- Bagged products – meat etc.

Features, Benefits & Uses

Specifications

• Load Rating kg (Minimum applies).

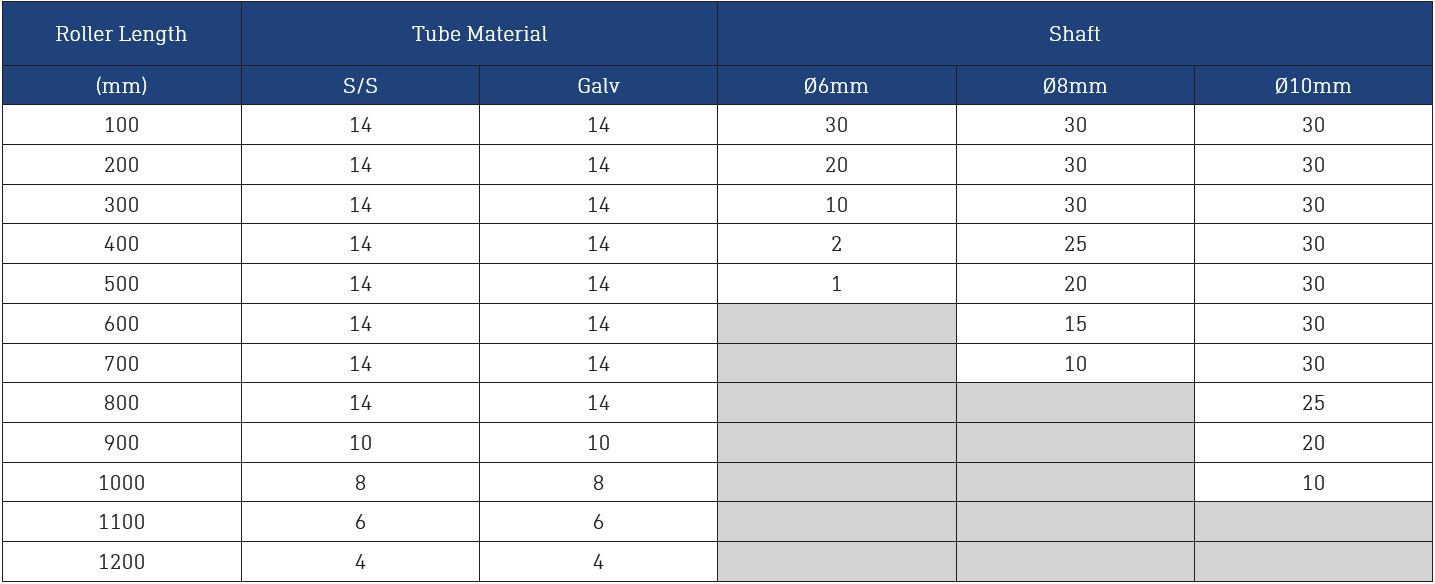

CAP Dyno Conveyors 322 Galvanized Roller 32mm Diameter Roller Load Ratings

* Shaded sizes not recommended

Downloads

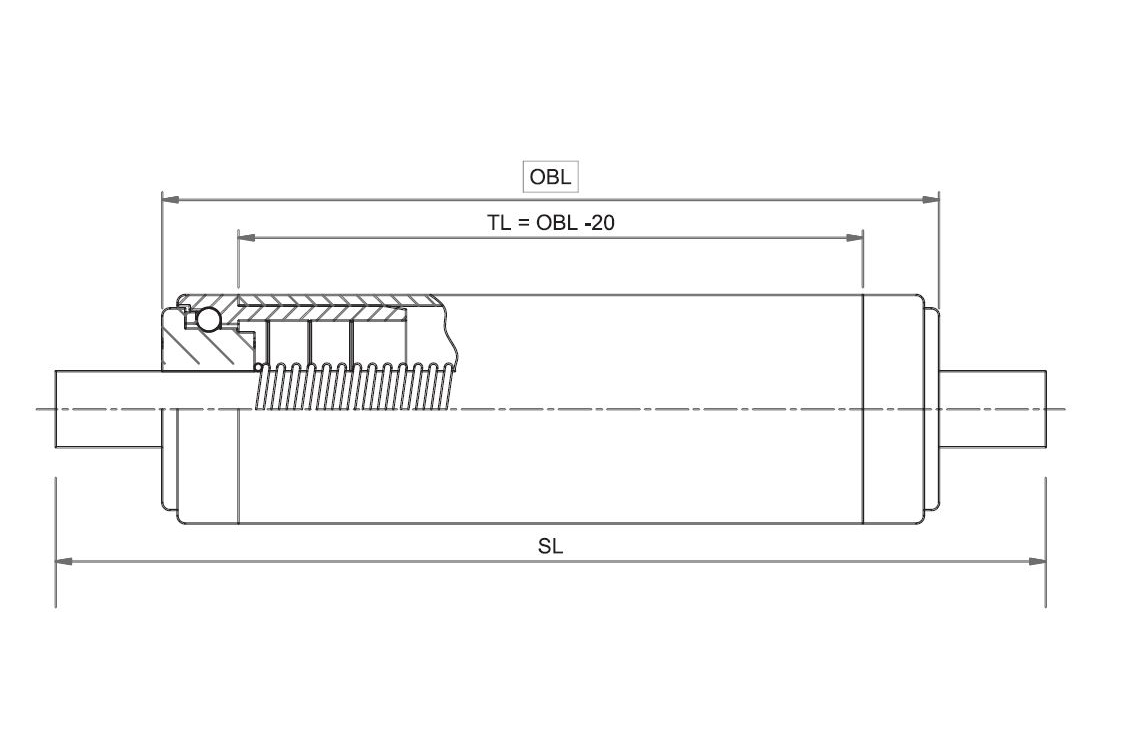

322 Roller Technical Information
