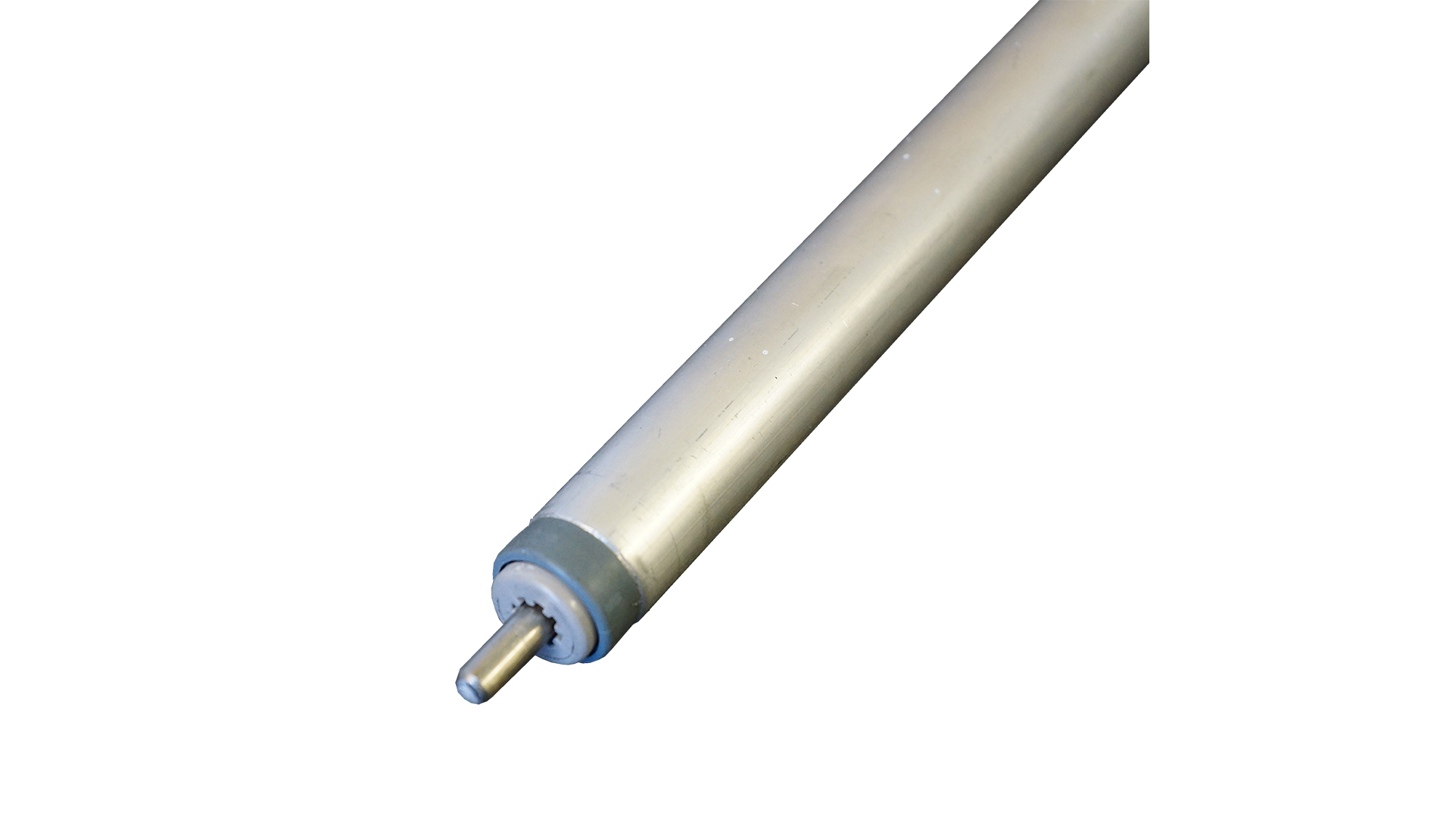

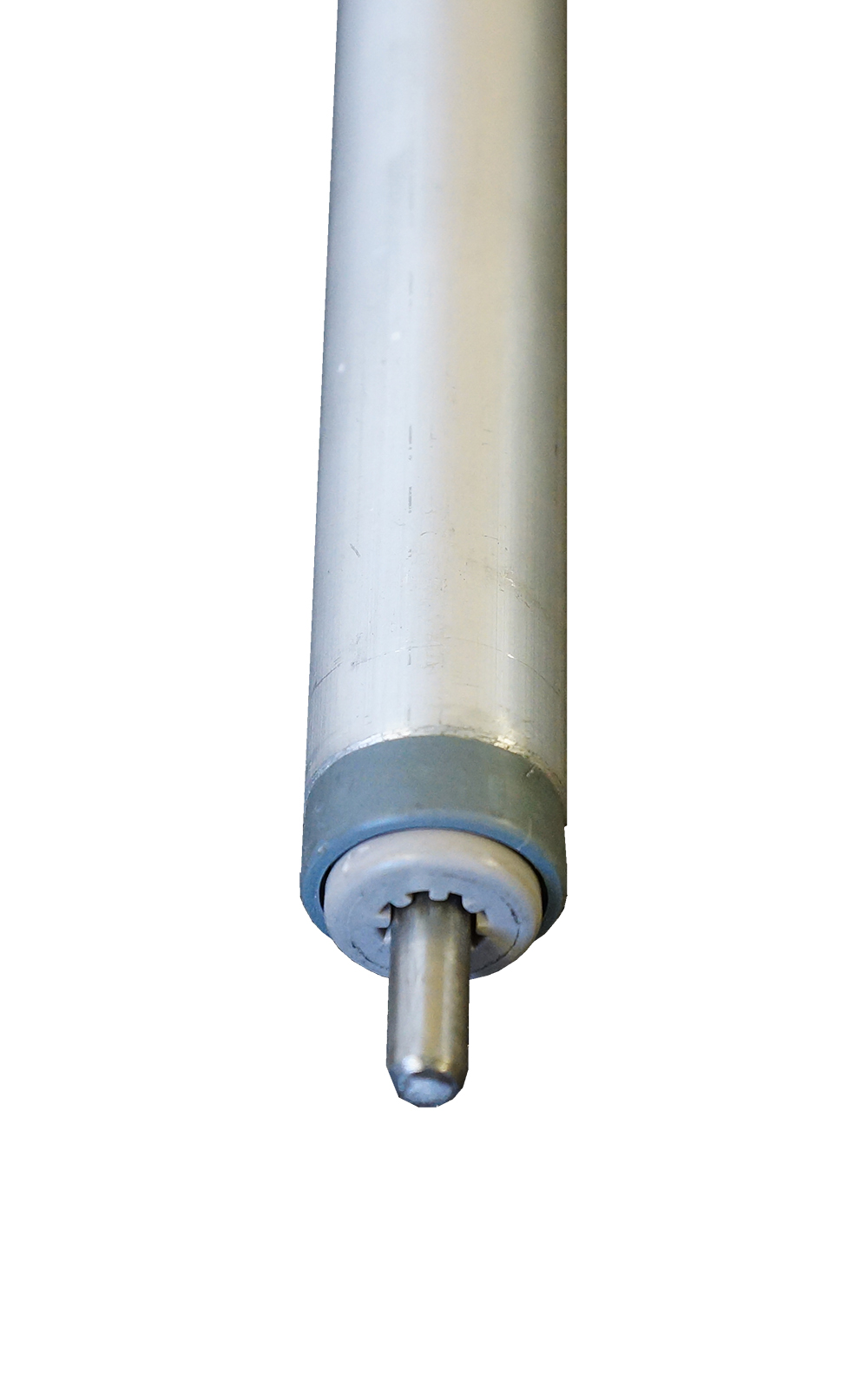

Tube Diameter - 20 x 1.6mm Aluminium Bearing - PVC Race with S/S Balls (202) Shaft Size - 6mm, 8mm or 10mm Shaft Materials - Mild or Stainless Steel
• Max. speed 9m/min • Max. static load 4.5kg • For central point load, reduce load rating by 1/3
Common uses; - Small packages - Bagged products – meat etc
"*" indicates required fields

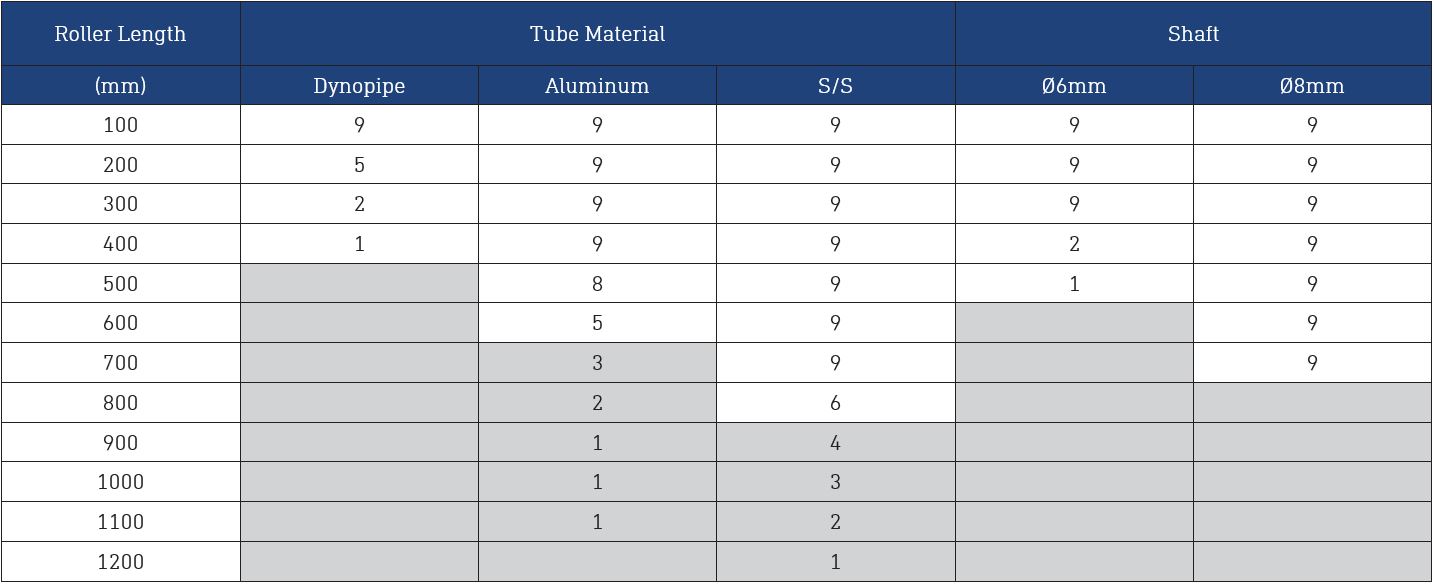

• Load Rating kg (minimum applies).
* Shaded sizes not recommended
