Motorised Rollers (MDR)

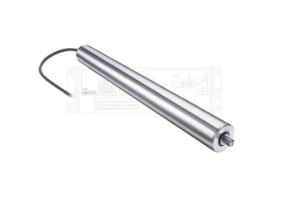

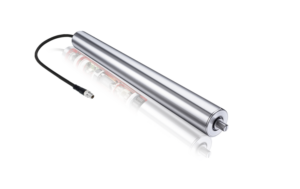

A Motor Driven Roller (MDR) is a key component for modular conveyor systems. It is essentially a roller with a compact, internal brushless DC motor that provides the power for movement. This design eliminates the need for external motors, gearboxes, and bulky drive chains or belts, making conveyors quieter, more energy-efficient, and simpler to configure into zones.

Model Diameter Controller Type Recommended Load / Application IP Rating Key Features
PM320HS 32 mm External Very Light to Light (Compact conveyors) IP65 Stainless steel, shortest roller on the market (from 170mm).
PM500VE 50 mm External Light to Medium IP54 / IP65 Standard 50mm model, separate control for optimised durability.
PM500FE 50 mm External Light to Medium (up to 300kg) IP54 / IP65 High performance, dynamic braking, compatible with advanced controllers.
PM500XE 50 mm Internal Light to Medium (up to 300kg) IP54 / IP65 Integrated controller for easy wiring (M8), rugged for dust/liquid.
PM500XP 50 mm Internal Light to Medium (High Start Torque) IP54 / IP65 High starting power for shuttles and trolleys, integrated control.
PM500XC 50 mm Internal Light to Medium (AS-i Bus) IP54 Integrated controller specifically designed for AS-i Bus networks.
PM605VE 60.5 mm External Light to Medium IP54 / IP65 Larger diameter for better belt traction or medium loads.
PM605FE 60.5 mm External Medium to Heavy (up to 500kg) IP54 / IP65 Robust 60.5mm tube, ideal for heavy distribution lines.
PM605XE 60.5 mm Internal Medium to Heavy (up to 500kg) IP54 / IP65 Integrated controller in a robust 60.5mm body, space-saving.
PM605XP 60.5 mm Internal Medium to Heavy (High Start Torque) IP54 / IP65 High starting power for heavy shuttles/trolleys, integrated control.
PM605KT 60.5 mm External Heavy Duty / Pallets (up to 1000kg) IP54 Most powerful 24VDC MDR, high torque for pallets and belt conveyors.
